Vaisala WS425FG User Manual
Page 32
User's Guide ______________________________________________________________________
30 ______________________________________________________________________________
0506-071

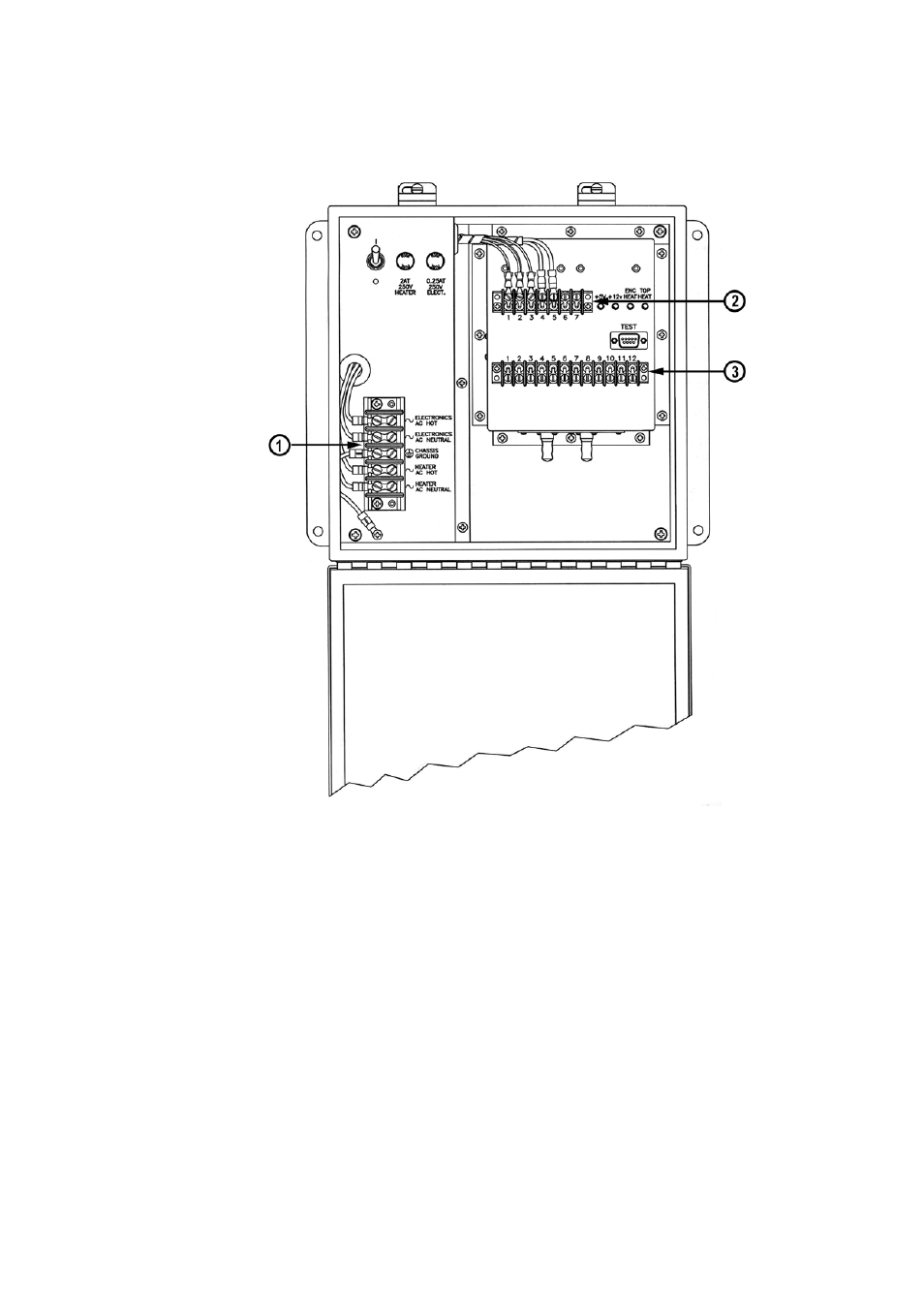

Figure 11
Power Supply Terminal Blocks
The following numbers refer to
Figure 11 on page 30
:
1
=
AC power terminal block
2
=
Terminal block 1 (TB1)
3
=
Terminal block 2 (TB2)
