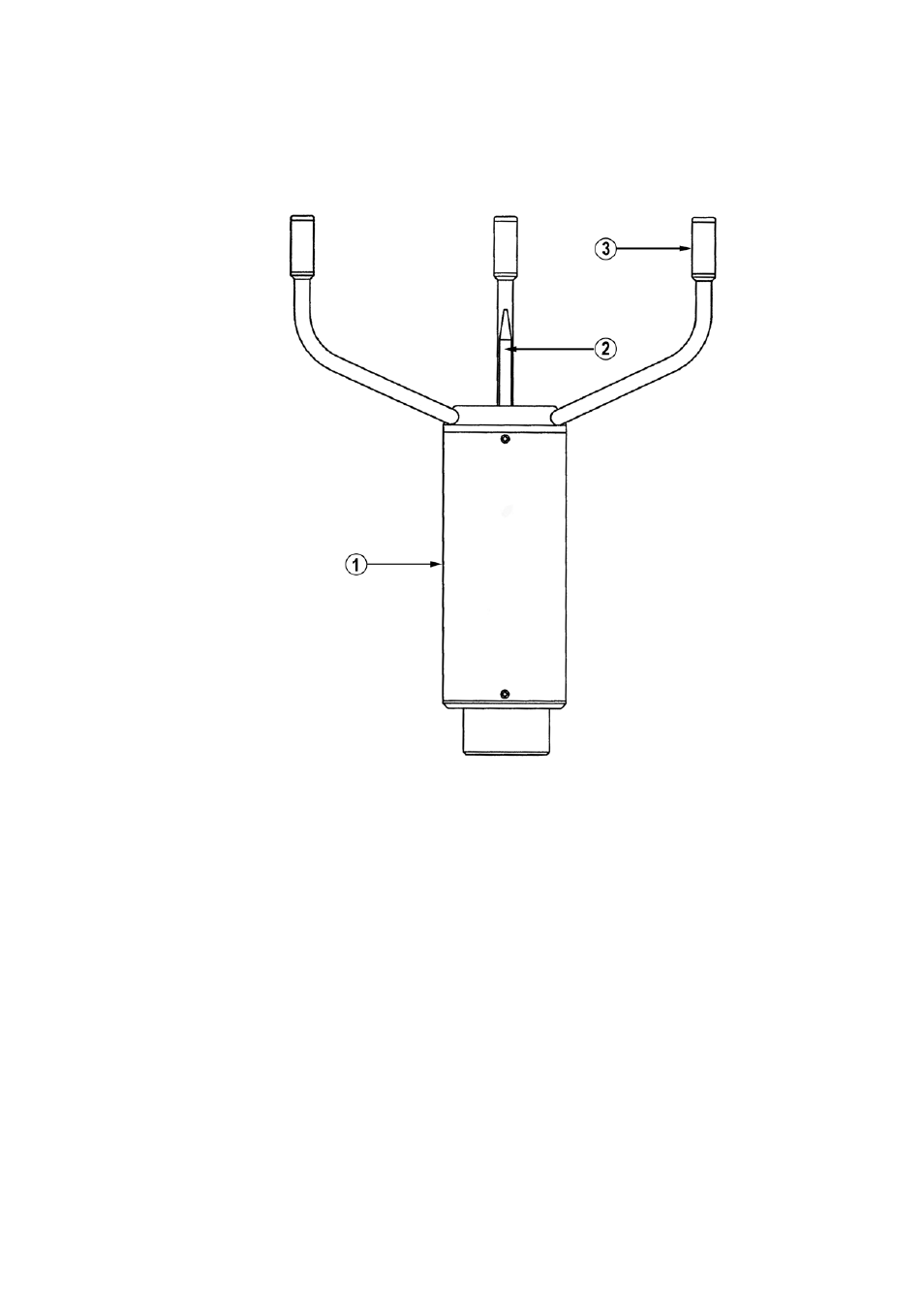

Figure 3
Schematic of Ultrasonic Wind Sensor WS425 F/G
The following numbers refer to
Figure 3 on page 18
:
1
=
Sensor body
2
=
Bird spike
3
=
Transducer (3 pcs)
