Vaisala WS425FG User Manual
Page 22
User's Guide ______________________________________________________________________
20 ______________________________________________________________________________
0506-012

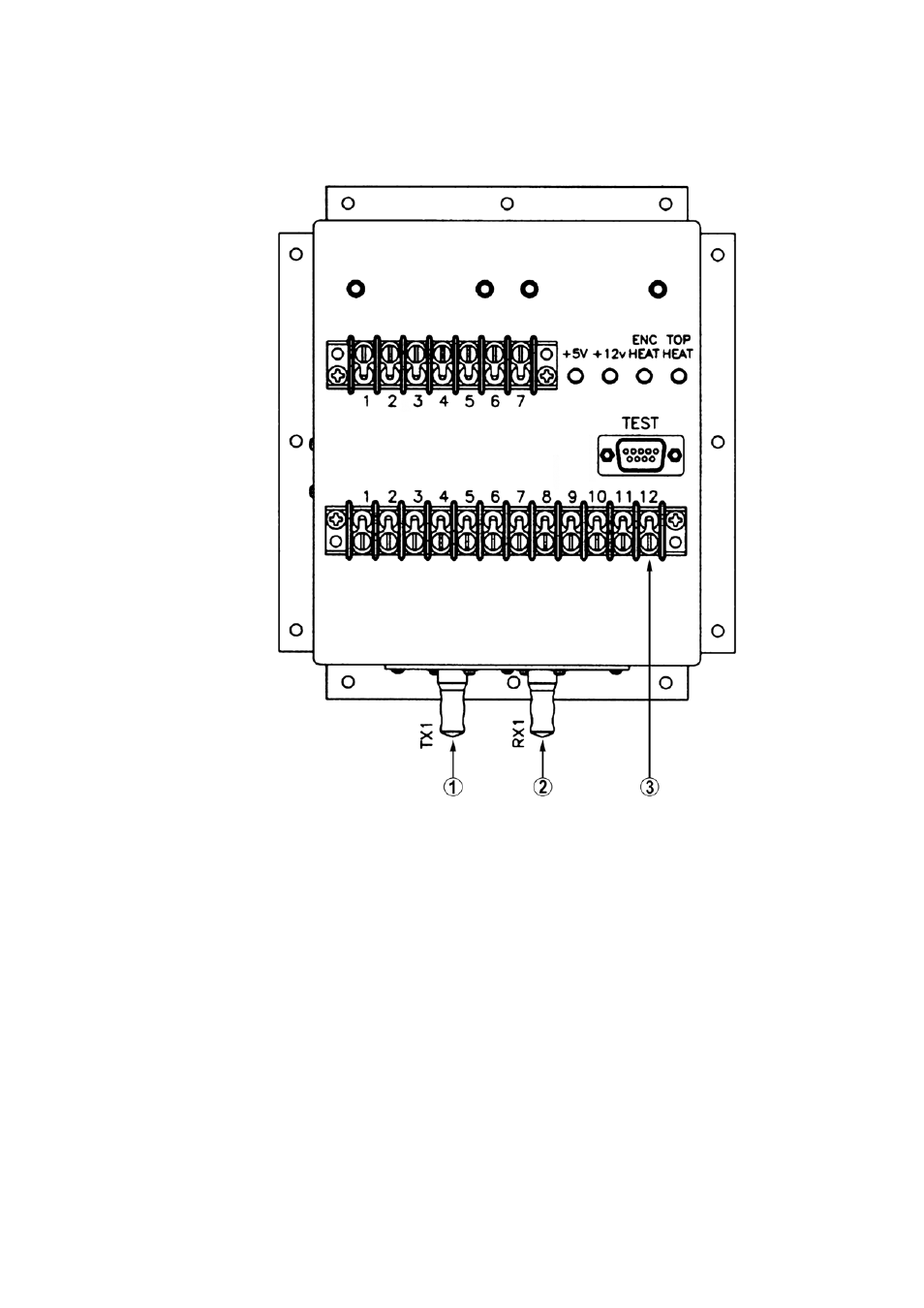

Figure 5
Power Supply and FOM Module Assembly
The following numbers refer to
Figure 5 on page 20
:
1
=
Fiber optic connector TX
2
=
Fiber optic connector RX
3
=
12-position terminal block (TB2, see also
Figure 11 on page
30
and
Table 2 on page 31
)
