Text Boxes, Text Labels, and Groups
A text box displays the latest value of an observation variable. An empty
text box indicates that no data has been received. If AWS has been
unable to measure or calculate the value, a missing data symbol ('///') is
shown.
If measurement timeouts are being used, text boxes turn gray if no new
data is received within the timeout period.
If an alarm is active, the text box background is shown in yellow.
Text label is a fixed string shown on the screen. Text boxes and labels
have been organized into groups to help navigation within the display.
1012-045

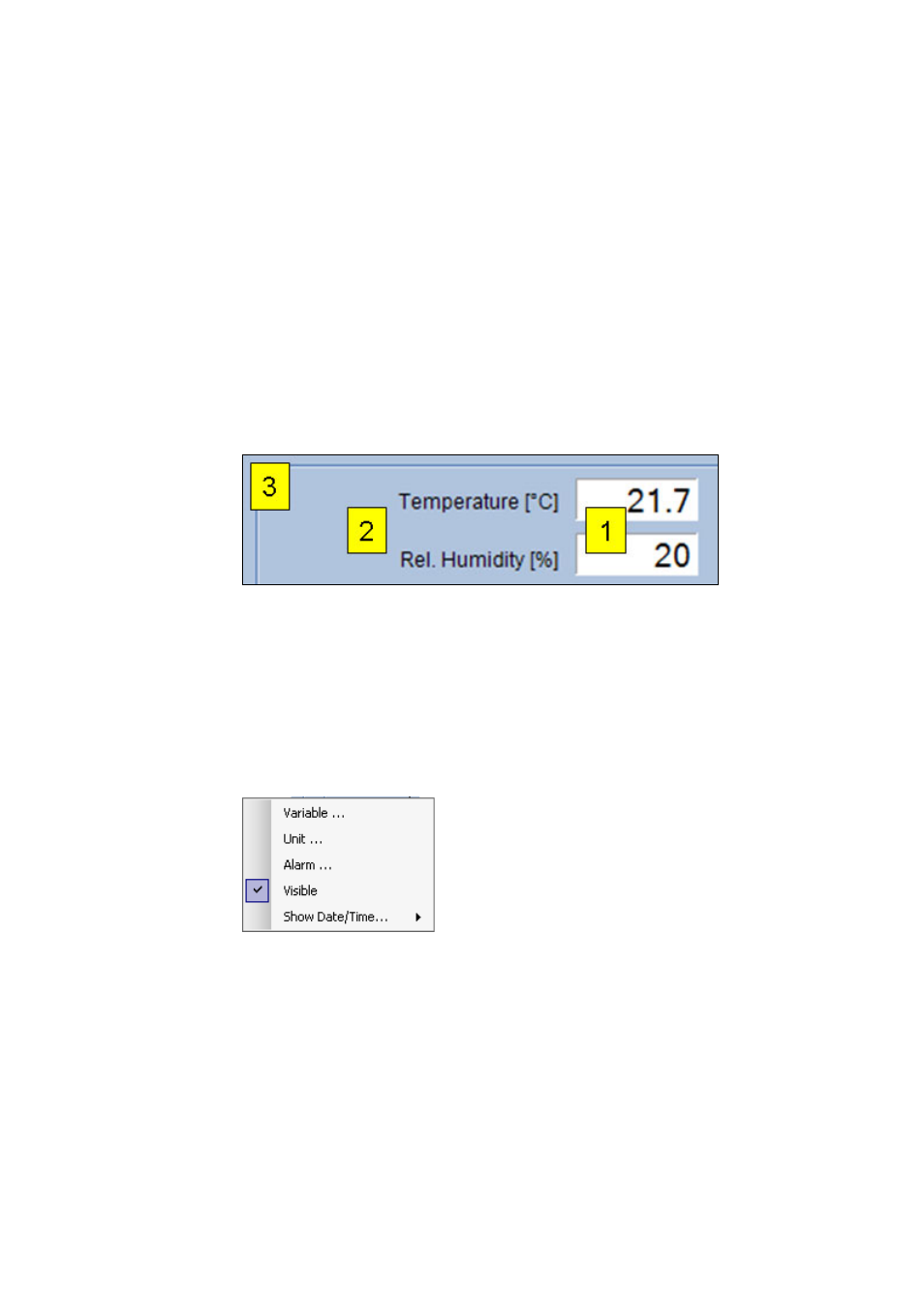

Figure 3 Text Boxes (1), Labels (2), and Enclosing Group (3)
Text Box Settings
All text box configuration settings can be accessed by right-clicking the
mouse on the box. Note that some settings are available to the
administrator only.
1012-046
Figure 4 Text Box Settings
Variables: Selects the variable to display in the text box. Requires
logging in as administrator.
Unit: Configures automatic engineering unit conversion for the displayed
variable. Note that the conversion has only effect within the text box.
