AP2400R Hardware Reference Guide 35
SCSI Hard Disk Drives
The system comes with three externally accessible SCA hard drive
bays on each side to make a total of six.

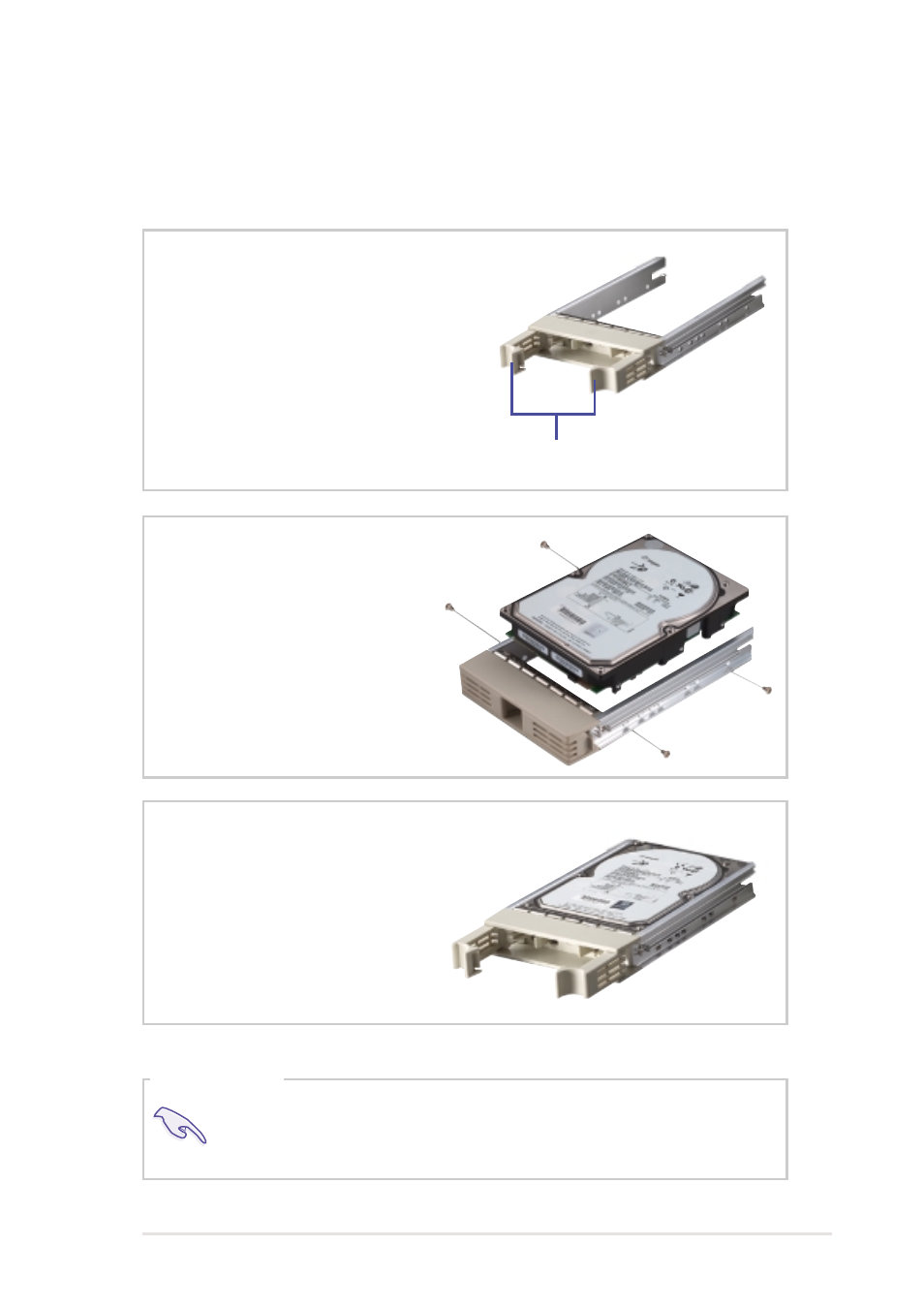

Hot-Swap Drive Tray
In each of the HDD bays is a hot-swap
tray for mounting a hard disk drive. Flip
open the tray levers to release the tray,
then slide the tray out of the chassis.
SCSI HDD Mounting
Place the SCSI hard disk drive to
the hot-swap tray and secure it
with four screws as shown.
HDD Installation
After the drive is secured to the tray, carefully
insert the drive into the bay, then push
the levers back in place.
Make sure that the SCSI cable is connected to the motherboard
and the backplane. Refer to the section “Connecting Cables”.
IMPORTANT
Tray Levers
