Page 33
AP2400R Hardware Reference Guide
33

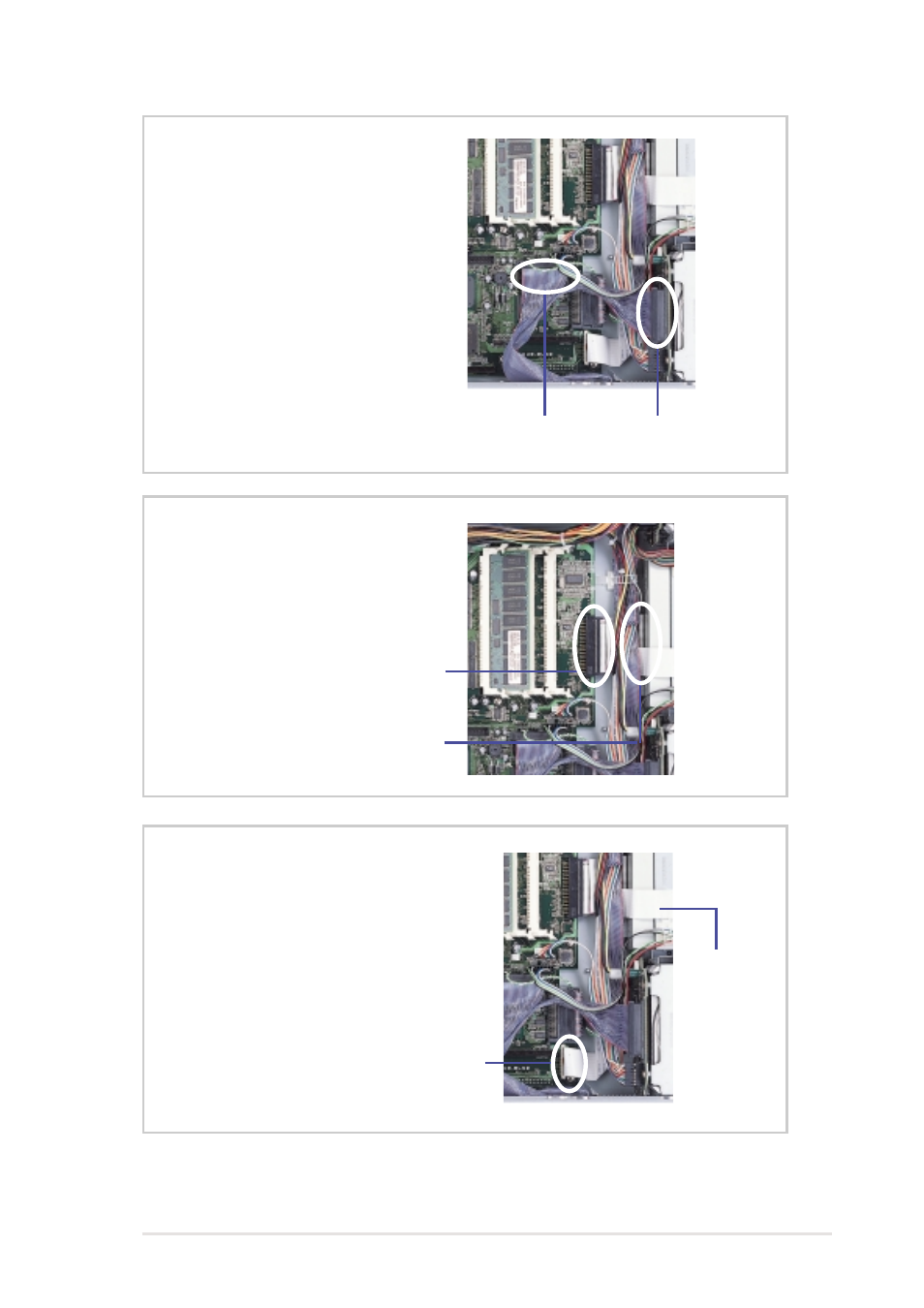

Connecting Cables
SCSI Cable
Connect the 68-pin SCSI cable to
the SCSI connector on the
motherboard and the other end to
the SCSI In connector on the
backplane board.
SCSI Connector on
the Motherboard
SCSI Connector on
the Backplane
IDE Cable
Connect the IDE cable directly to
the CD-ROM drive connector.
Motherboard
IDE Connector
Floppy Cable
Connect the floppy cable directly
to the floppy drive connector. The
slim-type floppy drive uses a flat
ribbon cable. It does not use the
standard floppy drive cable.
Motherboard Floppy
Drive Connector
CD-ROM IDE
Connector
Floppy Drive
Connector
