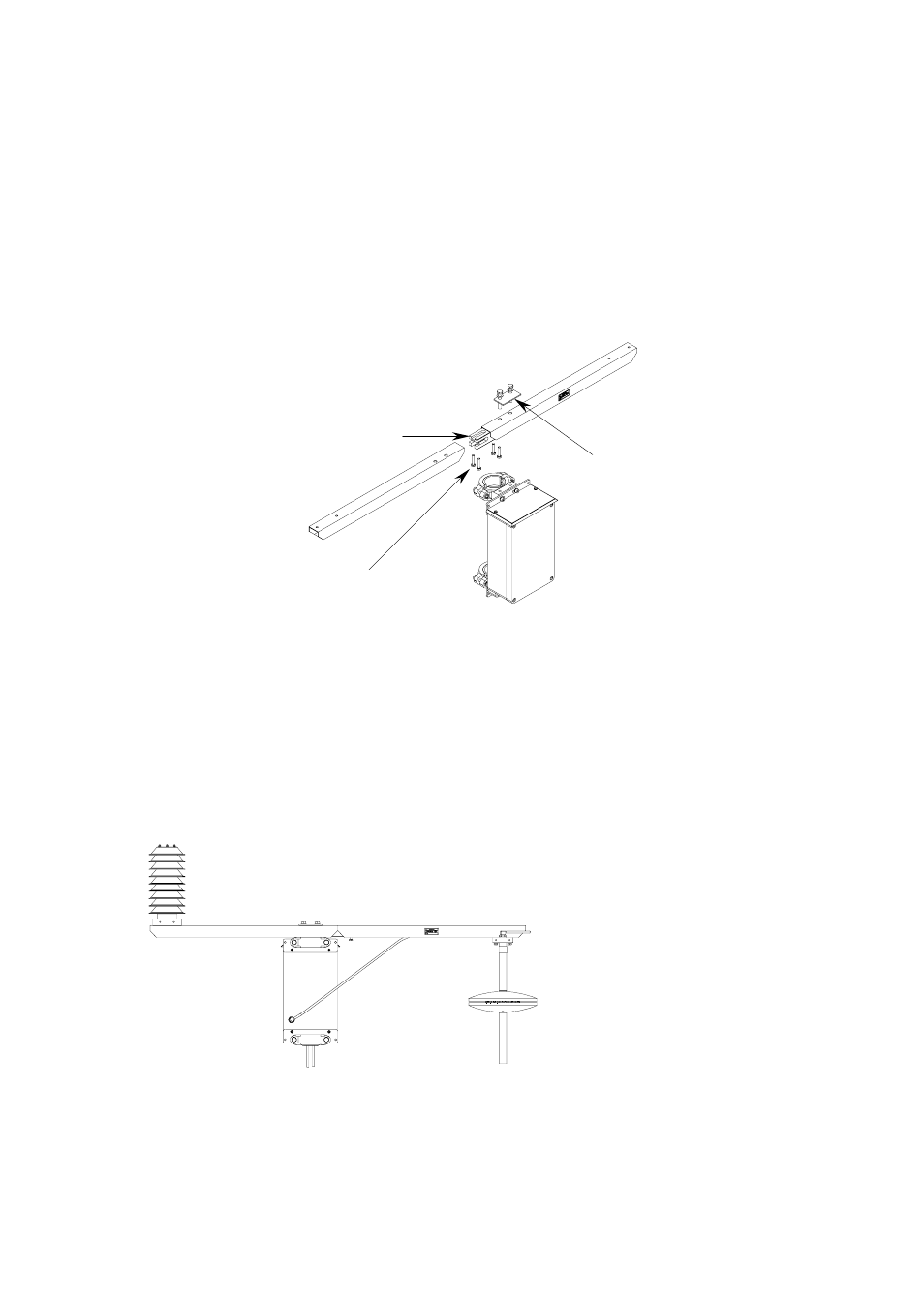

Installation when static pressure head is on the
left side
4.Mount the radiation shield
as instructed on page 5.
5. Mount the static pressure
head and thread the pressure
hose as instructed on page 6. 2 Join the two
support arms by
using two screws.
3.Mount the support arm on
the upper clamp. Fasten it by
using the plate, two hex bolts
and washers for the
attachement as shown in the
figure.
6. Connect the free end
of the pressure hose to
the hose coupling on
backside of the
transmitter box.
Note! the tube shall not
hang loose. This is to
prevent the condense
water block the tube as it
freezes.
1. Insert the boom adapter
into on support arm. Fasten it
with two screws.
Boom adapter
