U SER ' S G UIDE _______________________________________________________________________
6 ___________________________________________________________________ N OVEMBER 2001

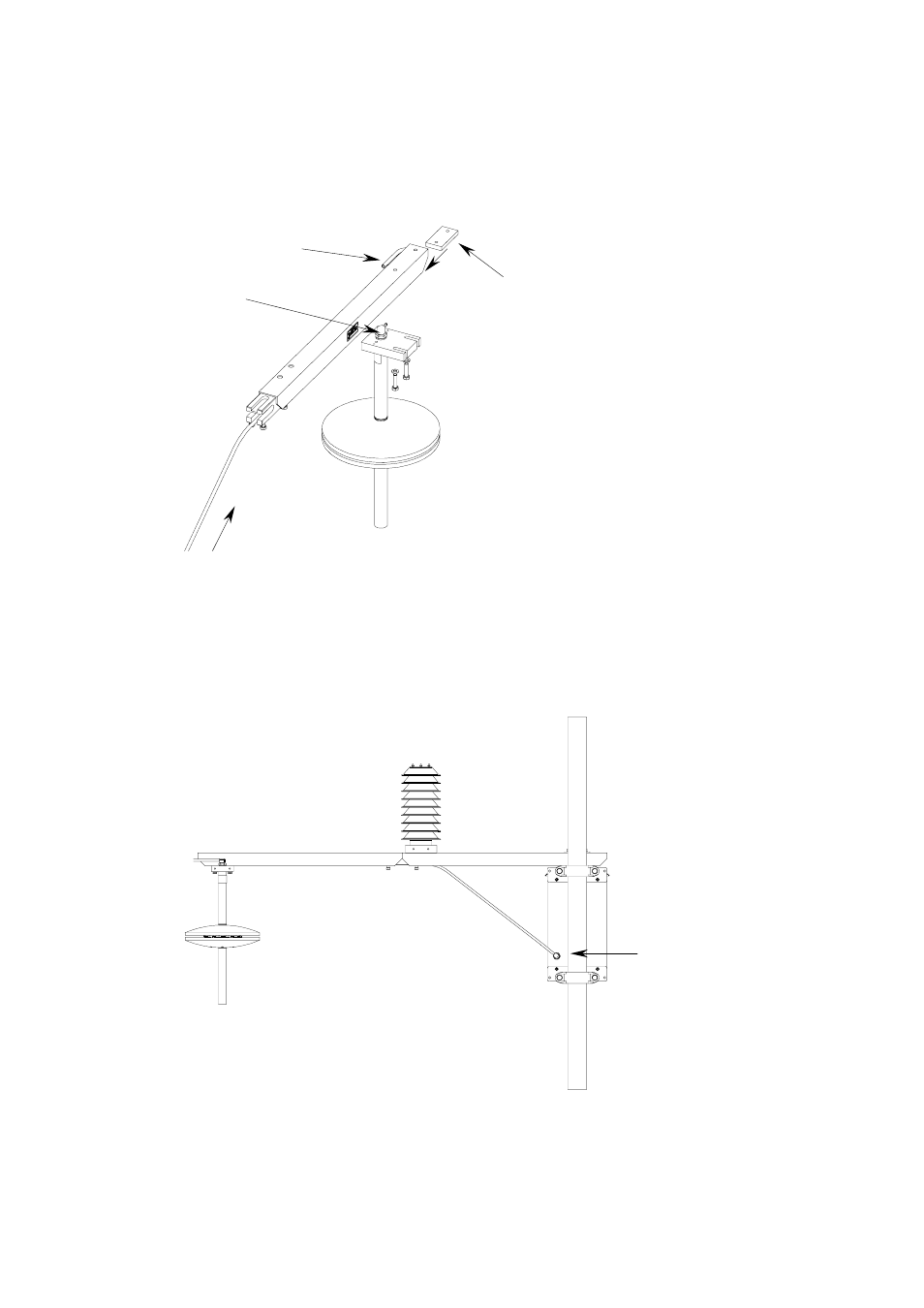

8.Push the installation plate
into the support arm.
6.Thread the pressure
hose through the
support arm.
9.Fasten the static pressure
head to the end of the support
arm (and installation plate) by
using the two screws.
7.Attach the pressure hose
end to the threaded nipple of
the pressure head.
Threaded
nipple.
10. Connect the free end
of the pressure hose to
the hose coupling on
backside of the
transmitter box.
Note! the tube shall not
hang loose. This is to
prevent the condense
water block the tube as it
freezes.
