U SER ' S G UIDE _______________________________________________________________________
4 ___________________________________________________________________ N OVEMBER 2001
CHAPTER 3
PTU200MIK1 INSTALLATION
Plastic bag (2 pcs.) include:
Clamp for pole mounting
Plastic fitting ring
Hex bolt (2 pcs.) M8x40 DIN 931
Washer (2 pcs.) A 8.4 DIN 125
Hex nut (2 pcs.) M8 DIN 934
Allen screw (2 pcs.)
M6x12 DIN 912

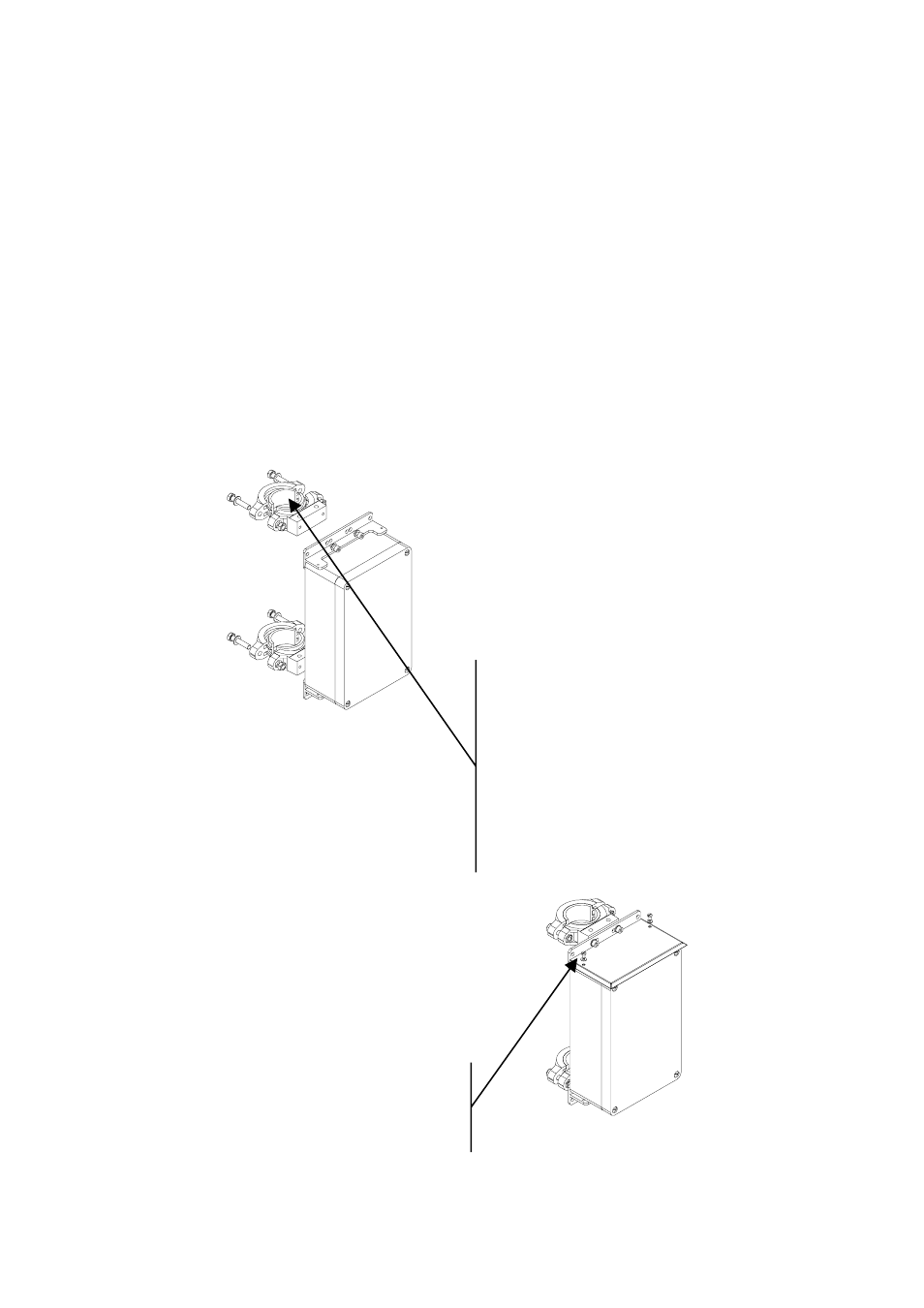

Attach the clamp with the machined side
up to the T-profile with the two Allen
screws.
There are three possible positions: left,
centered, right.
Pole diameter:
- Clamps with the fitting ring
2"(-1/8")
- Clamps without the fitting ring
60 (-5 mm).
Place the cover plate on
the transmitter box and
fasten it with the two slot
headed screws.
Plastic bag includes:
Cover plate
Slot headed screw (2
pcs.) M4x6 DIN 84
Washer (2 pcs.)
A 4.3 DIN 125
