HMI41 Calibration Option
Operating Manual
19116ZZ-U218en-1.1
6 1996-08-29
set Lo
T
T °C
°C

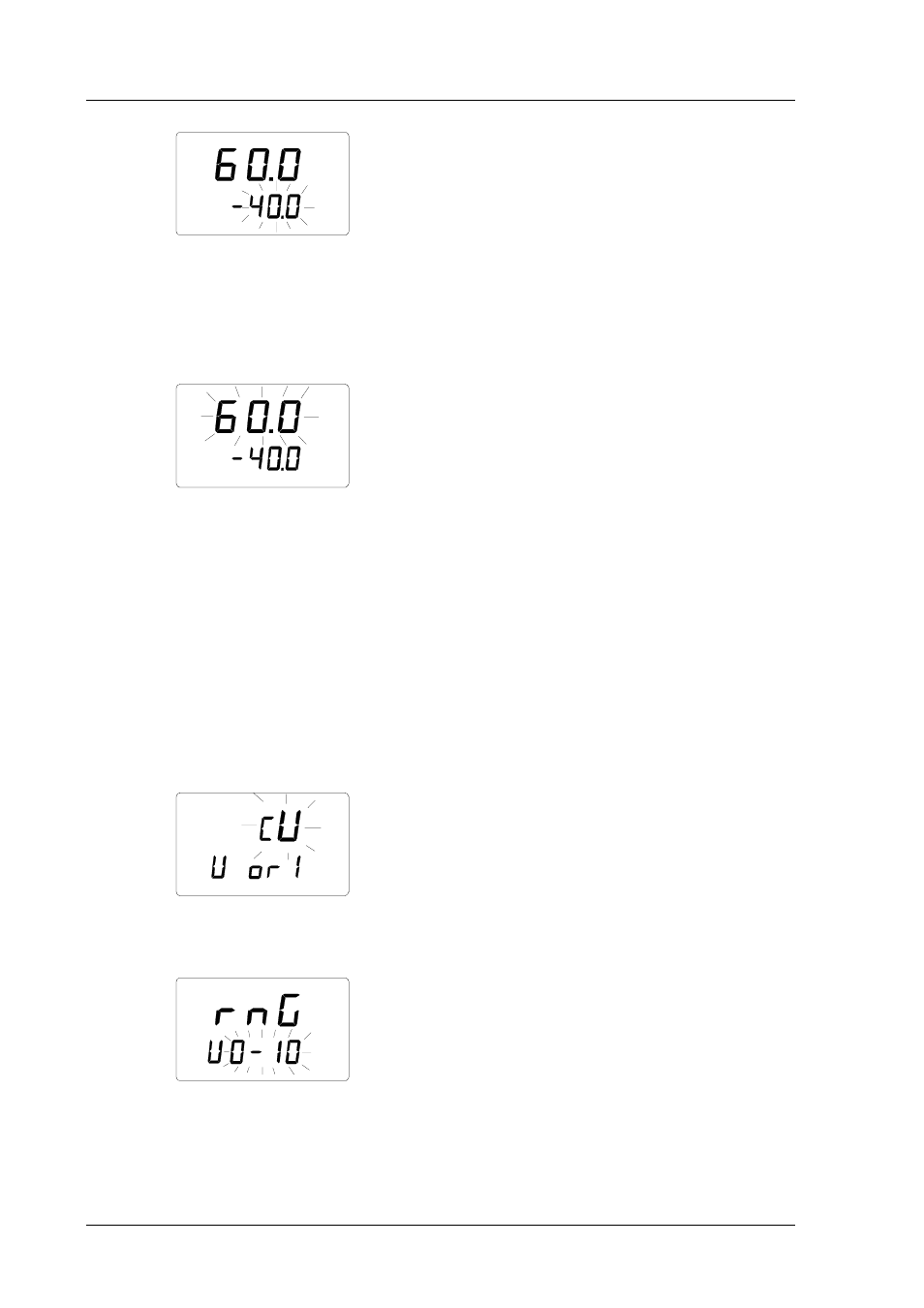

Numbers on the second line are blinking. They indicate the lower limit of the
transmitter’s temperature range currently stored in the HMI41 memory. Text
in the lower righthand corner is Lo. You can now set the lower limit with
buttons ▲ (number up) or ▼ (number down) to correspond to that of the
transmitter. Acknowledge the setting with ENTER:
set Hi
T
T °C
°C
Numbers on the first line start to blink. They indicate the upper limit of the
transmitter’s temperature range currently stored in the HMI41 memory. Text
in the lower righthand corner is Hi. You can now set the upper limit with
buttons ▲ (number up) or ▼ (number down) to correspond to that of the
transmitter. Acknowledge the setting with ENTER and turn the HMI41 off
with the ON/OFF button. You can now calibrate the transmitter (see Chapter
3).
2.3.3 Customized voltage output selection mode (cU)
The customized voltage output selection mode (cU) is selected when the
scaling of the RH, T and/or voltage range is not a standard one.
Select the cU selection mode with buttons ▲ or ▼ and acknowledge the
selection with ENTER. A text similar to the following is displayed:
RH
set
