5
5- Adjust the Readout

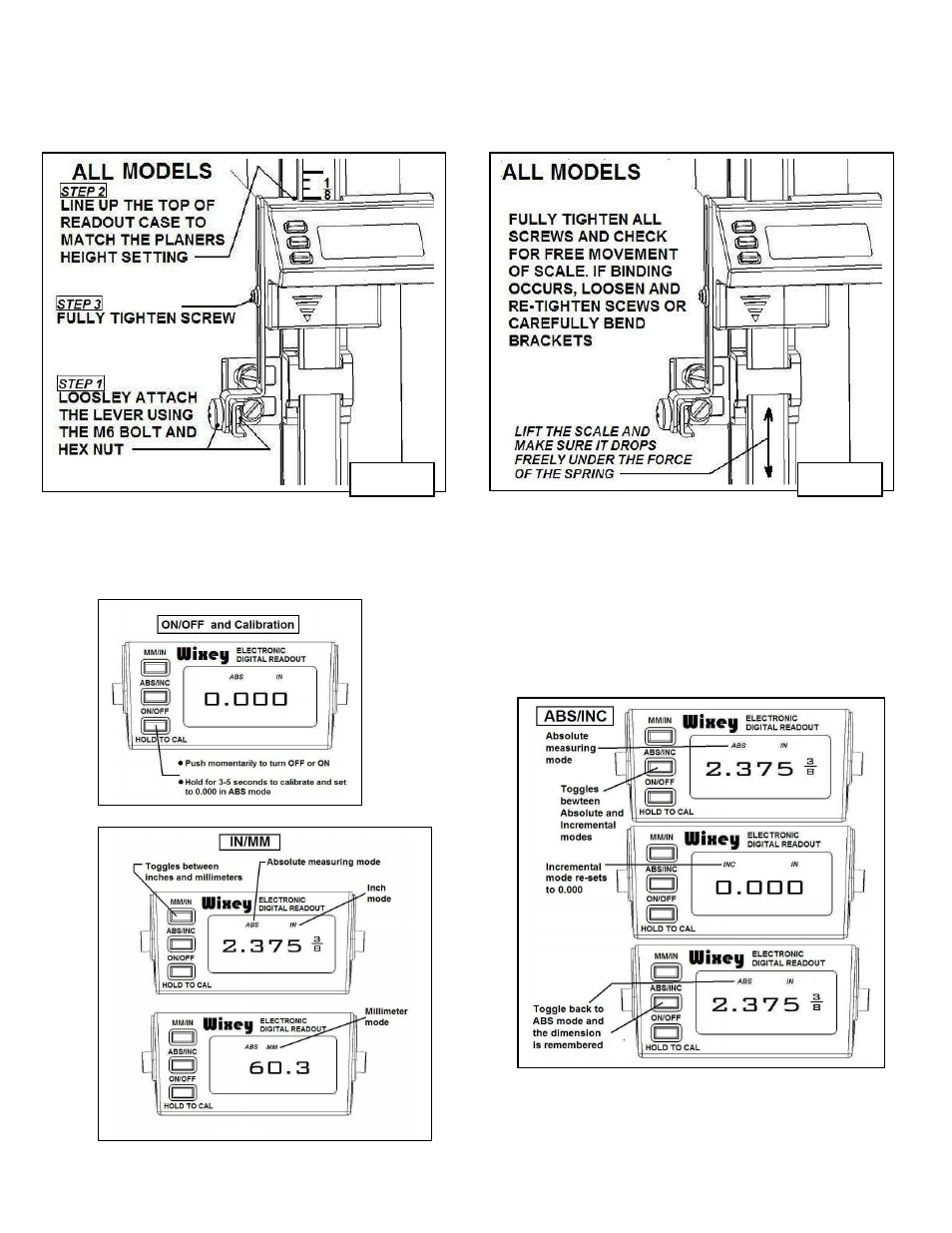

Adjust the position of the readout as shown in FIG 17 and FIG 18.
Note: If the scale does not slide freely after following the steps in FIG 18, refer to Trouble shooting in section
10
6- Readout operation
FIG 17 FIG 18
