Wixey WR510 Type 2 PLANER READOUT User Manual

Page 4

Text mode
Original mode

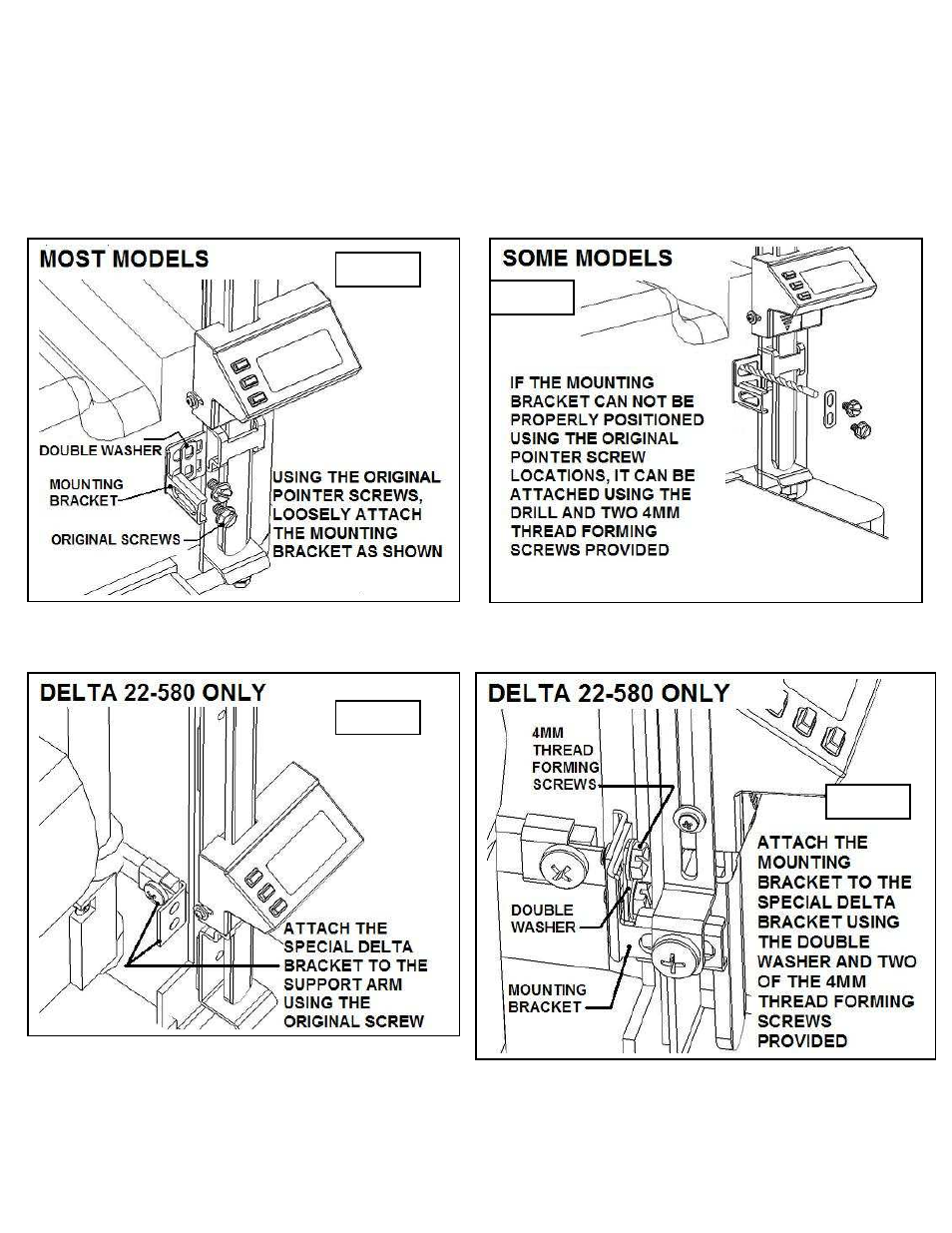

4- Attach the mounting bracket to your Planer

For most models you can attach the mounting bracket where the original pointer was located using the original
screws as shown in FIG 13. If this is not possible or the original pointer location does not locate the mounting
bracket in the proper position refer to FIG 14.

To attach the mounting bracket to the Delta model 22-580 use the special Delta bracket supplied with the
WR510 kit and attach it as shown in FIG 15 and FIG 16.

FIG 13

FIG 14

FIG 15

FIG 16
