Wixey WR510 PLANER READOUT User Manual
Wixey
1
Wixey
PLANER READOUT
MODEL WR510
INSTRUCTIONS
1- Prepare your Planer
If your planer has preset depth stops, lower the cutter head until it contacts any one of the stops. If it does not
have a preset stop, lower it as low as it will go which is usually 1/8”.

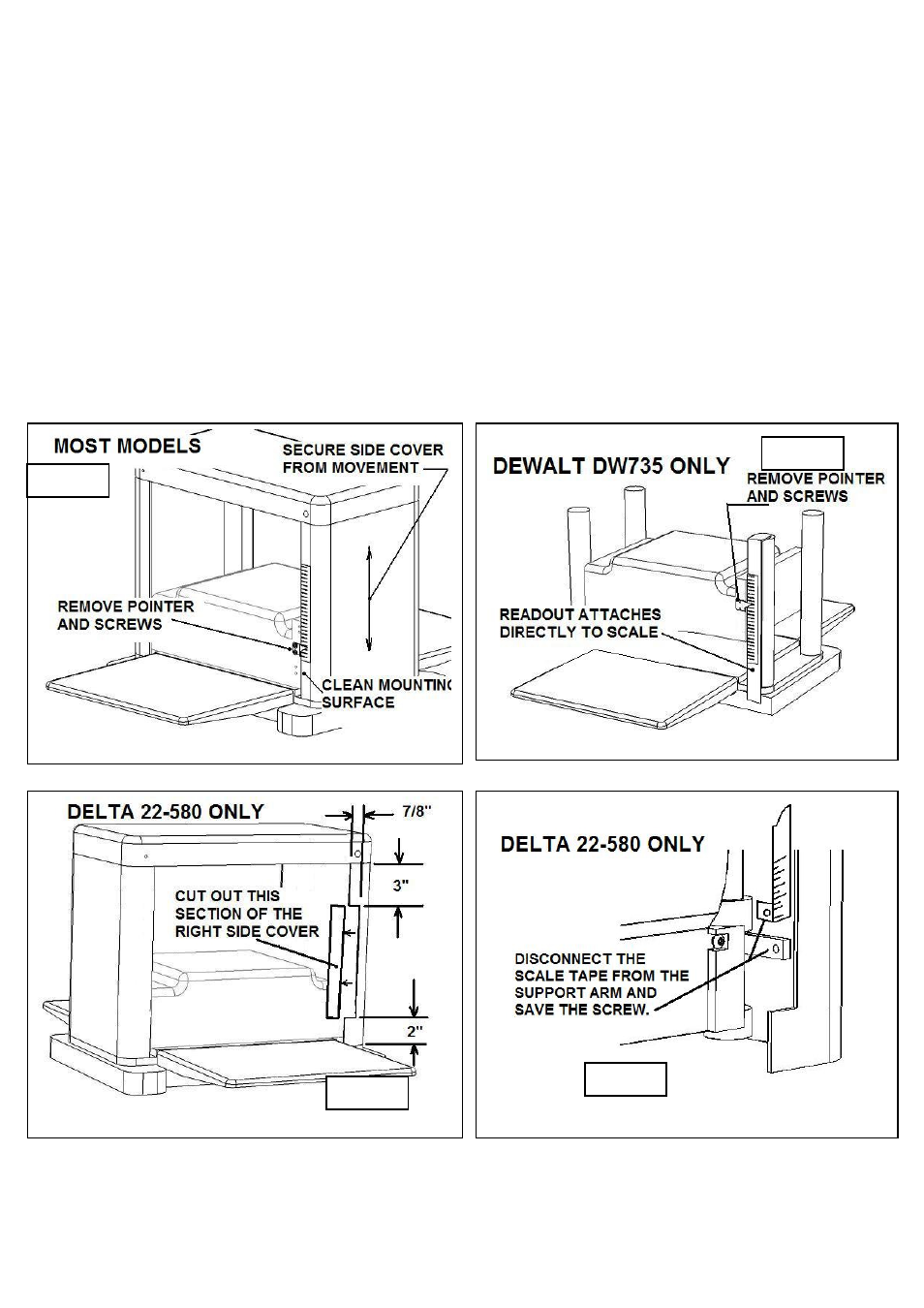

Most models will refer to FIG 1. For the Dewalt model DW735 refer to FIG 2 and for the Delta model 22-580
refer to both FIG 3 and FIG 4.
NOTICE
:
Always turn off the power and unplug your
machine before installing the Planer Readout on it.
FIG 1
FIG 2
FIG 3
FIG 4
