Gr
eat Britain
2

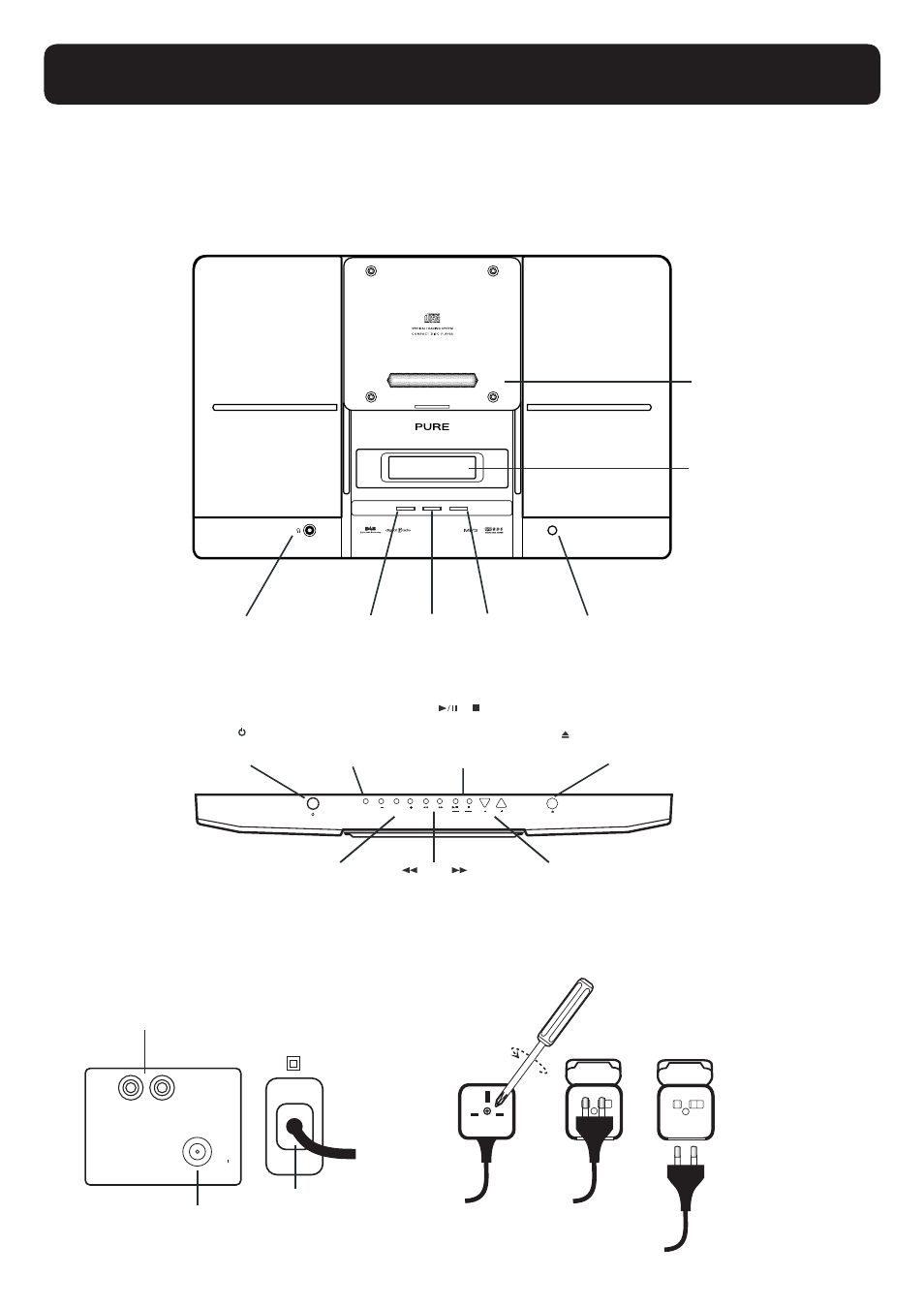

Overview diagrams
These diagrams show the function of controls, the connectors on the rear panel, the remote control and screen icons.
Getting started
X
U
A
O
F
N
I
M
F
/
B
A
D
DTM-300 Desktop Micro System
LCD screen
Backlit LCD screen with
16 x 2 characters and status icons
CD door
Slides open for access
to the CD player
INFO
Changes the
information displayed
on the screen
DAB/FM
Toggles
between
DAB and FM
Headphones
3.5 mm
headphone
socket
(mutes speakers)
Infrared receiver
Receives signal
from remote control
AUX
Switches to
Auxiliary input
R
AUX IN
L
DAB/FM
AERIAL
Power Lead
AUX IN
Stereo input from
iPod/minidisc etc.
DAB/FM AERIAL
F-type connector
for DAB/FM aerial
Rear panel
Front panel
T
C
E
L
E
S
U
N
E
M
N
A
C
S
E
S
O
L
C
/
N
E
P
O
D
C
E
M
U
L
O
V
D
C
CD OPEN/CLOSE
Opens and closes the CD door
- VOLUME +
Volume controls
MENU
Access setup options
and alarms
- SELECT +
Use + and - to scroll
and SELECT to choose
stations, tracks and
menu options
SCAN
Hold to scan or push to
step through FM frequencies
Hold to rewind/fast forward
in CD/MP3 tracks
CD controls
Play, pause and
stop CD/MP3
playback
Power
Switches between
on and standby
Top panel
UK adapter removal
