After the FXs are installed, mount the AC chassis and the DC chassis in either order.
Note: It is easier to remove the
appropriate side knockouts
from both the AC and DC
chassis before installing either
of them. If needed, the back
knockouts must be removed
before installation.

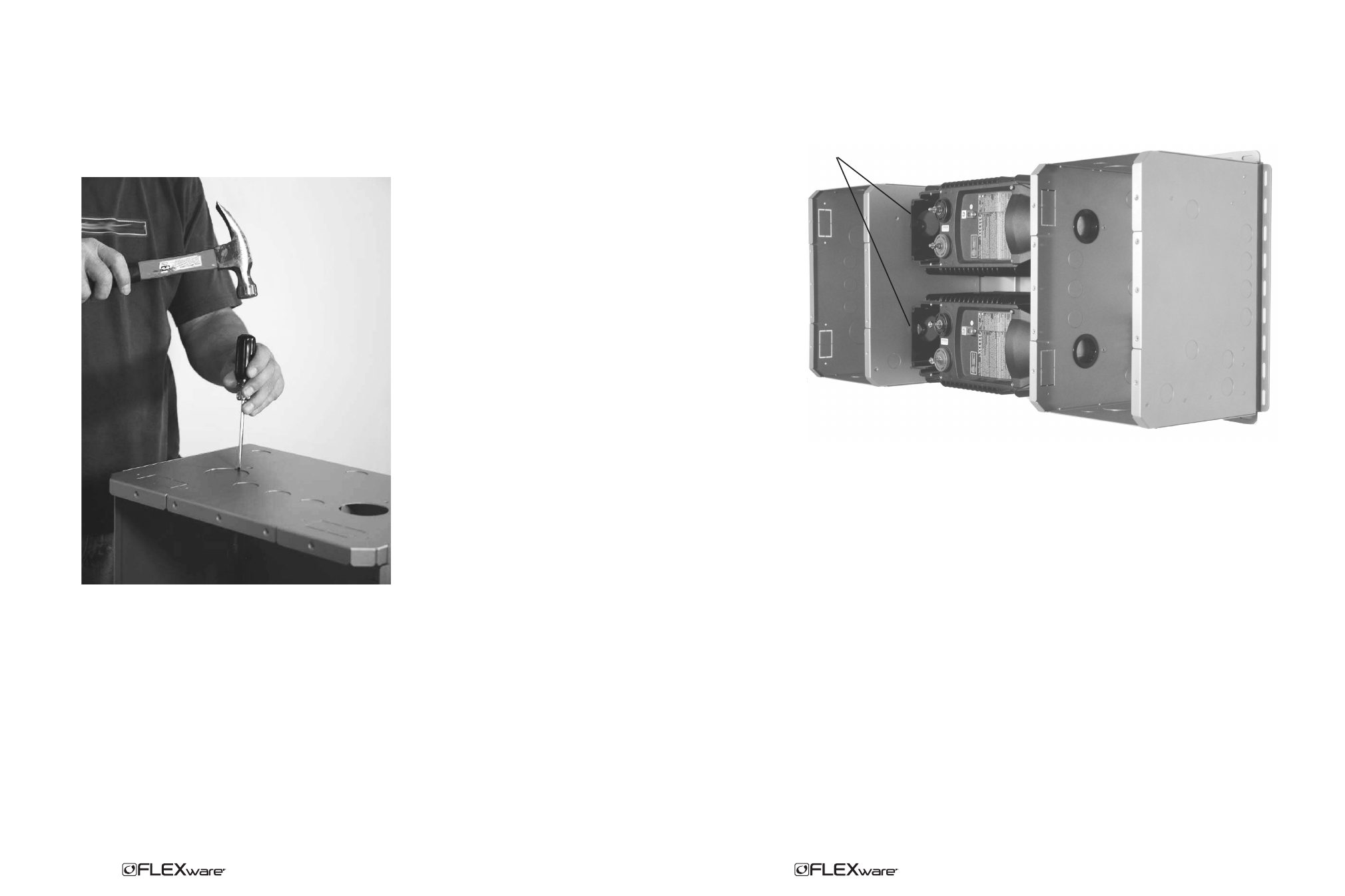

Figure 6: Removing chassis
side knockouts
When installing the AC chassis and the DC chassis:
• Either chassis can be installed first, the order is not important.
• Only loosely install the four screws securing each chassis. The screws will be tightened later.
Figure 12: ACAs installed
With both the AC Chassis and DC Chassis installed, the breaker brackets, AC din rail(s), and
optional AC and DC breakers can be installed. Please see the individual Input/Output/Bypass
Breaker (IOB) kit for instructions.
Each ACA fits against the AC chassis
12
