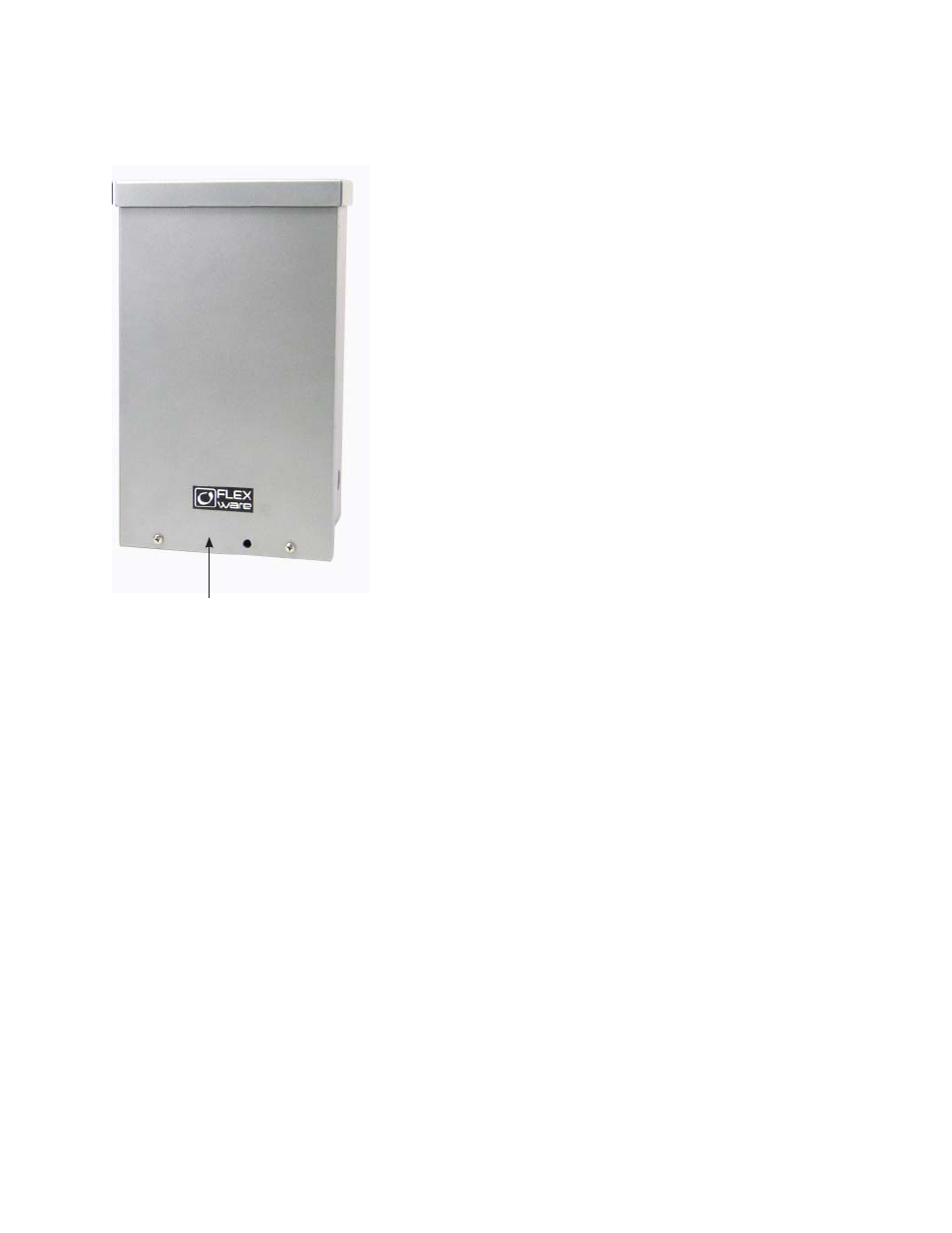

Removable front cover
• Accommodates circuit breakers or fuse holders using a
reversible* combiner bus bar
• Two output set screw lugs for parallel positive strings
capable of accepting 2/0 AWG/67.4 mm 2 output wires
• Comes with one ground bus bar and one negative bus bar
• 1” EKO bottom knockout punchable to 2” EKO
• 1” back knockout punchable to 1.5”
• Can be mounted on a 3”, 4” or 6” pole**
• Roof mountable at an angle down to 3-in-12 pitch (14 0 )
*NOTE: A combiner can use either circuit breakers or fuses
depending on the installation requirements, but it cannot use
both at the same time.
Each FWPV-8 comes with appropriate hardware for
securing either circuit breakers or fuses and their conductors.
Please see the separate FW-CBUS-8 Instructions for further
information.
**Requires fasteners not available from OutBack Power Systems
FWPV-8 Combiner Features
