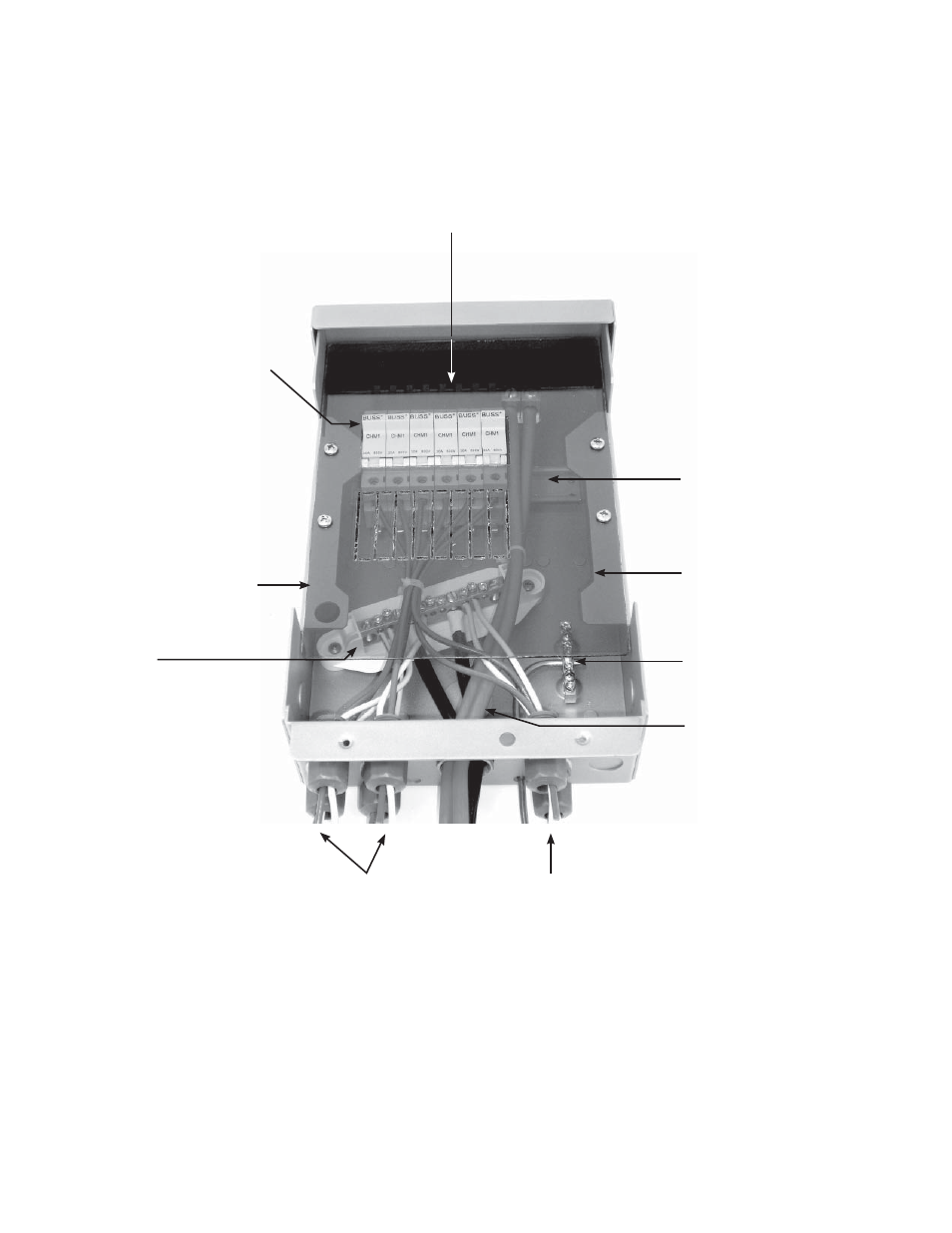

FLEXware PV-8 Combiner Wiring Sample (Fuses)
COMB(iner) Bus—combines all the PV array output “strings” or wiring at one
bus which connects to the OutBack Charge Controller(s); lugs can accept cable
sizes ranging from 2/0 to 14 AWG (67.4 mm
2 to 2.08 mm 2 ) copper wires.
Ground Bus Bar
DIN rail
Dead front
Individual array wiring enters through the bottom knockouts to stay weather resistant.
Back chassis knockout
Individual PV array fuses
and fuse holders (up to
15 amp/600 VDC) are
available from OutBack.
Fuse holders must be
secured to the DIN
rail and installed fl ush
against the dead front
mounting fl ange
Dead front mounting
fl ange
Negative Terminal Bus
Bar
