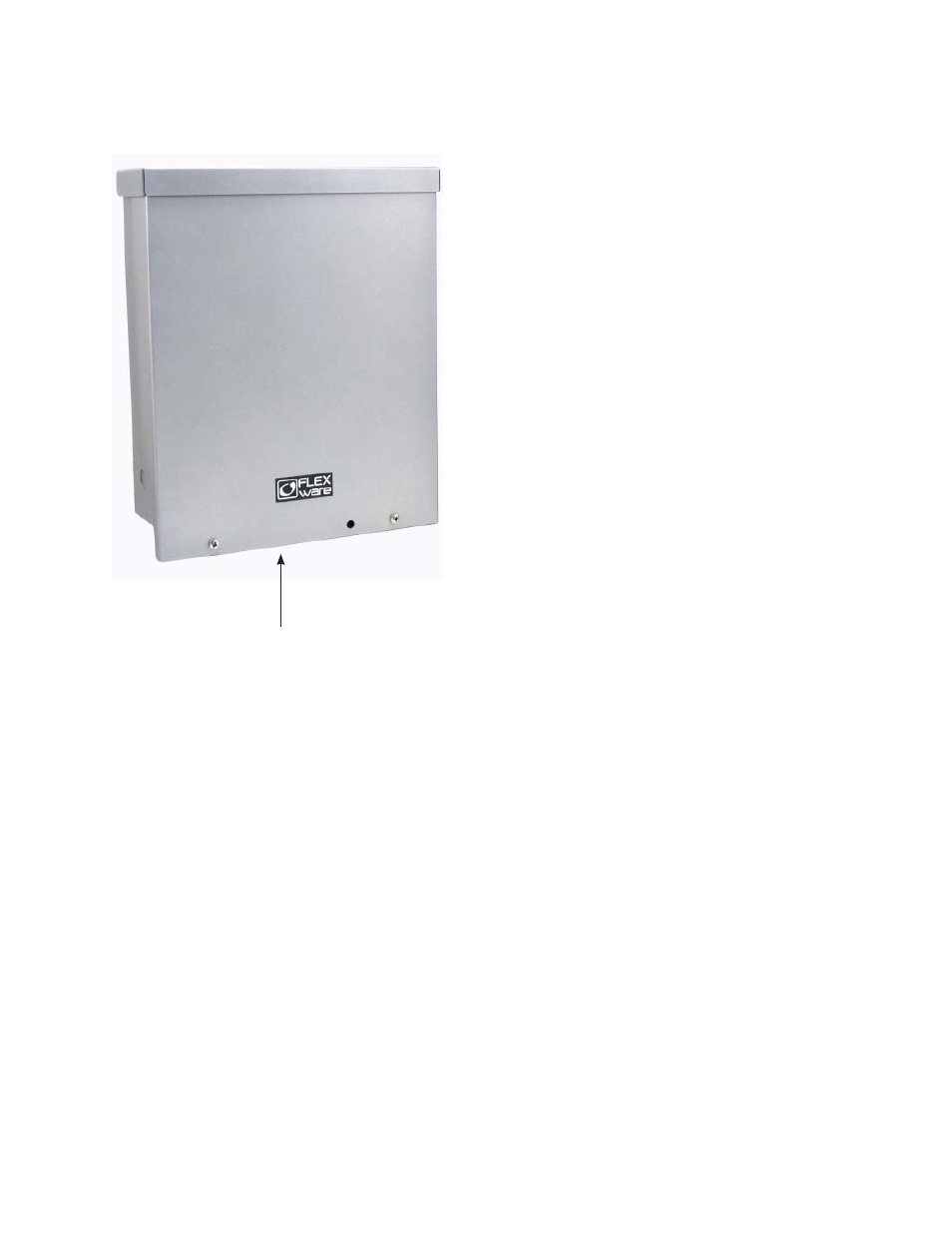

Removable front cover
• Accommodates circuit beakers or fuse holders
using a reversible* combiner bus bar
• Four output set screw lugs for positive parallel
strings capable of accepting 2/0 AWG (67.4
mm
2
) output wires
• Comes with two ground bus bars and two
negative bus bars
• 1” EKO bottom knockout punchable to 2” EKO
• 1” back knockout punchable to 1.5”
• Can be mounted on a 6” or 8” pole
• Roof mountable at an angle down to 3-in-12
pitch (14
0
)
*NOTE: A combiner can use either circuit
breakers or fuses depending on the installation
requirements, but it cannot use both at the same
time. Positive combiner bus bars can be
combined per NEC 2008 standards.
Each FWPV-12 comes with appropriate hardware
for securing either circuit breakers or fuses and
their conductors (see next page).
FWPV-12 Combiner Features
