Dead front fl ips over
to accommodate fuse
holders or breakers

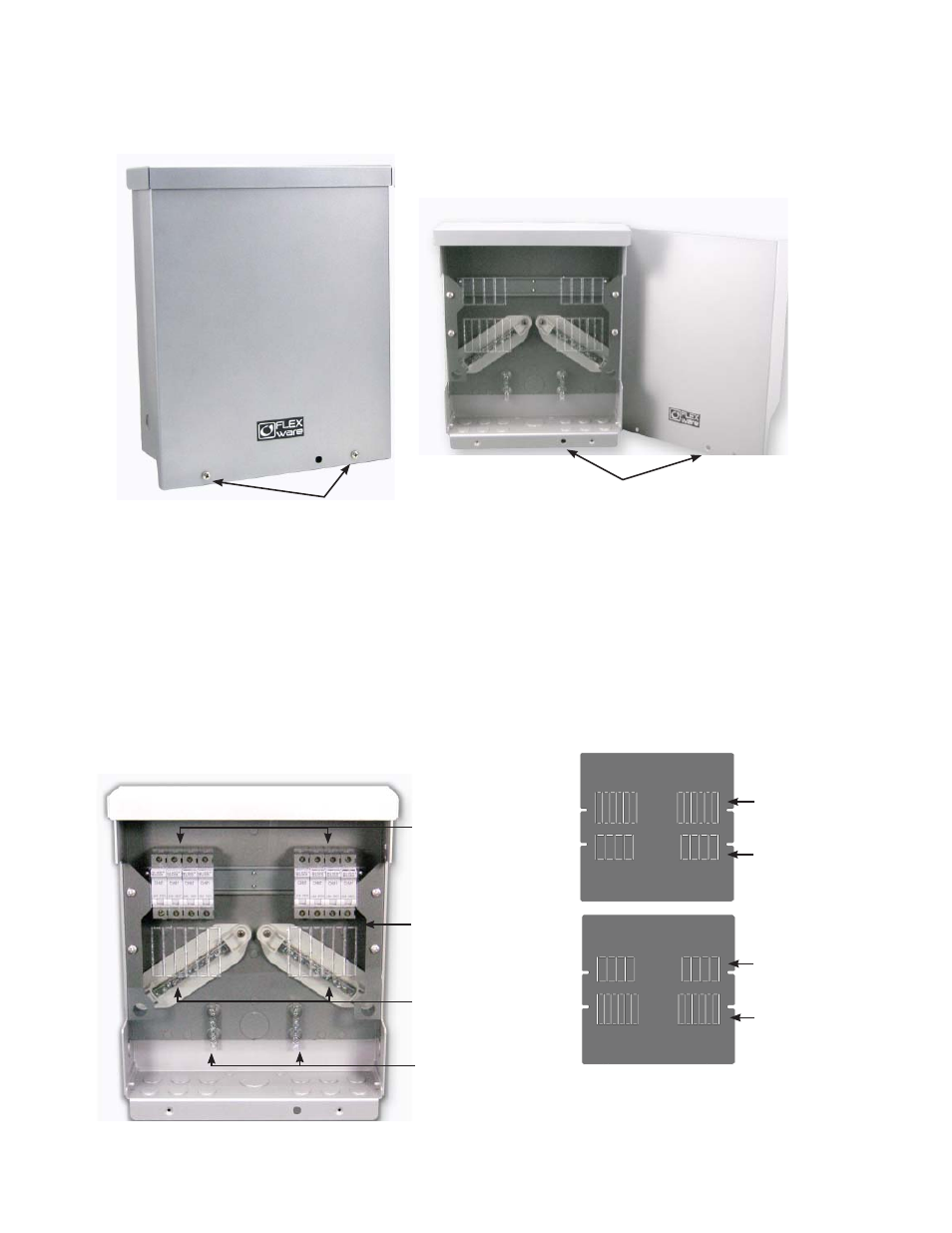

FLEXware PV-12 Combiner
Two #12 sheet metal screws* secure
the combiner’s front cover.
A 7/16” lock hole accepts a
padlock to secure the cover.
Houses up to:
• Eight “touch safe” OBFH fuse holders and OBF fuses and knockouts for eight input strings
• 12 DIN mount OBB circuit breakers
• Electrical knockouts capable of accommodating copper wire sizes from 2/0 to 14 AWG
(67.4 mm 2 to 2.08 mm 2 )
Combiner shown with
optional fuse holders
mounted to DIN rail.
Negative Terminal Bus
Bars
Ground bus bars
Tinted polycarbonate
dead front with breaker
and fuse knockouts
secures with four #12
sheet metal screws*.
Circuit
Breaker
Knockouts
Fuse
Knockouts
Fuse
Knockouts
Circuit
Breaker
Knockouts
*Finish torque to 14 in-lbs
