Installing Inverter Main DC Disconnects

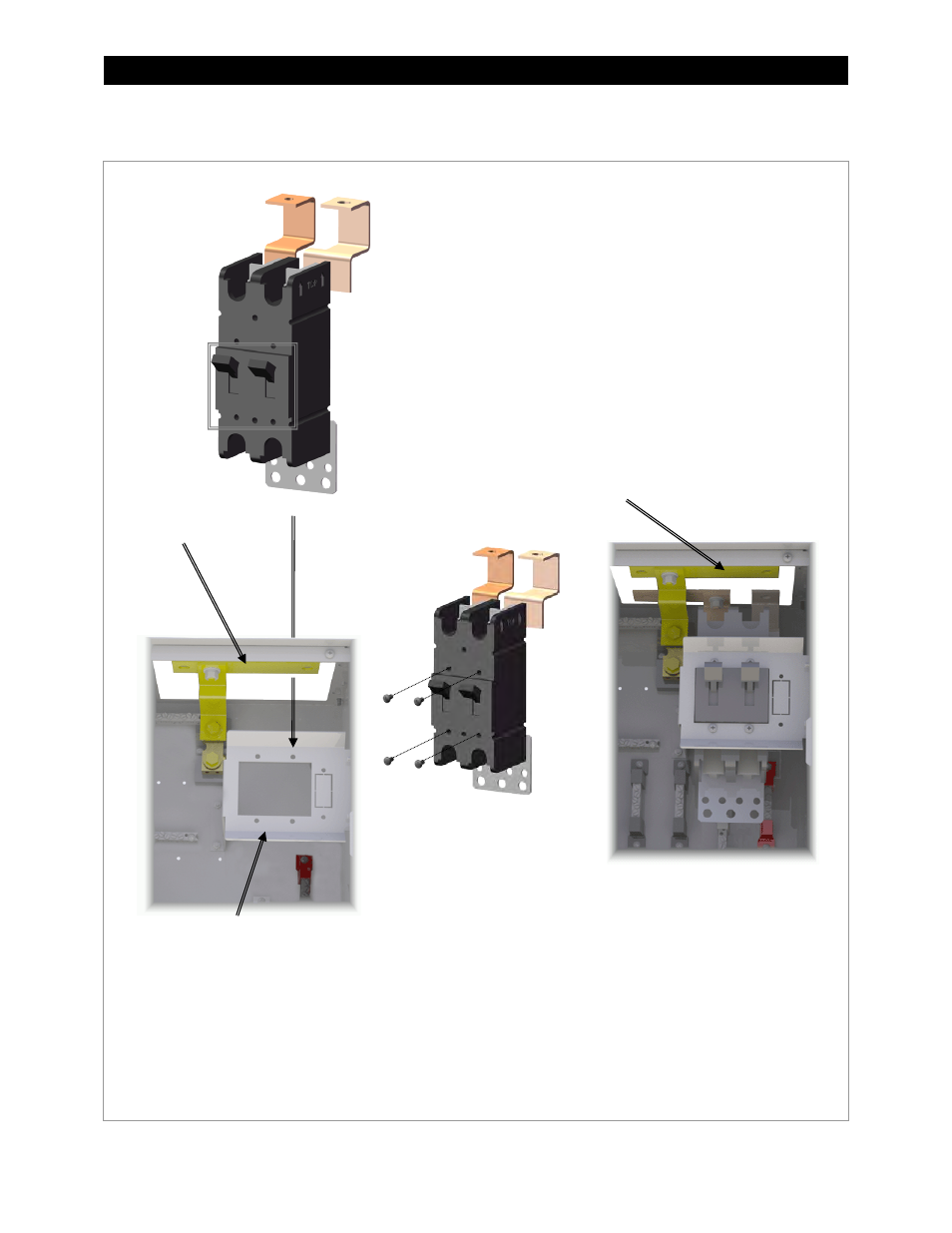

Figure 20
Inverter Main DC Disconnects
To mount the inverter main DC disconnects:
1. If the negative top bar is installed, loosen or remove it.
2. Slide the disconnect assembly through the opening in the
top of the GSLC and place it behind the premounted
bracket. Center the disconnect assembly so that the raised
area around the switch protrudes through the bracket. It
may be necessary to hold the assembly in place by hand.
3. Take the mounting screws provided with the circuit
breaker and insert them from the outside into the GSLC
bracket.
4. Tighten until secure, but do not over-tighten.
5. Reattach the negative top bar. Tighten to the value shown
in Table 1 on page 19.
These instructions assume that the GSLC has not yet been mounted to the Radian
inverter and that the top is open. If the GSLC’s top is closed or inaccessible, remove the
premounted bracket. Attach the disconnect assembly to it. Finally, re-install the bracket.
Premounted bracket
Negative Top Bar
