Installation
12 900-0144-01-01 Rev A

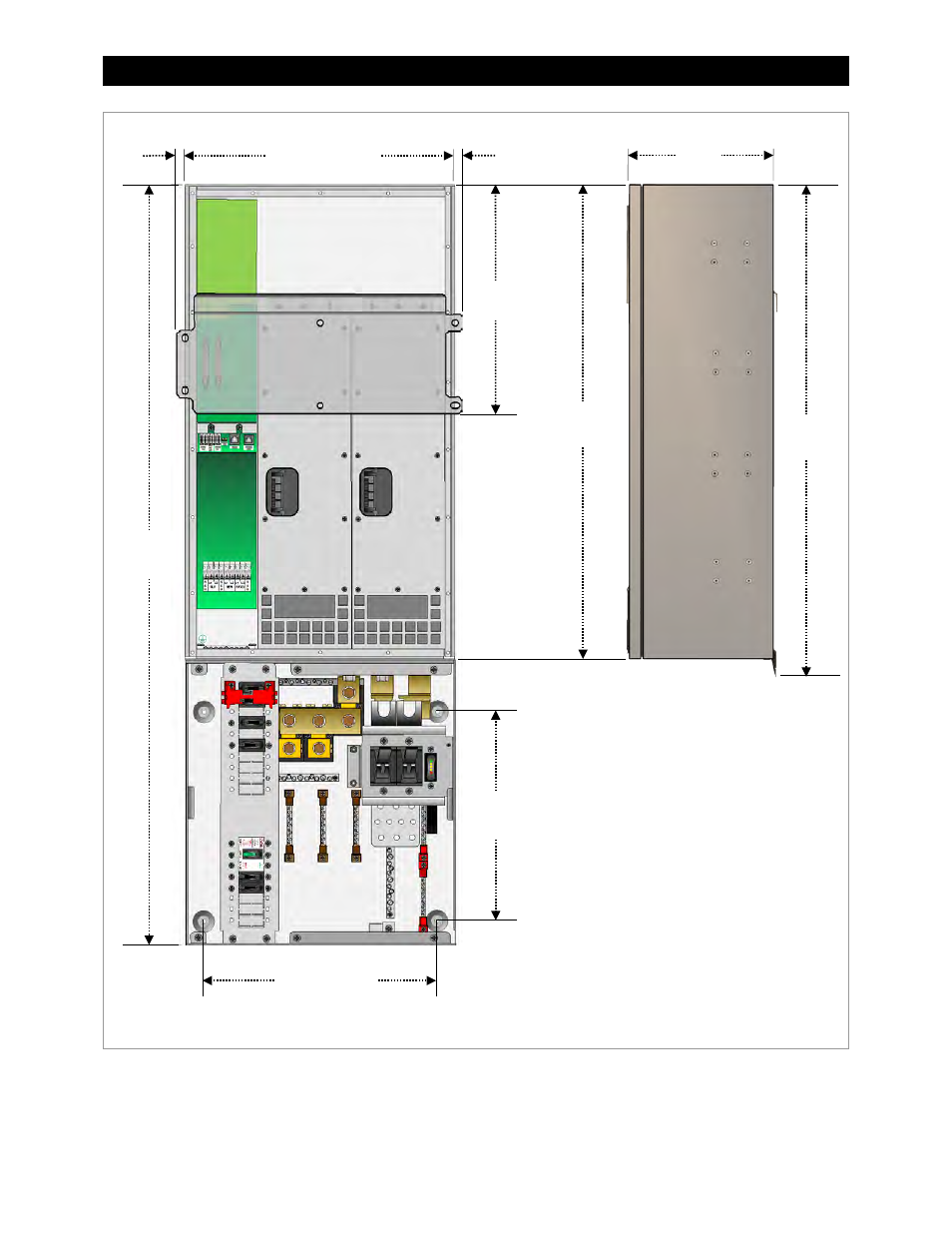

Figure 7 System Dimensions
Width 40.6 cm (16")
1.1 cm (0.45") 1.1 cm (0.45")
34.8 cm
(13.7”)
71.1 cm
(28”) 73.7 cm
(29.0”)
31.8 cm
(12.5”)
114.3 cm
(45.0”)
22.2 cm
(8.75”)
35.6 cm (14.0")
This illustration can be used as a
basic template for planning layouts,
marking mounting holes, etc.
when installing a system.
The requirements for mounting the
Radian inverter are described
beginning on the next page.
