REAR LADDER
07-10 FJ CRUISER
Page 3 of 4 5/21/07 (AM)

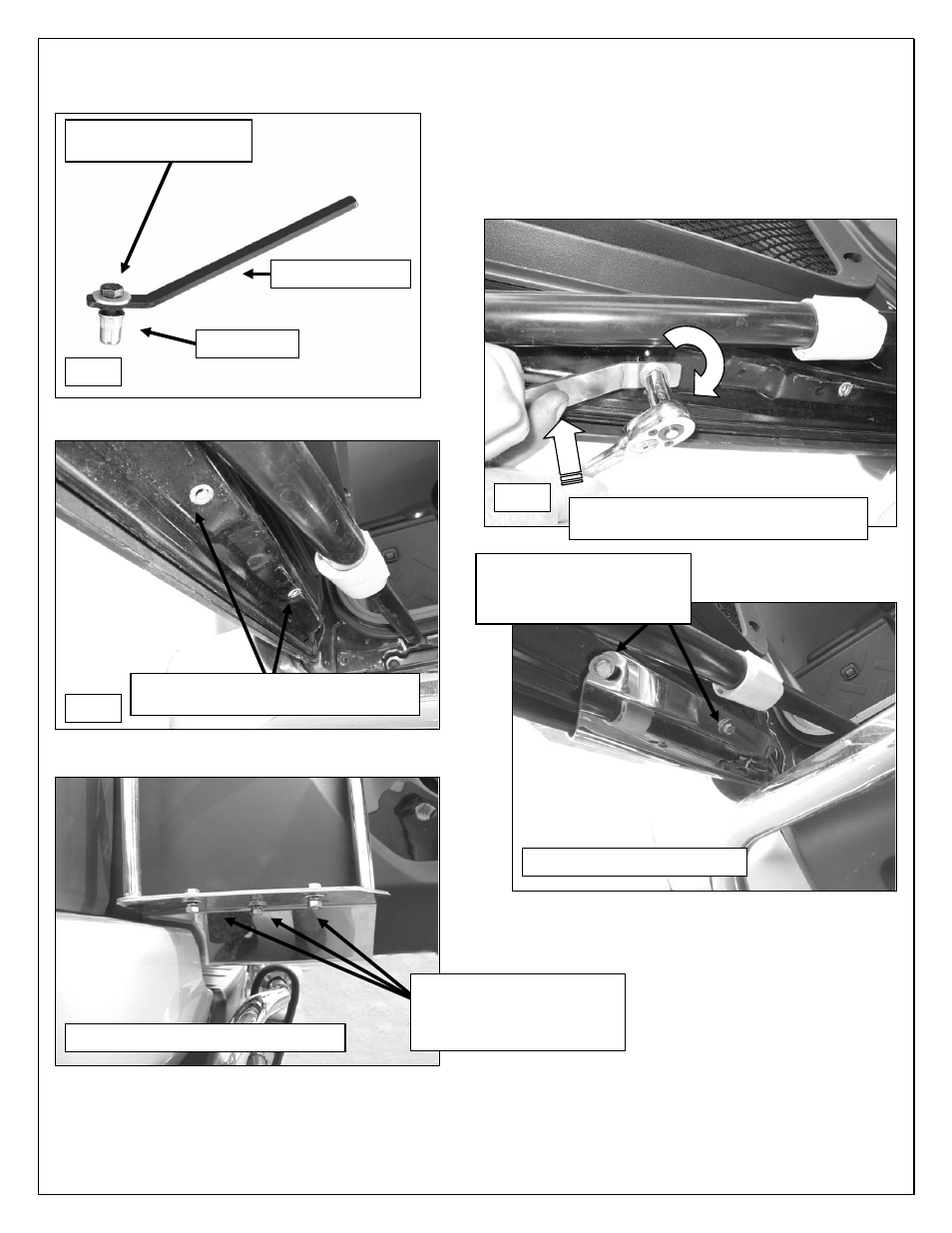

Metal Insert
Metal Insert Tool
6mm x 20mm Hex Bolt
6mm Flat Washer
(2) 6mm x 20mm Hex Bolts
(2) 6mm Lock Washers
(2) 6mm Flat Washers
(3) 8mm x 20mm Hex Bolts
(3) 8mm Lock Washers
(6) 8mm Flat Washers
(3) 8mm Hex Nuts
Metal inserts will be flush with
sheetmetal when properly installed
Fig 3
Fig 4
Fig 5
(Fig 6) Pictured from below
(Fig 7) Pictured with rear door open
Hold Tool firmly against surface while
tightening Hex Bolt to expand Insert
