REAR LADDER
07-10 FJ CRUISER
Page 2 of 4 5/21/07 (AM)
8. Carefully install the Ladder onto the Lower Mounting Bracket using the Included (3) 8mm x
20mm Hex Bolts, (3) 8mm Lock Washers, (6) 8mm Flat Washers and (3) 8mm Hex Nuts,
(Figure 7). Snug but do not tighten hardware at this time.
9. Attach the Upper Mounting Bracket to the Ladder using the included (2) 8mm x 20mm Hex
Bolts, (2) 8mm Lock Washers, (4) 8mm Flat Washers and (2) 8mm Hex Nuts, (Figure 8). Snug
but do not tighten hardware at this time.
10. Using the holes on the Upper Mounting Bracket as a template, mark the drill location onto the
door, (Figure 9). NOTE: Before marking the location, make sure the Ladder is vertical, straight
and properly lined up with the rear door. Assistance is recommended.
11. Remove the Upper Mounting Bracket from the Ladder and set aside. Drill the marked locations
with a 25/64” drill bit as per Step 4, (Figure 10).
12. Repeat Step 5 for Insert Installation for the Upper Mounting Bracket.
13. Bolt the Upper Mounting Bracket to the top of the door using the included (2) 6mm x 20mm
Hex Bolts, (2) 6mm Lock Washers, and (2) 6mm Flat Washers, (Figure 11). Do not tighten
hardware at this time. Bolt the top of the Ladder to the Upper Mounting Bracket using the
hardware listed in Step 9. Check that the Ladder is straight and tighten all hardware at this
time.
14. Do periodic inspections to the installation to make sure that all hardware is secure and tight.
To protect your investment, wax this product after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives
that could damage the finish.
For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the finish.
Mild soap may be used also to clean the Ladder and Brackets.
For gloss black finishes: Mild soap may be used to clean the Ladder and Brackets.

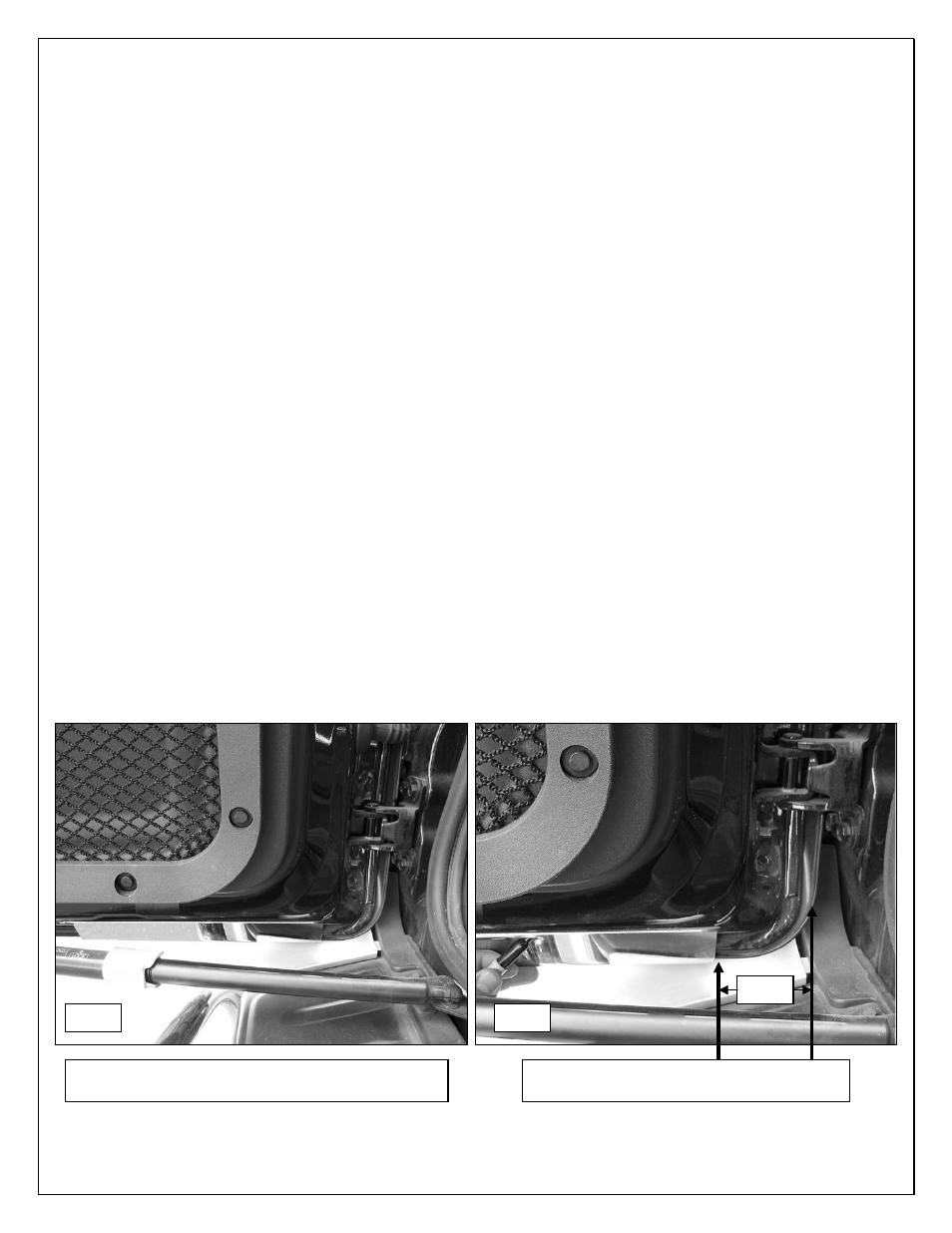

Mark location with Bracket approximately
2-3/4” from the vertical edge of rear door
2-3/4"
Fig 1 Fig 2
Use the Lower Mounting Bracket as a template to
determine location to drill for threaded inserts
