Dee Zee 123000-06 - Manual (Page 3)

15
16
13
17
12
14
3
11
4
27
10
9
1
22
23
24
19
20
21
8
28

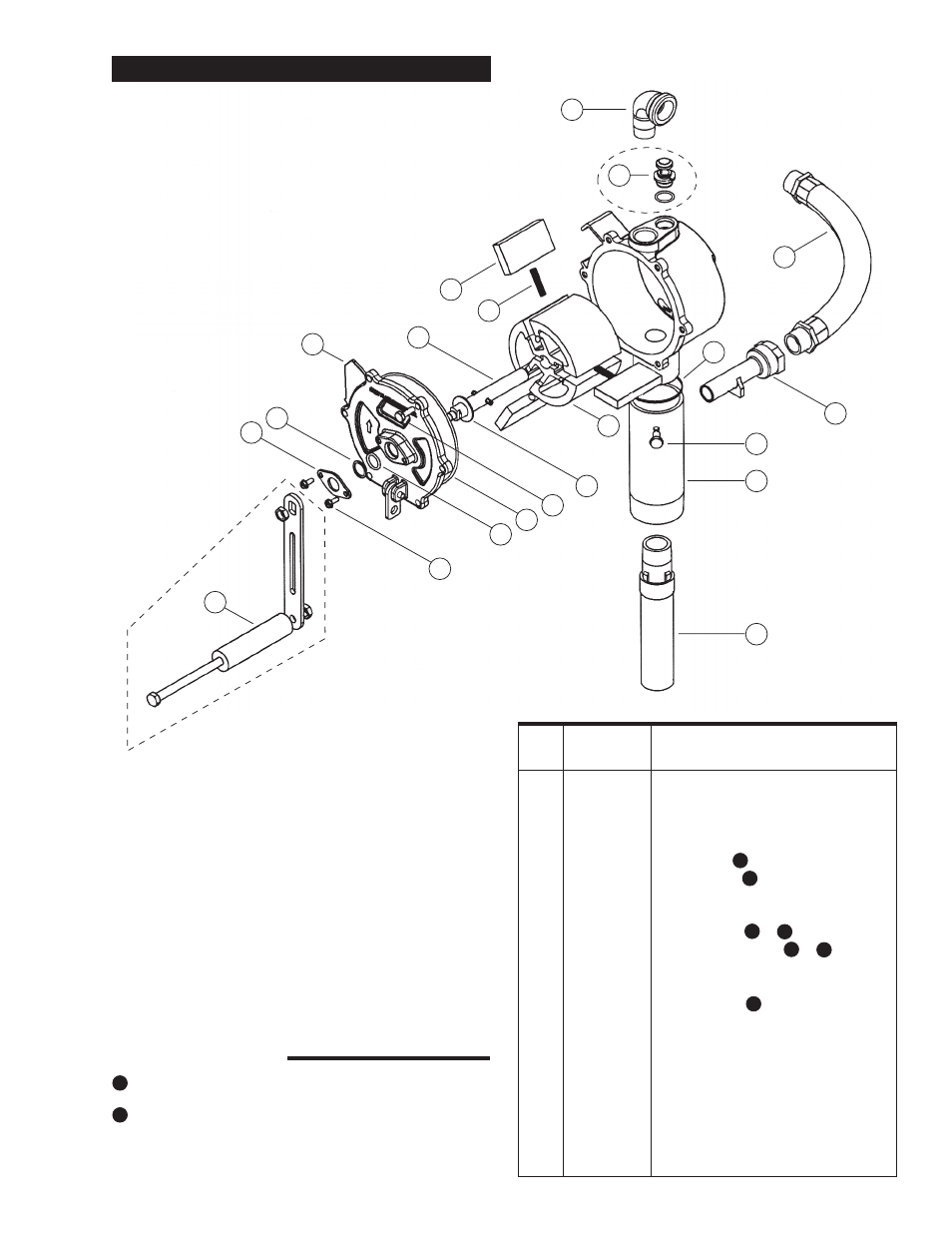

ILLUSTRATED PARTS LIST
Item No.
No. Part No. Description Req’d.
1 123504-1 Anti-Siphon Vent Kit .........................1
3 123507-1 Shaft Assembly Kit ...........................1
4 123008-1 Coverplate ........................................1
8 123509-1 Rotor with Springs Kit ......................1
9 123011-1 Vane or (Kit ) ................................3
10 123012-1 Spring or (Kit ) ..............................3
11 904004-71 Washer ..............................................1
12 904004-16 Screw, 1/4-20 x 3/4" .........................6
13 901003-63 O-Ring or (Kit or ) ....................1
14 901002-58 Back-up Ring or (Kit or ) ..........1
15 123013-1 Retainer ............................................1
16 904004-60 Retainer Screws ...............................2
17 901003-64 O-Ring or (Kit ) .............................1
19 110100-1 Suction Pipe Assembly .....................1
20 123015-1 Riser .................................................1
21 904004-59 Set Screws .......................................2
22 904004-73 Elbow Fitting .....................................1
23 114045-1 Hose Assembly .................................1
24 114047-1 Metal Nozzle .....................................1
114036-1 Plastic Nozzle ...................................1
27 123506-1 Crank Assembly Kit ..........................1
28 901001-90 O-Ring ..............................................1
Kits and Accessories
123501-1 Shaft Seal Kit includes O-ring, back-up ring,
and seal.
123503-1 Overhaul Kit includes vanes, springs, and
Shaft Seal Kit.
123505-3 Hardware Kit
115527-2 Suction Pipe Extension, 15 inches or 38.1cm.
A
B
B
B
A B
A B
A
