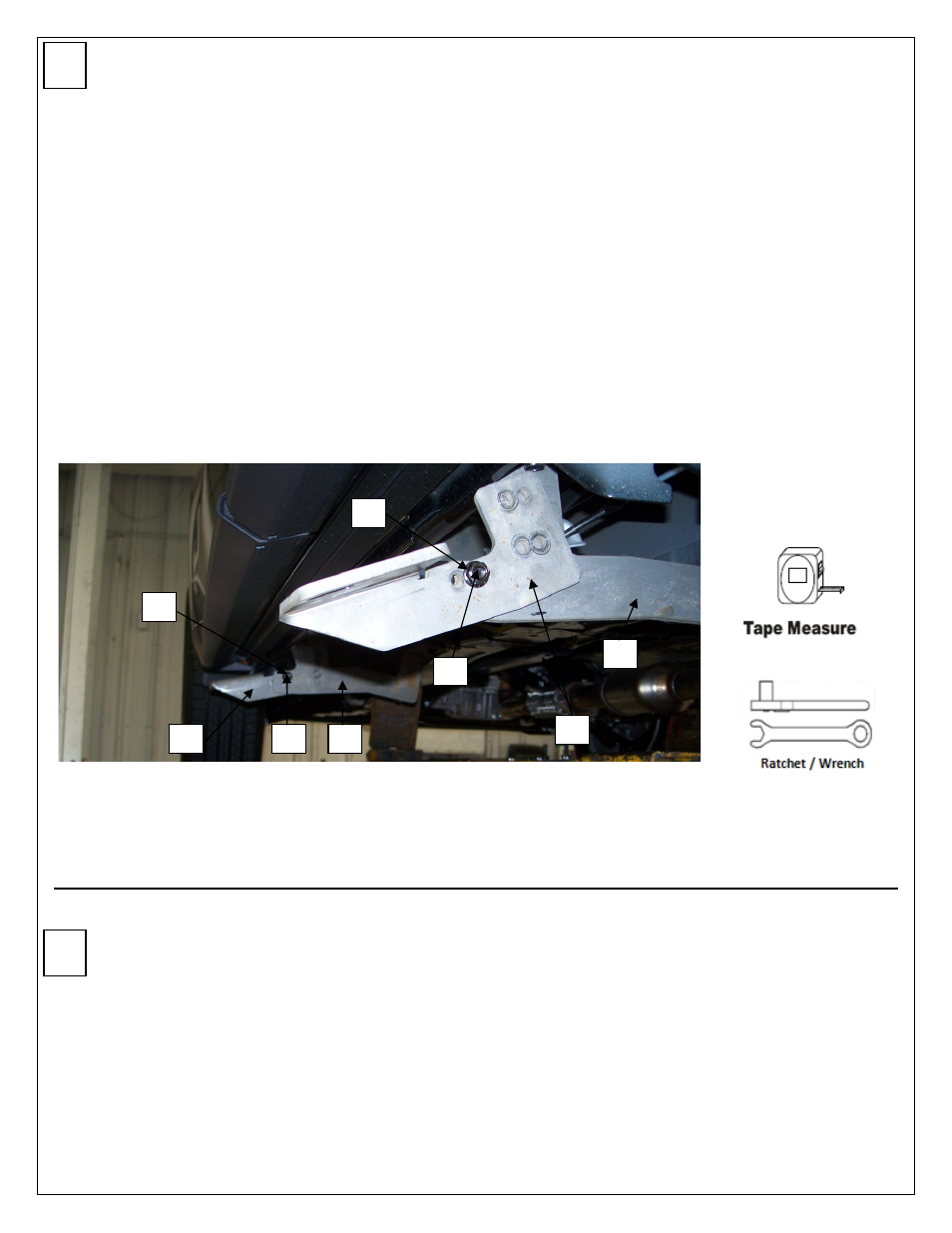

Using the bracket configuration for the application needed (shown in Step 2), place running
board bracket (F) onto the correct location in Bracket (B) and bolt together using a
8mmx20mm hex head flange bolt (N) and a M8 flange nut (L). Repeat for the rear bracket
location (brackets D and F), again using the correct location from Step 2. Place running board
on bracket (F) and start M8 flange nuts (L) onto each of the 8mm square head bolts (H). Do
not completely tighten. Rotate board upwards and then place the remaining two 8mmx20mm
hex head flange bolt (N) and the two M8 flange nut (L) (per bracket location) and tighten all
completely.

Center board on vehicle between wheel well openings or until desired appearance is aquired.
Adjust board in/out on vehicle until desired appearance is met. (Note: opening door may aid
in determining step surface location in/out on vehicle) Tighten the M8 nuts (L) completely
securing the board to the brackets.

Repeat steps 1-6 for passenger side using brackets (C) and (E).

13 mm
