3” SIDEBAR WITH BENT END
04-09 CHEVY COLORADO/ GMC CANYON CREW CAB
Page 4 of 4 7/23/09 REV 4(DP)

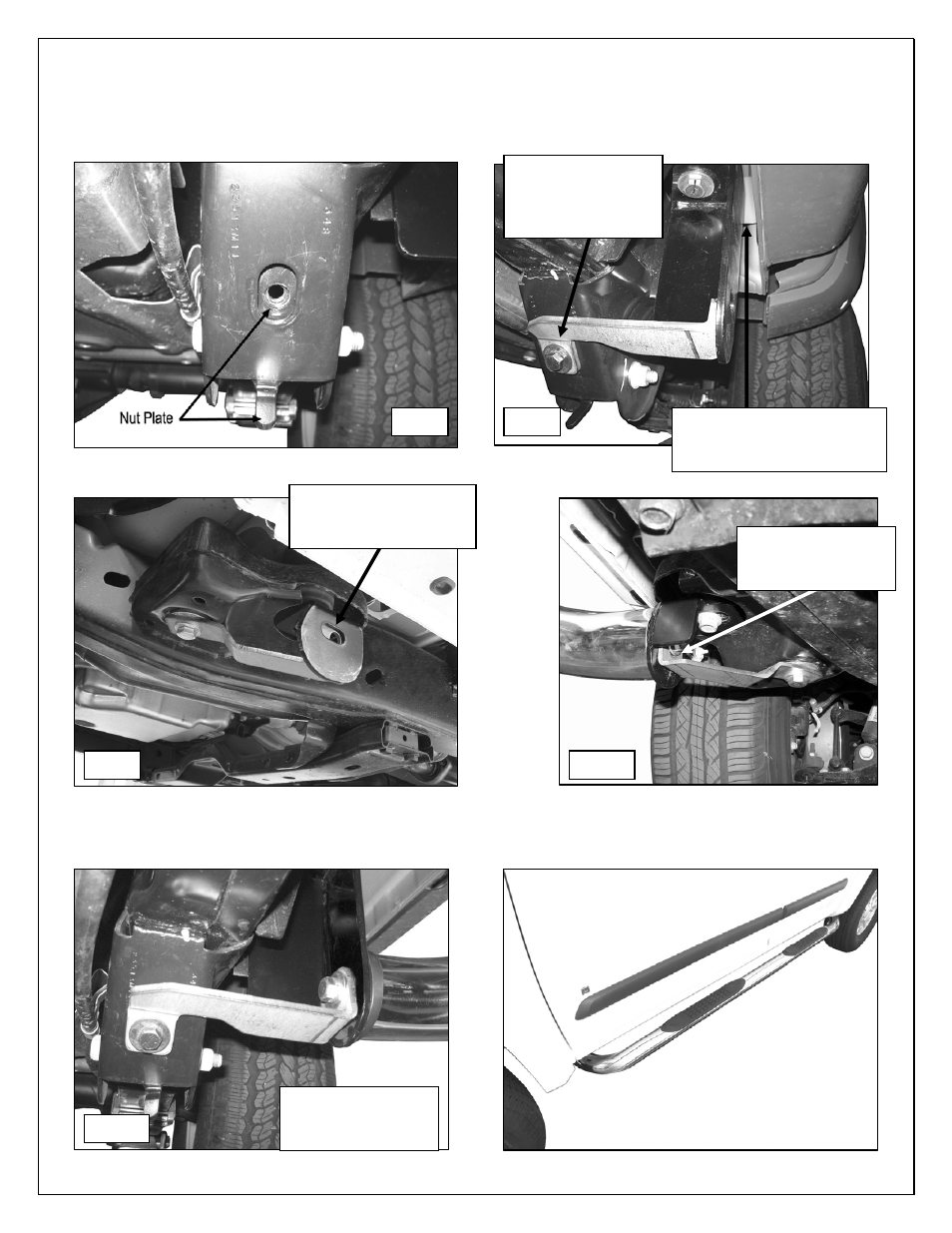

Driver Side Installation Pictured
Fig 7 Fig 8
12mm x 30mm Hex
Bolt
12mm Flat Washer
12mm Lock Washer
Fig 9
1/2” x 2” Hex Bolt
1/2” Flat Washer
1/2” Lock Washer
Fig 11
1/2” x 2” Hex Bolt
1/2” Flat Washer
1/2” Lock Washer
Fig 10
Complete Installation
Line up slot in Support
Bracket with slot in
Mounting Bracket
Do not allow Mounting
Bracket to come in contact
with the inner body panel
