3” SIDEBAR WITH BENT END
04-09 CHEVY COLORADO/ GMC CANYON CREW CAB
Page 3 of 4 7/23/09 REV 4(DP)

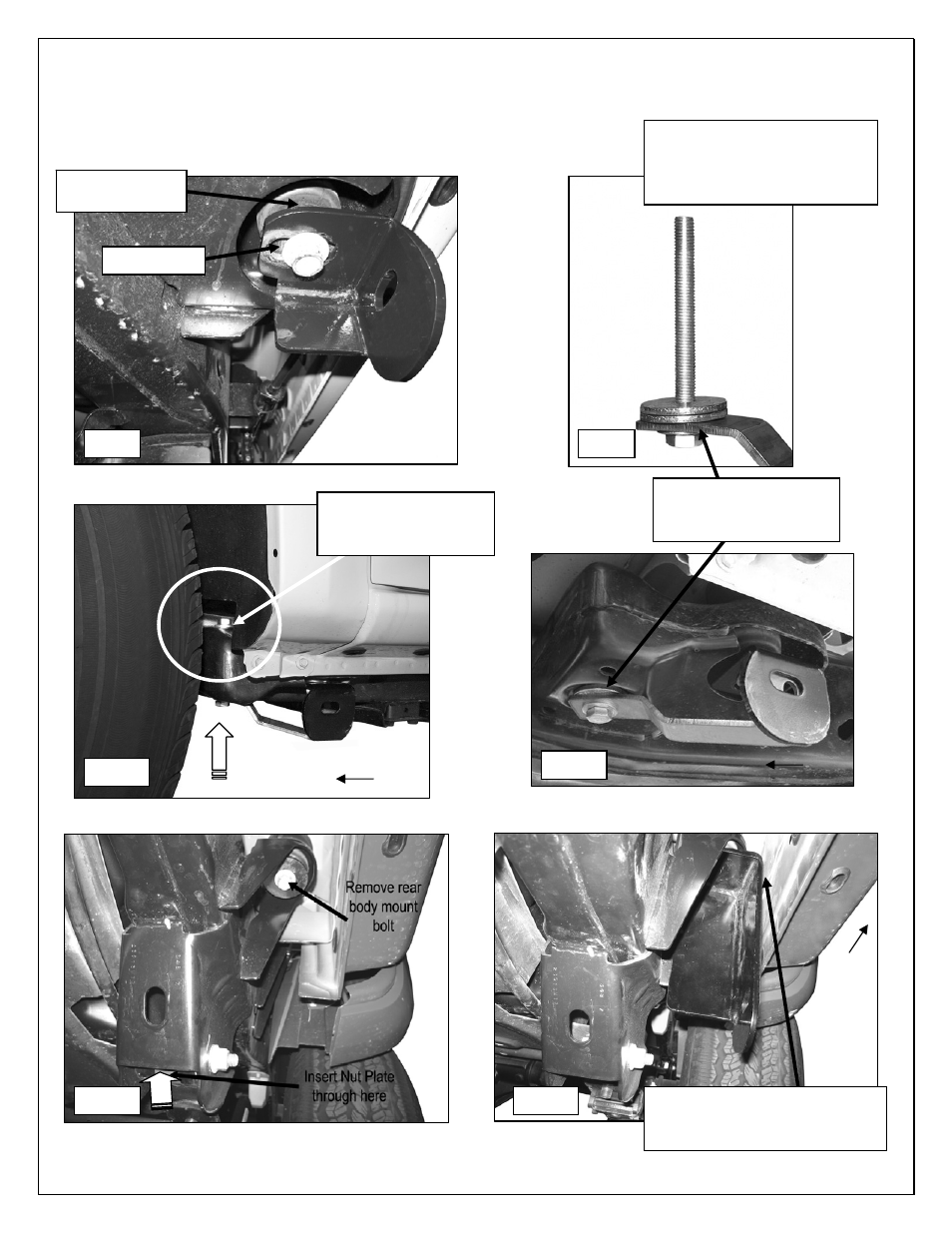

Driver Side Installation Pictured
Fig 6B
Fig 3
Fig 6A
Fig 4
Fig 5A
12mm x 120mm Hex Bolt
12mm Flat Washer
(2) 14mm x 50mm OD x 4mm
Flat Washers
12mm Lock Washer
12mm Flat Washer
12mm Hex Nut
Flat Washers fit into
indent on factory body
mount housing
Front
Front
Factory bolt
Factory body
mount bushing
Front
Leave a minimum 1/4" gap
between the Mounting Bracket
and the inner body panel
Fig 5B
