4 Cameras & 4 Channel DVR Video Security System Bundle
4

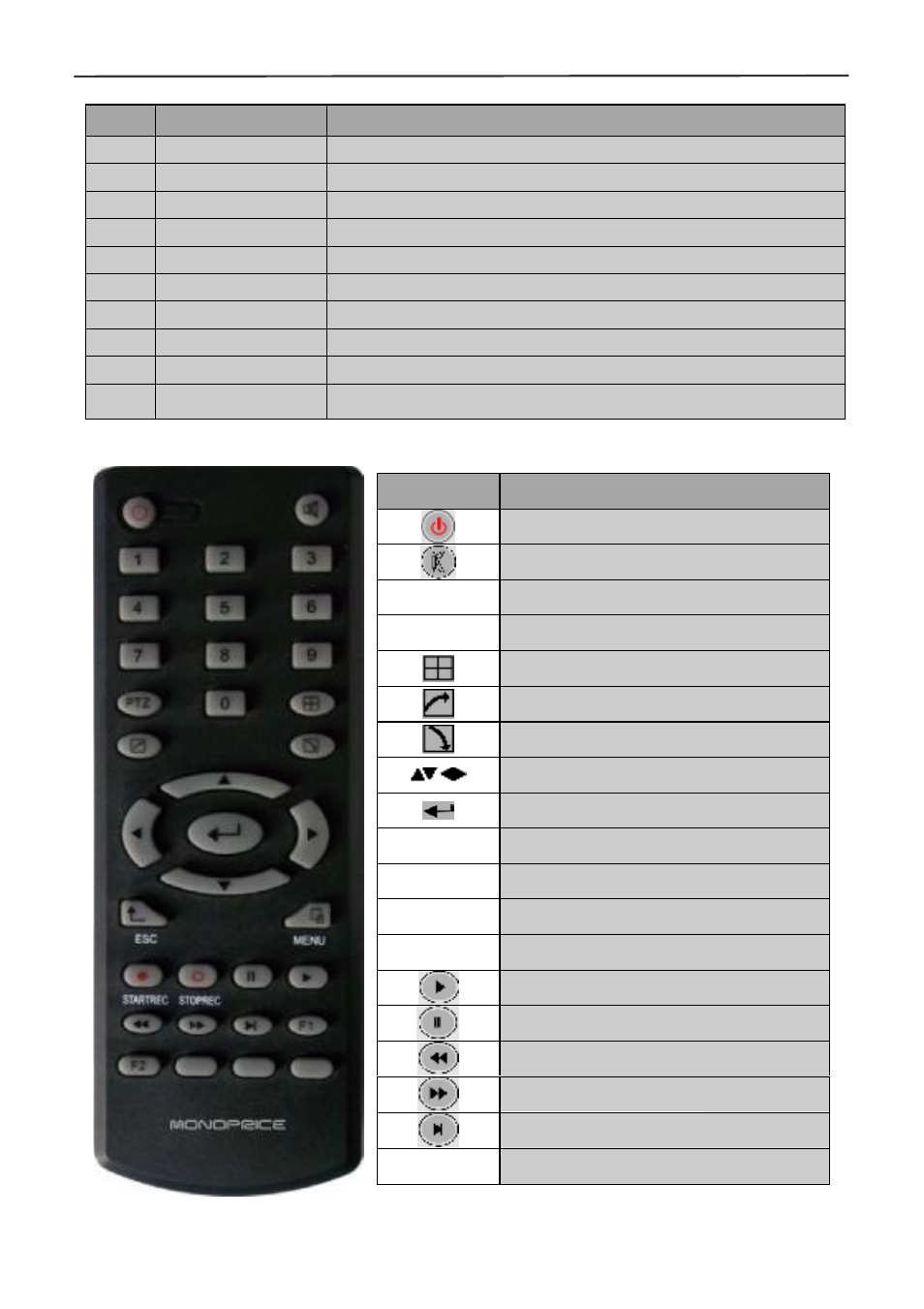

1.6 Remote Controller
No. Physical interface Interface description
1 1~4/8CH Video input Connect analog video signal input, standard BNC connector
2 Video output CVBS output and connection for the monitor
3 1~4/8CH Audio input Connect active audio signals, such as pickup
4 Audio output Connect the audio output
5 VGA Connect VGA monitor, such as computer monitor
6 NETWORK Connect the Ethernet cable
7 RS485 Connect the RS485 interface for equipment like PTZ
8 DC12V Power interface：DC 12V/3A
9 ALARM Connect alarm switch output
10 G
Grounding: To eliminate electrostatic from chassis
Key Functional definition
Power ON/OFF
Mute
0~9 Channel selection; number keys
PTZ PTZ Control
Single and multi-split screen
Quit shortcut menu
Shortcut menu
Direction buttons
OK
ESC Exit / Return
MENU Enter the main menu
STARTREC Manual recording
STOPREC Stop recording
Video Search
Stop playing
Fast backward
Fast forward
Frame movement
F1, F2 Spare key
