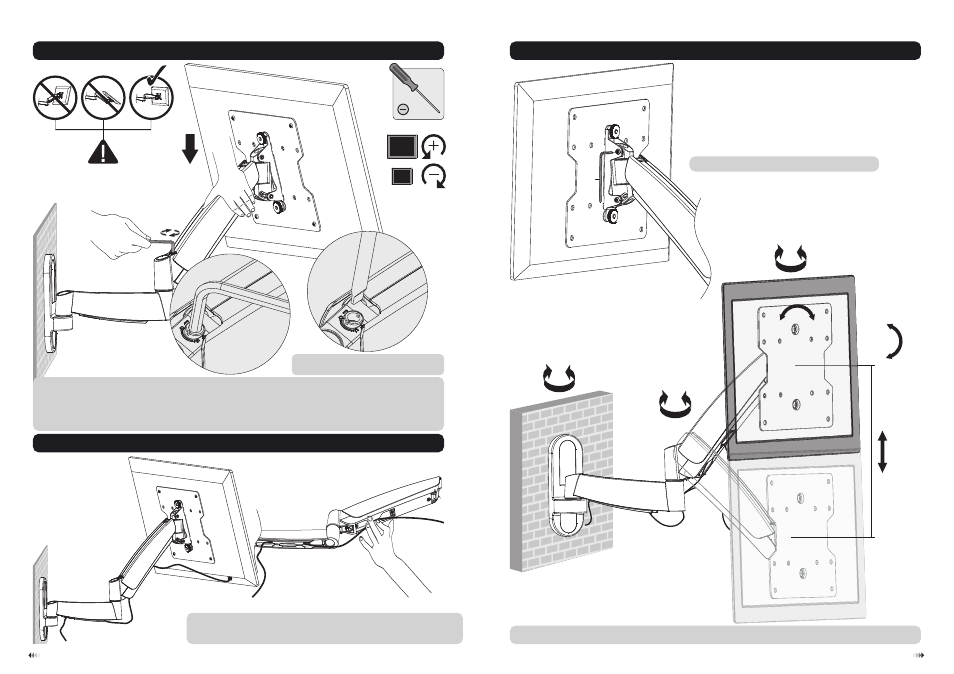

7. Tension Adjust
Please keep the arm level during tension adjustment. Use a proper Allen key to slightly loosen or tighten the
adjustment screw according to the display weight.
If display settles on its own, rotate adjustment screw towards the "+" symbol.
If display rises on its own, rotate adjustment screw towards the "-" symbol.
8. Cable Management
Connect the cables to the display, and press cable cover inward to route
the cables through the space.
Note: Leave slack in cable for cantilever arm movement.
Adjust to the desired location or tilt.
9. Adjustment
Tighten screw till the display angle can be fixed.
9
h
e
ig
h
t
a
d
ju
s
ta
b
le
m
a
x
3
3
5
m
m
+15°
-15°
180°
B
180°
180°
+3° -3°
C
Please tighten socket set screw if the
joints make popping sounds in use.
