Warning – Monoprice 9744 Smooth Motion Wall Mount Bracket User Manual
Page 4
6
5

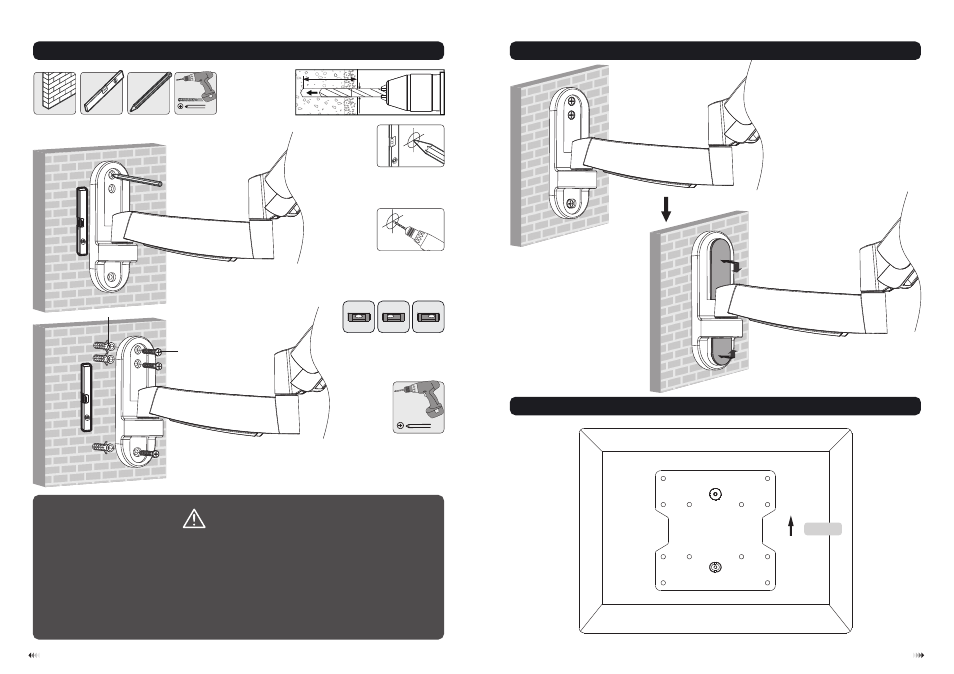

4. Install Decorative Covers
5. Install VESA Plate
Top of TV
X
X
√
• When installing wall mounts on cinder block, verify the actual concrete thickness is at least
1-3/8" (35mm) for using the concrete anchors. Do not drill into mortar joints! Be sure to
mount in a
solid part of the block, generally 1" (25mm) minimum from the side of the block.
It is suggested electric drill on slow setting be used to drill the hole instead of a hammer drill
to avoid breaking out the back of the hole when entering a void or cavity.
• Installers must verify that the supporting surface will safely support the combined load of the
equipment and all attached hardware and components.
WARNING
3b. Mount on Solid Brick and Concrete Block
Drill pilot holes
1
2
Screw the wall
mount onto
the wall
60mm
(2.4")
60mm
2.4"
(
)
60mm
(2.4")
ø 10mm
(ø 3/8")
W-B
W-A
Mark the exact
location of
mounting holes
Mark the exact
location of
mounting holes
Mark the exact
location of
mounting holes
