Warning – Monoprice 9744 Smooth Motion Wall Mount Bracket User Manual
Page 3
4
3

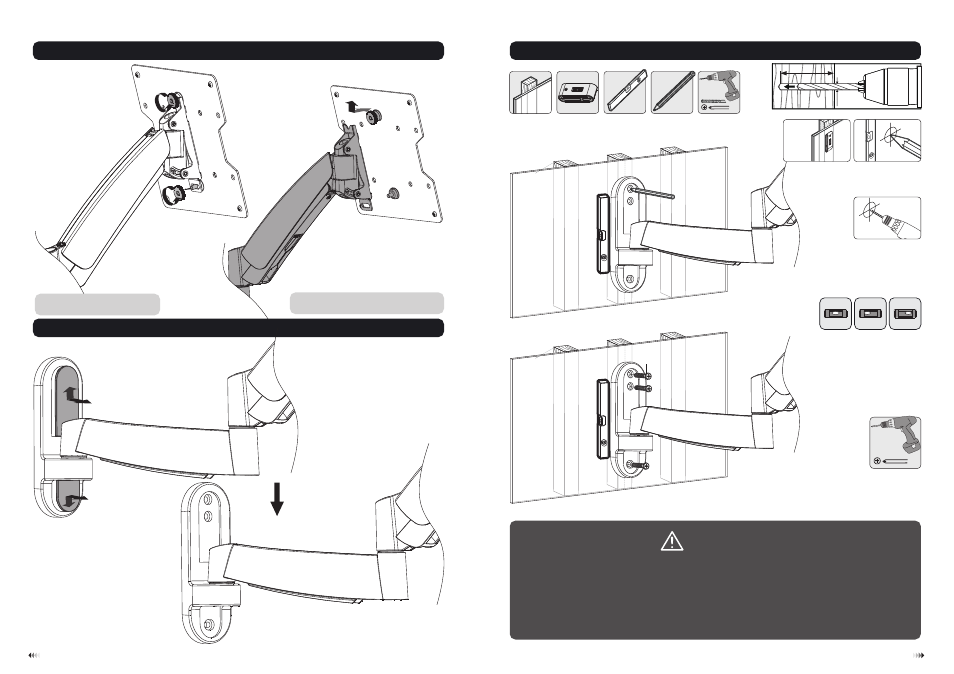

2. Remove the Decorative Covers
1. Separate VESA Plate from Wall Mount
·
Loosen the upper nut,
·
Remove the lower flat nut.
Remove VESA plate .
2
ø 4.5mm
(ø 3/16")
55mm
(2.2")
55mm
2.2"
(
)
55mm
(2.2")
WARNING
• Make sure that mounting screws are anchored into the center of the studs. The use of a stud
finder is highly recommended.
• Installers are responsible to provide hardware for other types of mounting situations.
• Installers must verify that the supporting surface will safely support the combined load of the
equipment and all attached hardware and components.
3a. Mount on Wood Stud Wall
Drill pilot holes
3
Screw the wall
mount onto
the wall
X
X
√
W-A
Find and mark the
exact location of
mounting holes
1
