Flaming River Rack and Pinion Installation
3)

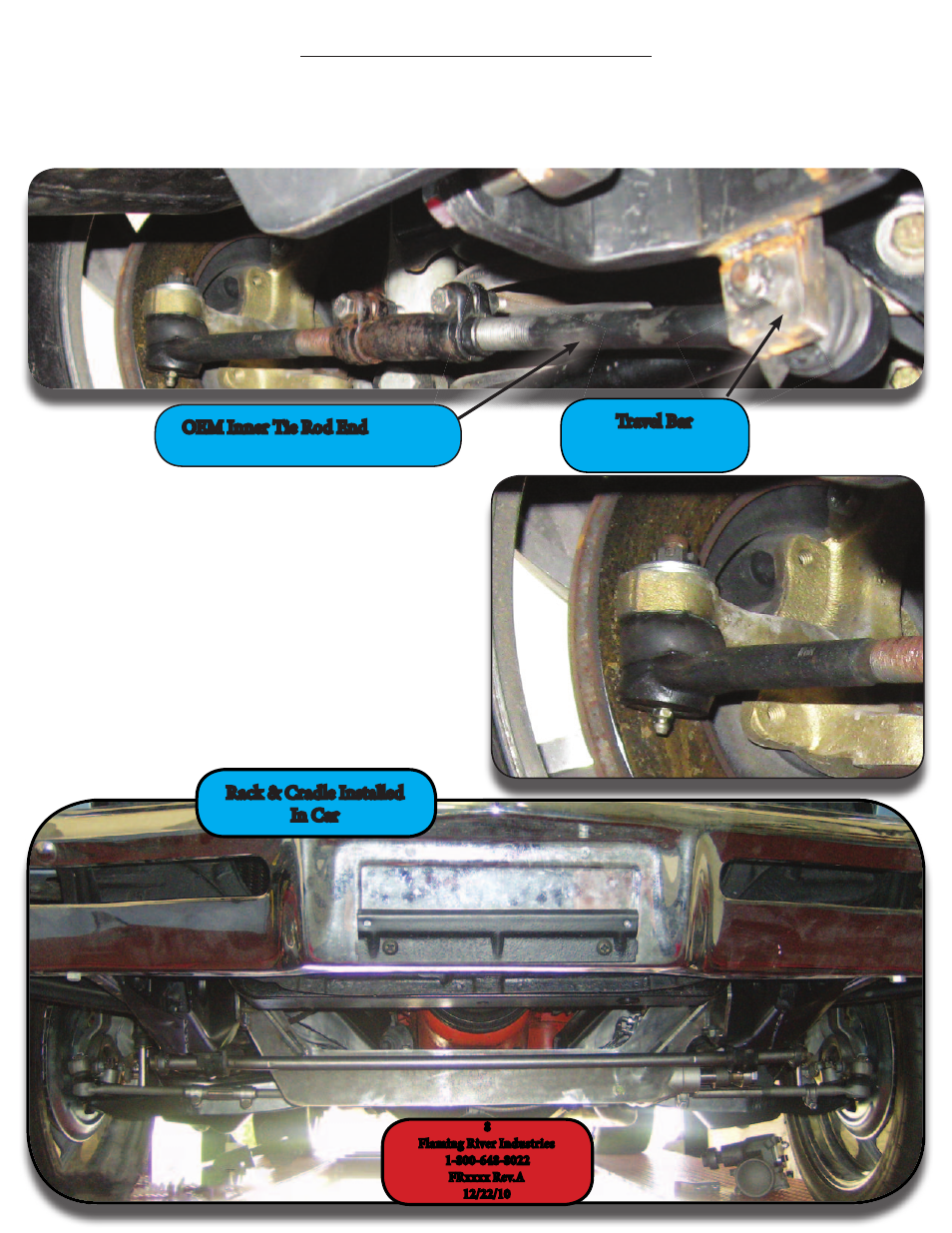

Install the OEM inner tie rod end into the Flaming River Travel Bar. Note: If using the original parts
some adjustment of the tie rod assembly may be required when connecting the to the spindle arm
and the travel bar.
OEM Inner Tie Rod End
Travel Bar
4)
To install the outer tie rod end into the
spindles you must load the front sus-
pension. Securely place jack stands un-
der the lower control arms and lowering
the car onto the jack stands. Make
sure that your wheels are centered,
then install the outer tie rod into the
spindle arms and tighten the
castle nuts to 30-40ft lbs. Make sure to
install the cotter pins through the castle
nut and tie rod end and bend the
tabs over.
Rack & Cradle Installed
In Car
