4. REMOTE CONTROL OPERATION
The TLP 1 Universal Remote Control has all of the
same functions as the front panel buttons and is
operated in a similar way, but there are some
differences. Please take the time to read this
section to fully understand all the functions of the
TLP 1 Remote Control.

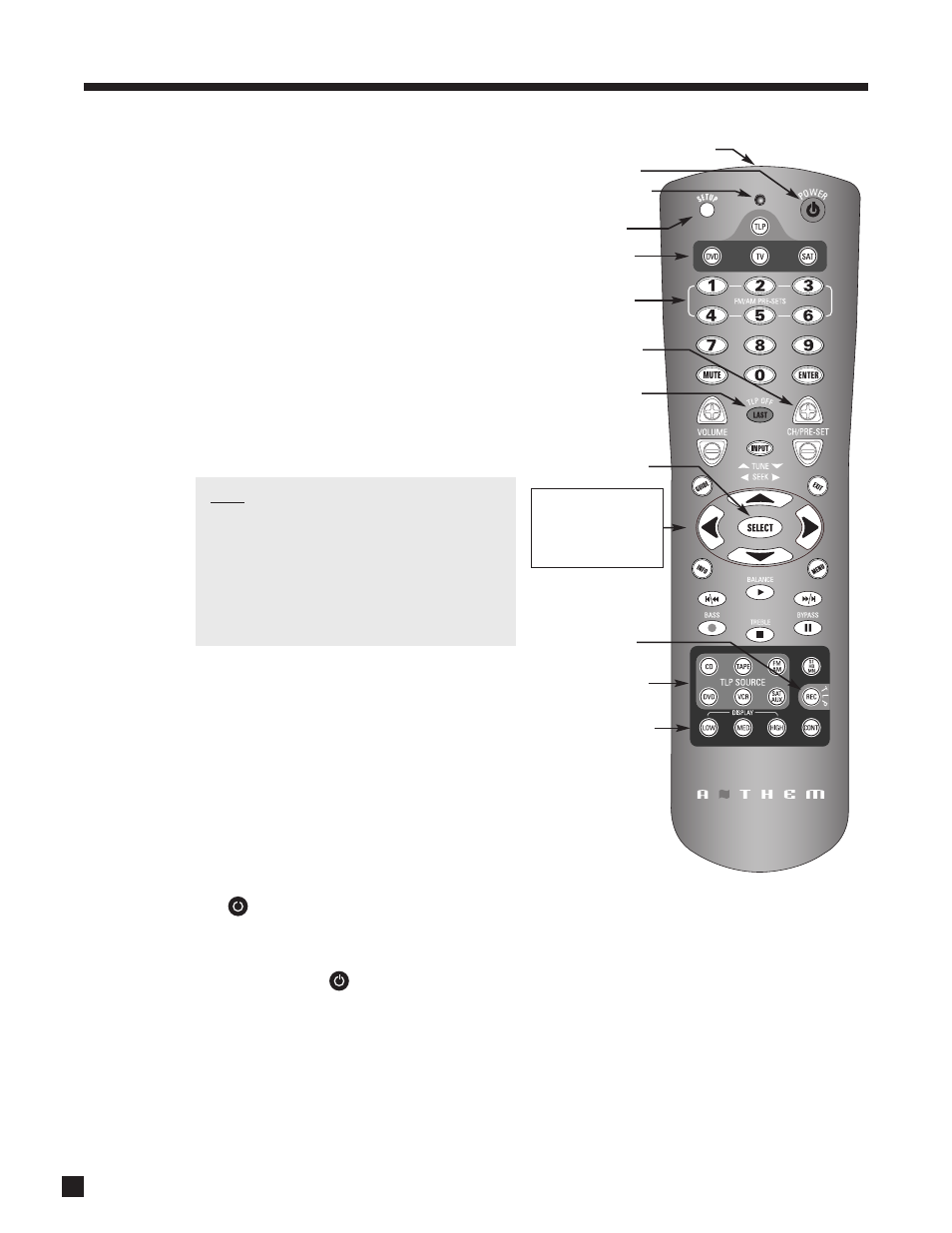

The keys labeled in this illustration show those that
have a different method of operation from their
front panel counterparts. Those shown in bold
italics indicate keys that are unique to the Remote
Control and not found on the Front Panel. For a
detailed layout diagram see section 2.4.
Before we get started, we have to give the remote
a little attitude adjustment – set the ‘personality’ to
TLP by pressing TLP Control Mode key near the top
of the remote.
Note: The Control Mode keys do not transmit
any commands. They only determine where
subsequent commands are sent. For example,
if TV is selected followed by CH+, the channel
changes on your TV while the TLP 1 and all
other components remain unaffected (see
section 4.3.1 and Appendix A to set up reset
memory codes).
Did we forget to mention the batteries? They go in
by taking off the rear cover – remember polarity.
Down the road, if the LED blinks twice each time a
command is sent and the TLP 1 doesn’t respond, it’s
an indication that the batteries need replacement.
4.1
POWERING THE TLP 1 ON AND OFF
Separate power commands are a requirement in
custom multi-zone installations, and for this reason
two different keys are used to turn the TLP 1 ON
and OFF.
The
power key in the top right corner turns the TLP 1 Power ON. The red TLP OFF key in towards the
middle turns the TLP 1 Power OFF.
The TLP 1 is turned ON and OFF as follows:
• ON: Press
.
• OFF: Press TLP OFF.
4.2
DIRECT FM•AM STATION ENTRY (Remote Control Only)
When using the FM•AM Tuner, the station frequency can be entered as a four-digit number. For example, to
tune into 98.3 FM, press and hold SELECT until the display shows “
press 0, 9, 8, 3.
16
Control Mode
RECORD Path
IR Transmitter
Power ON
Transmission Indicatior
Setup Mode
TLP 1 Power OFF
Display Brightness
Source Selection
• FM•AM Seek / Tune
• Bass/Treble / Balance
Adjustments
• Input Level Adjustment
FM•AM Presets
UP / DOWN
FM•AM Presets
FM•AM Direct Entry
