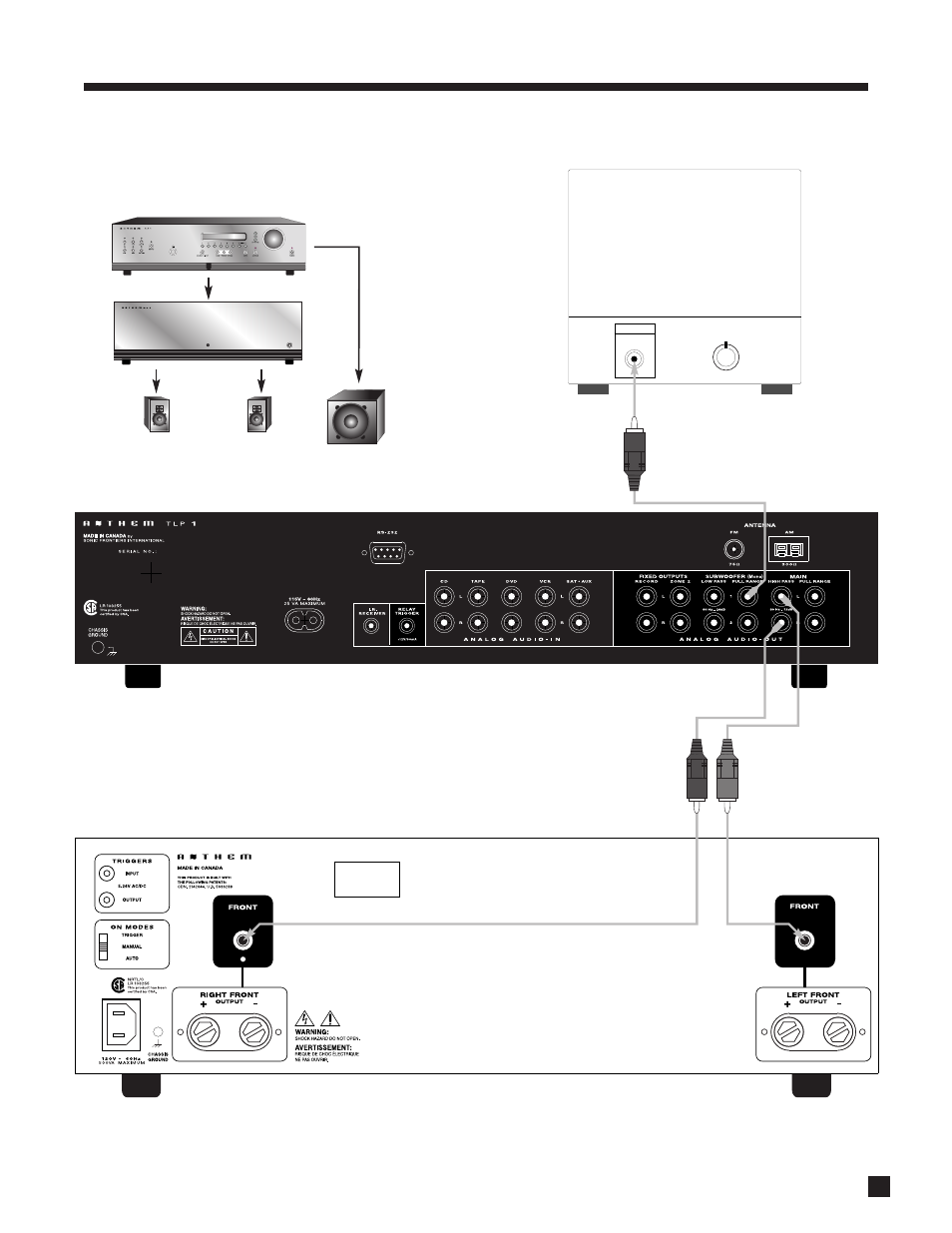

TLP 1 to Amplifier and Powered Subwoofer – Small Speakers
2. CONNECTIONS AND LAYOUT
continued …
PO
WER
Note:
If subwoofer does not have a
built-in crossover, use Low Pass
output instead of Full Range.
