Page 11

2.2.1

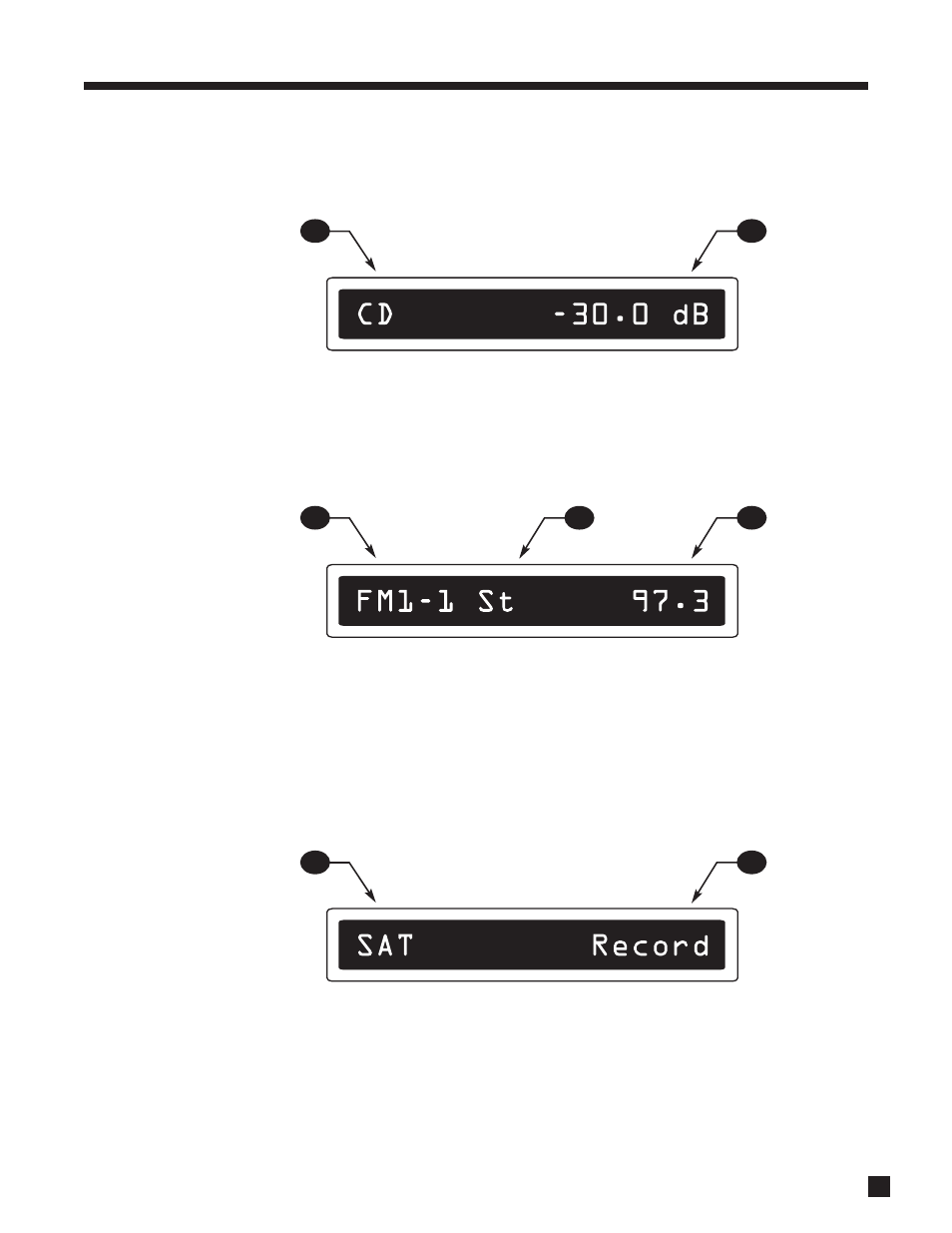

FRONT PANEL DISPLAY

Main Display Example:

1 –

Source selection.

2 –

Volume setting. When muted, “Muted” flashes instead of the current volume setting.

FM•AM Display Example:

1 –

Source+Bank. The tuner has three FM banks (FM1, FM2, and FM3) and one AM bank. The number
after the selected bank is the preset station.

2 –

FM mode. Displays “St” when in stereo, “HB” when Hi-Blend is selected, or “Mn” when in mono or
mono is selected.

3 –

Currently tuned FM•AM frequency to the nearest 0.1 MHz for FM and to nearest 10 kHz for AM.

Record Display Example:

1 –

Source selection.

2 –

Record path indication. Note that the selection time lasts approximately 3 seconds, after which the
normal display returns.

2. CONNECTIONS AND LAYOUT

continued …
