Assembly instructions – Yetter 2961-012 Cut and Feed Coulter/Fertilizer User Manual
Page 9
9
ASSEMBLY INSTRUCTIONS
2961 – CUT AND FEED™

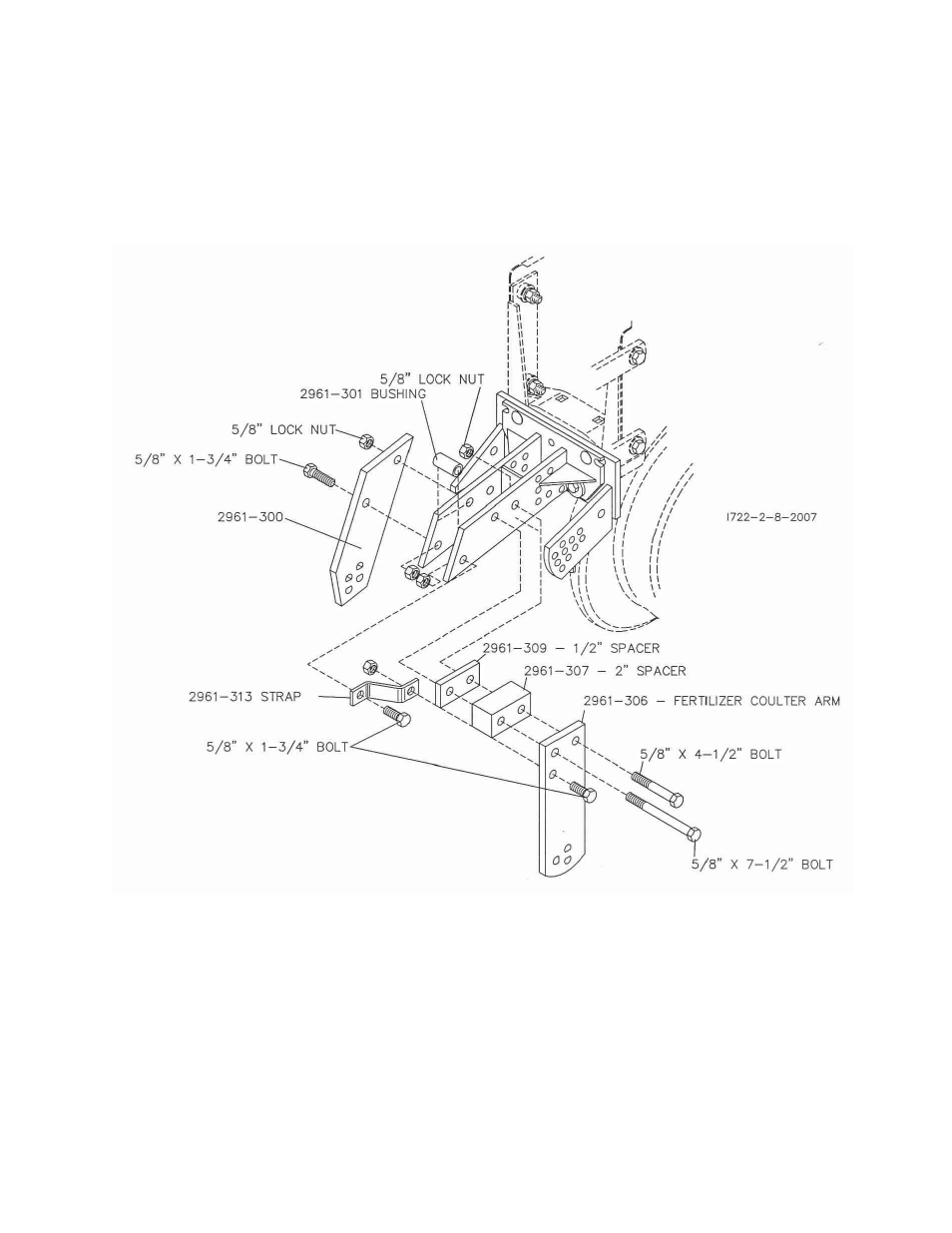

STEP 2.
Coulters can be assembled as right hand or left hand units. Attach the 2961-300 coulter arm
and the 2961-306 fertilizer coulter arm to the 2961-200 coulter bracket using the 5/8” x 7-1/2” bolt, 2961-307
2” spacer, 2961-309 ½” spacer (optional), 2961-301 spacer bushing and 5/8” lock nut. Also, on the 2961-
306-fertilizer arm use the 5/8” x 4-1/2” bolt and lock nut. On the 2961-300-coulter arm use the 5/8” x 1-3/4”
bolt and lock nut.
