Assembly instructions – Yetter 2961-012 Cut and Feed Coulter/Fertilizer User Manual
Page 13
13
ASSEMBLY INSTRUCTIONS
2961 – CUT AND FEED™

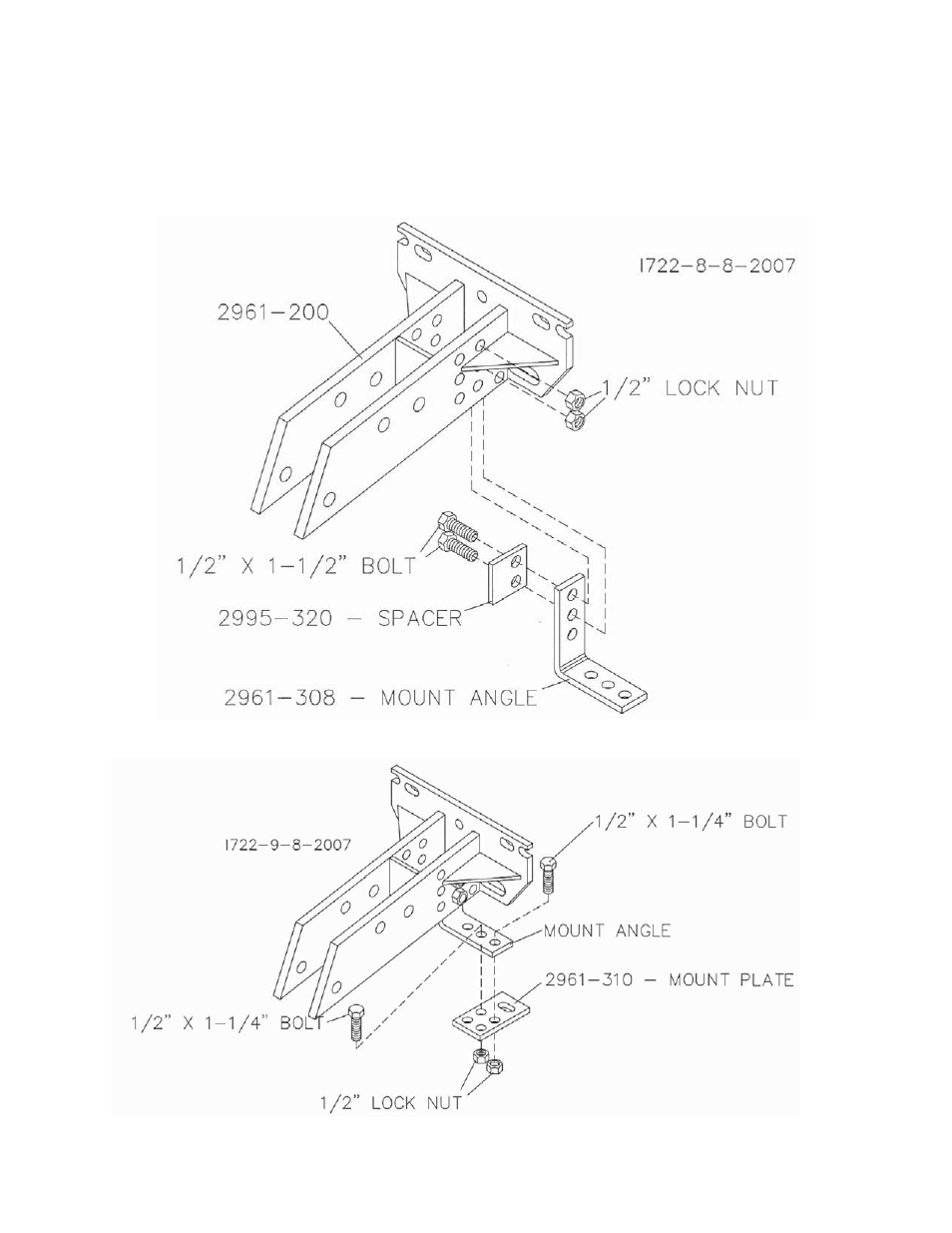

STEP 9.
Attach the 2961-308 Injector Mount Angle to the 2961-200 Coulter Bracket using the 2) ½” x 1-
1/2” bolts, 2995-320 Spacer and ½” lock nuts.
STEP 10.
Attach the 2961-310 Injector Mount Plate to the Injector Mount Angle using the 2) ½” x 1-1/4”
bolts and lock nuts.
