Assembly instructions – Yetter 2961-012 Cut and Feed Coulter/Fertilizer User Manual
Page 14
14
ASSEMBLY INSTRUCTIONS
2961 – CUT AND FEED™

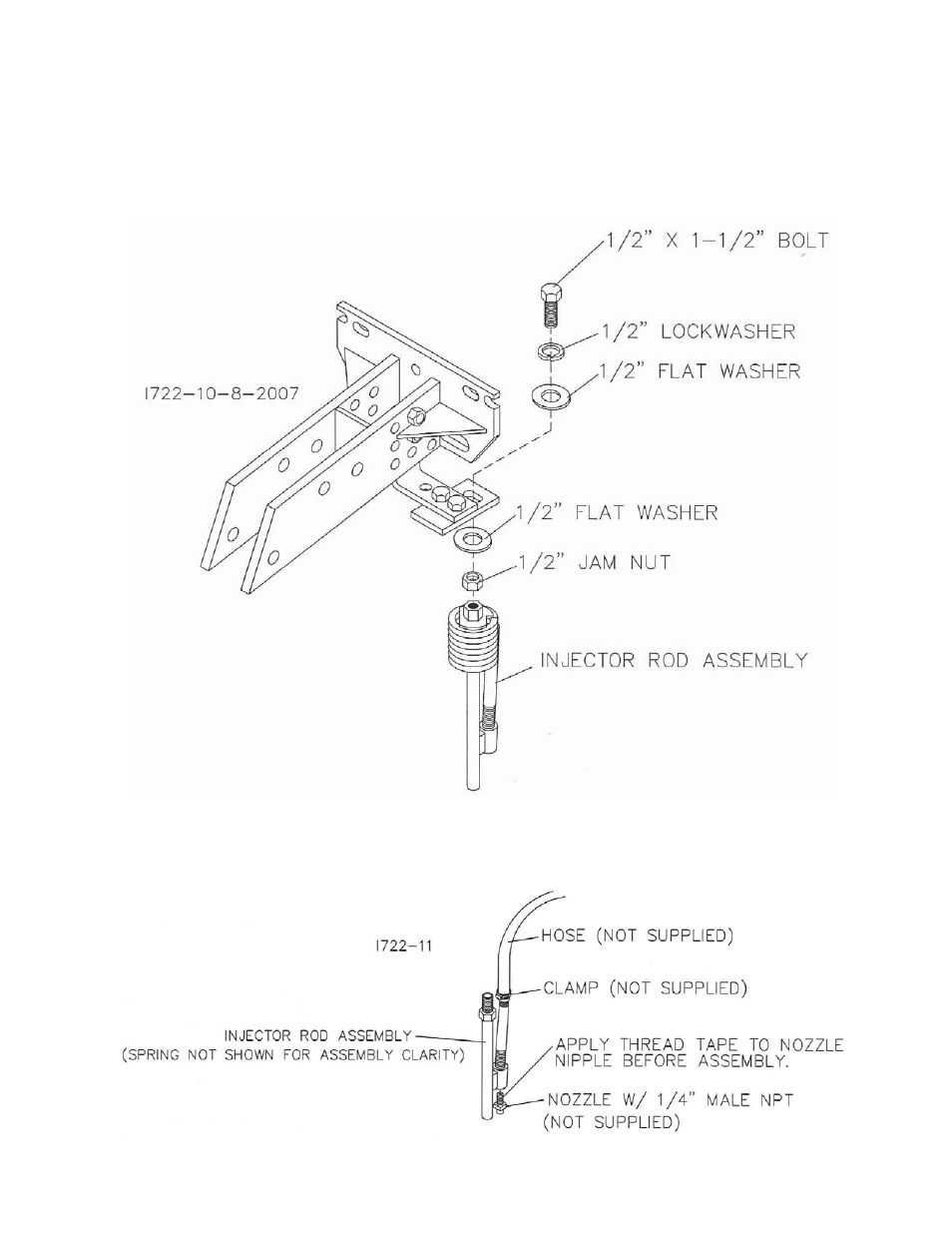

STEP 11.
Attach the Injector Rod Assembly to the Mount Plate using the ½” x 1-1/2” bolt, lock washer, 2)
½” flat washers and ½” jam nut. Align the Injector Rod with the coulter blade then securely tighten all
hardware.
STEP 12.
At the pipe coupler on the Injector Rod install the injector tip (NOT SUPPLIED). Injector tips
can be ordered through an implement dealer or fertilizer equipment dealer. Also install the hose clamp and
fertilizer hose to the pipe nipple. Calibrate the fertilizer pump and tips to maximum recommended pressure
of 30 p.s.i. and minimum 20 p.s.i.
