Page 10

10
ASSEMBLY INSTRUCTIONS
2961 – CUT AND FEED™

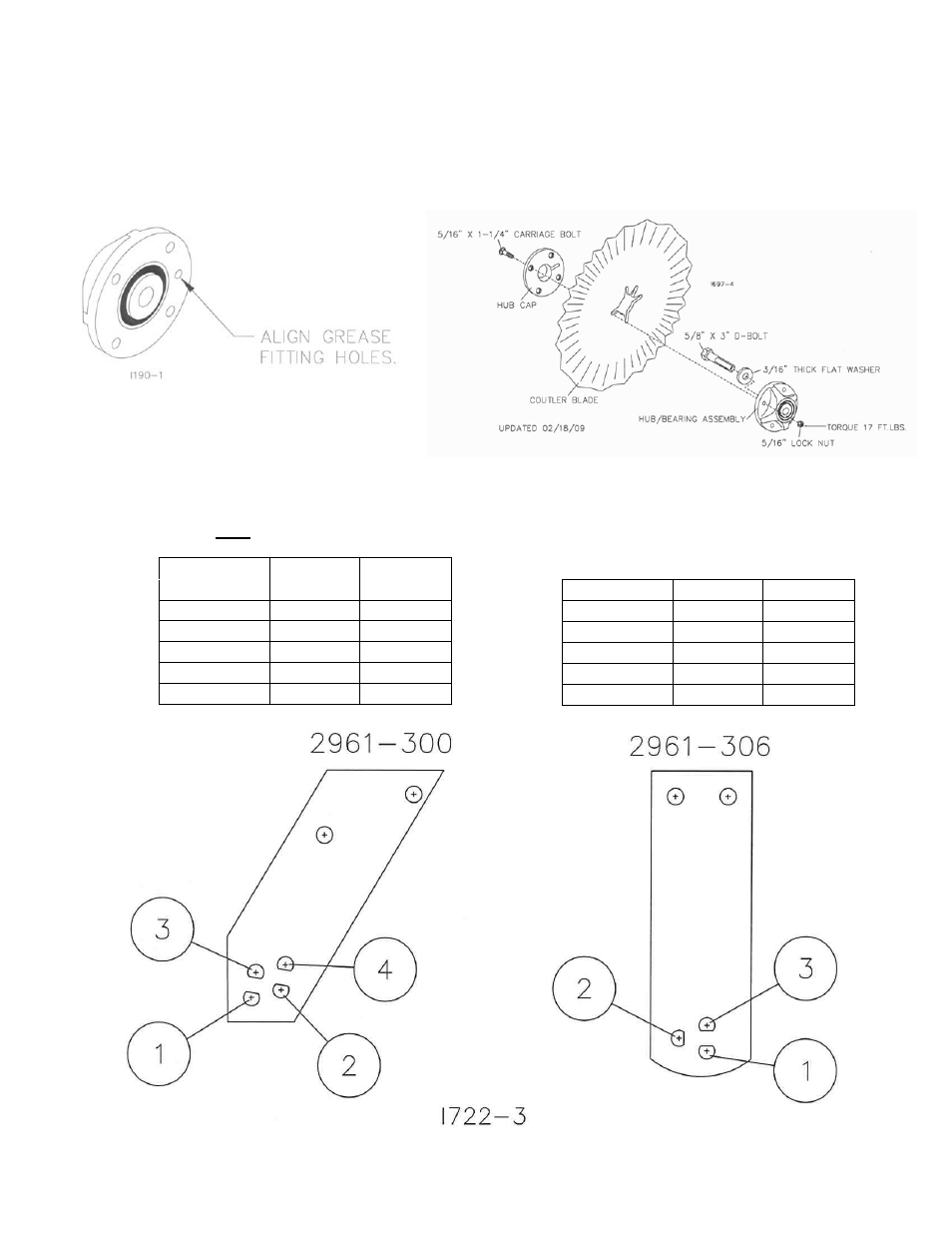

STEP 3.
Assemble the 5/8” x 3” d-bolt, 3/16” thick flat washer onto the hub/bearing. Now attach the
blade and hub cap to the hub/bearing assembly using 4) 5/16” x 1-1/4” carriage bolts and lock nuts.
NOTE: When assembling the blade, hubcap and bearing hub, be sure the slot in the blade is in alignment
with small hole in bearing hub and groove on inside of hubcap.
STEP 4.
Determine the depths that the coulter blades need operated. Use the chart below to determine
the hole location that the coulter blade needs to be assembled into. NOTE: The coulter blade depths are
compared to a level planter with 15” opener blades.
2961-300
BLADE DIA.
13" BLADE
14" BLADE
HOLE LOCATION
1
EVEN WITH
1/2" BELOW
2 1/2"
ABOVE
EVEN
WITH
3
1" ABOVE
1/2" ABOVE
4
1-1/2" ABOVE
1" ABOVE
2961-306
BLADE DIA.
13" BLADE
14" BLADE
HOLE LOCATION
1
1' BELOW
1-1/2" BELOW
2
1/2" BELOW
1" BELOW
3
EVEN WITH
1/2" BELOW
