Yetter Avenger 30 Coulter User Manual
Page 8
8
KNIFE ADJUSTMENT
The adjustment of knife clearance to the blade is critical to trouble free operation of the coulter, in certain
conditions the coulter can “plug” in just a few feet if not correctly adjusted.
1. The disc blade must run concentric. Adjust by loosening six hub nuts and centering the blade.

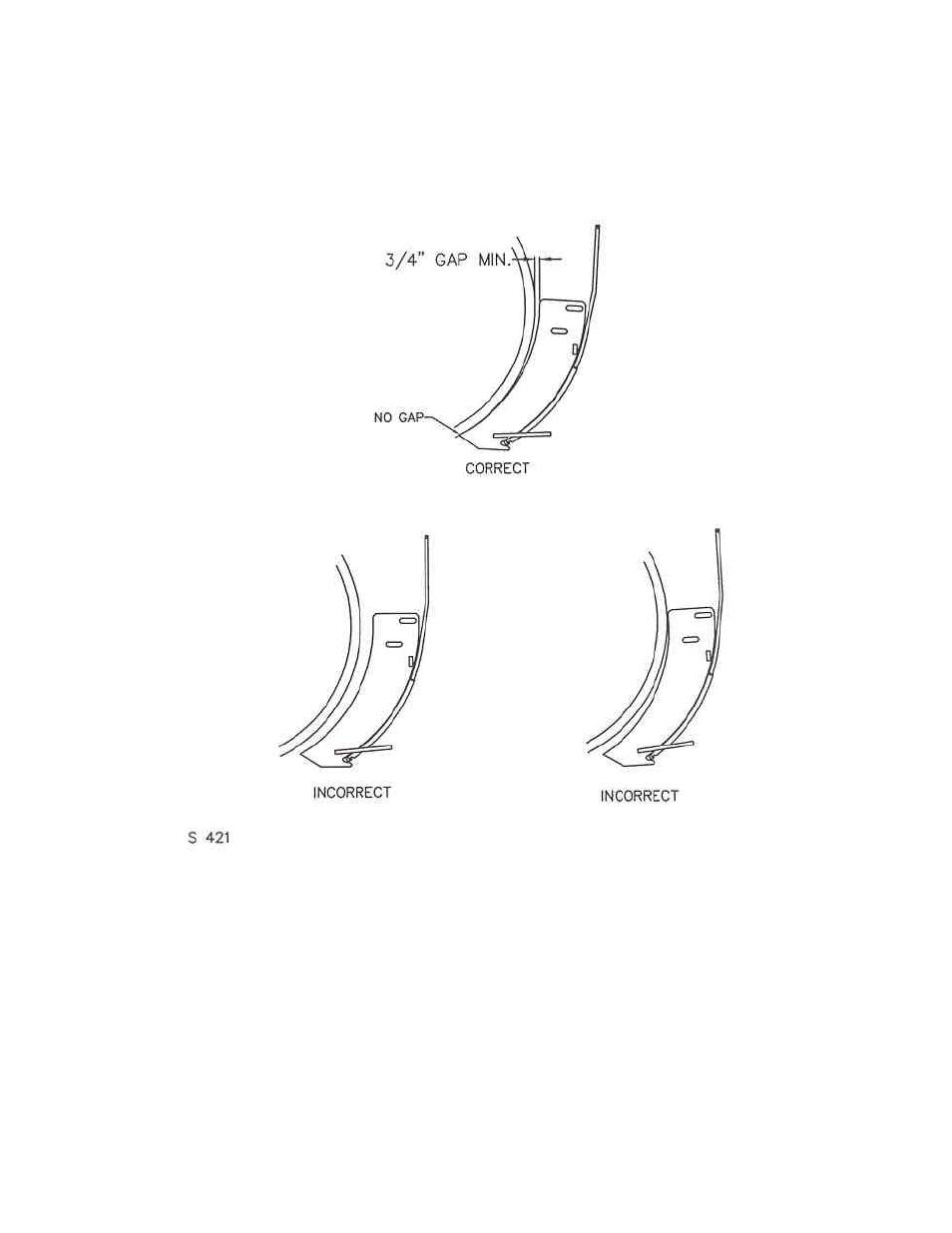

2. Set knife to rub slightly on blade, especially at bottom of knife. See illustrations above. Tighten NIF-
LOK nuts to 120 ft/lbs. by using the wrench on both the bolt head and the nut.
3. Adjust the 5/8” x 2 ½” bolt down against the stop of the knife to lock the knife in place, tighten the jam
nut to secure bolt.
