ASSEMBLY INSTRUCTIONS
STEP 14. The coulter assembly is now ready to be mounted to the toolbar frame. YETTER suggests that
mounting of the coulters start at the center of the front toolbar using RIGHT HAND coulter assemblies. At
this time the 3-point hitch should already be mounted on the toolbar, if not, mount the 3-point hitch now.
After hitch is mounted, the coulter spacing should be marked out on the toolbar. For 12” opener spacing
the RIGHT HAND coulters mounted on the front bar will be spaced 24” on center. An example for even
numbers of openers is shown in the illustration below.

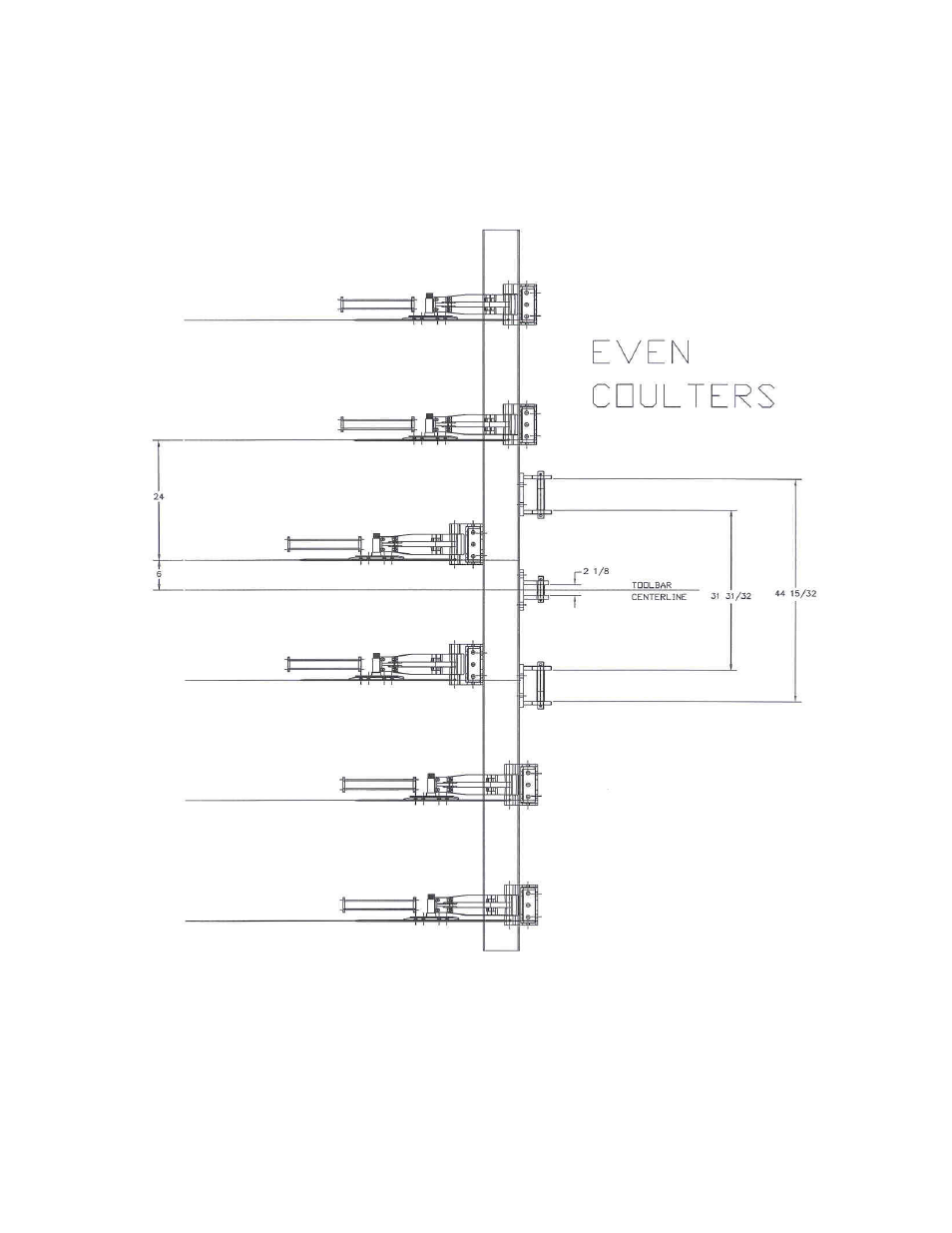

ILLUSTRATION SHOWN FROM TOP VIEW OF 12’ TOOLBAR WITH DIMENSIONS SHOWN TO BLADE CENTERS
Attach the coulter to the toolbar using the (4) ¾” x 12” hex head bolts, 2986-306 straps, ¾” lock washers
and ¾” hex nuts. (assembly view shown clearly in STEP 1.)
NOTE: I n the hitch area, the opener may use the same bolts as the 3-point hitch plates.
Once the coulters are mounted at the desired location and spacing, tighten the ¾” bolts to 300 ft/lbs.
