- 3 -

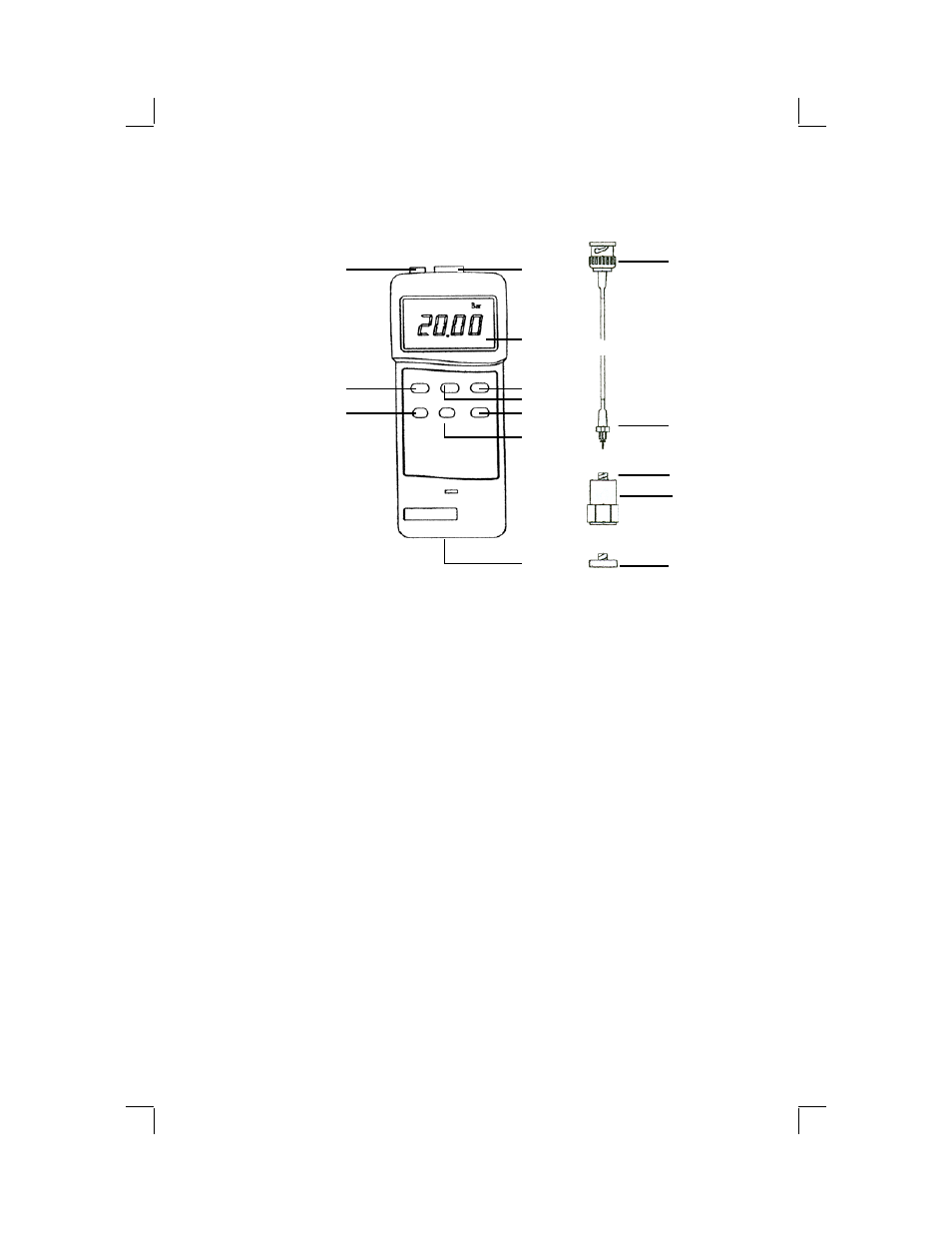

II. PANEL DESCRIPTION (fig. A)
III. OPERATING INSTRUCTIONS
A. GENERAL MEASUREMENT PROCEDURES
1. Attached the BNC PLUG (A11) to the BNC SOCKET (A10).
2. Attached the MINI PLUG (A12) to the INPUT SOCKET (A13).
3. a. Acceleration (ACC) Measurement:
Switch the ACC/VEL SELECTOR (A7) to the "ACC" position.
b. Velocity (VEL) Measurement:
Used for general industrial vibration. Switch the ACC/VEL
SELECTOR (A7) to the "VEL" position.
4. Switch the RMS/PEAK SELECTOR (A4) to the "RMS" position.
5. Press the POWER BUTTON (A2) once to turn on the meter.
1. DISPLAY
2. POWER BUTTON
3. HOLD BUTTON
4. RMS/PEAK SELECTOR
5. RECORD BUTTON
6. RECALL BUTTON
7. ACC/VEL SELECTOR
8. BATTERY COVER
9. RS232 OUTPUT TERMINAL
10. BNC SOCKET
11. BNC PLUG
12. MINI PLUG
13. INPUT SOCKET
14. VIBRATION SENSOR
15. MAGNETIC BASE
9
2
5
11
12
13
14
15
10
1
4
3
7
6
8
