Getting Started
AT85DVK-07 Demonstration Firmware User’s Manual 2-5
7687C–MP3–09/07
2.2 Keypad

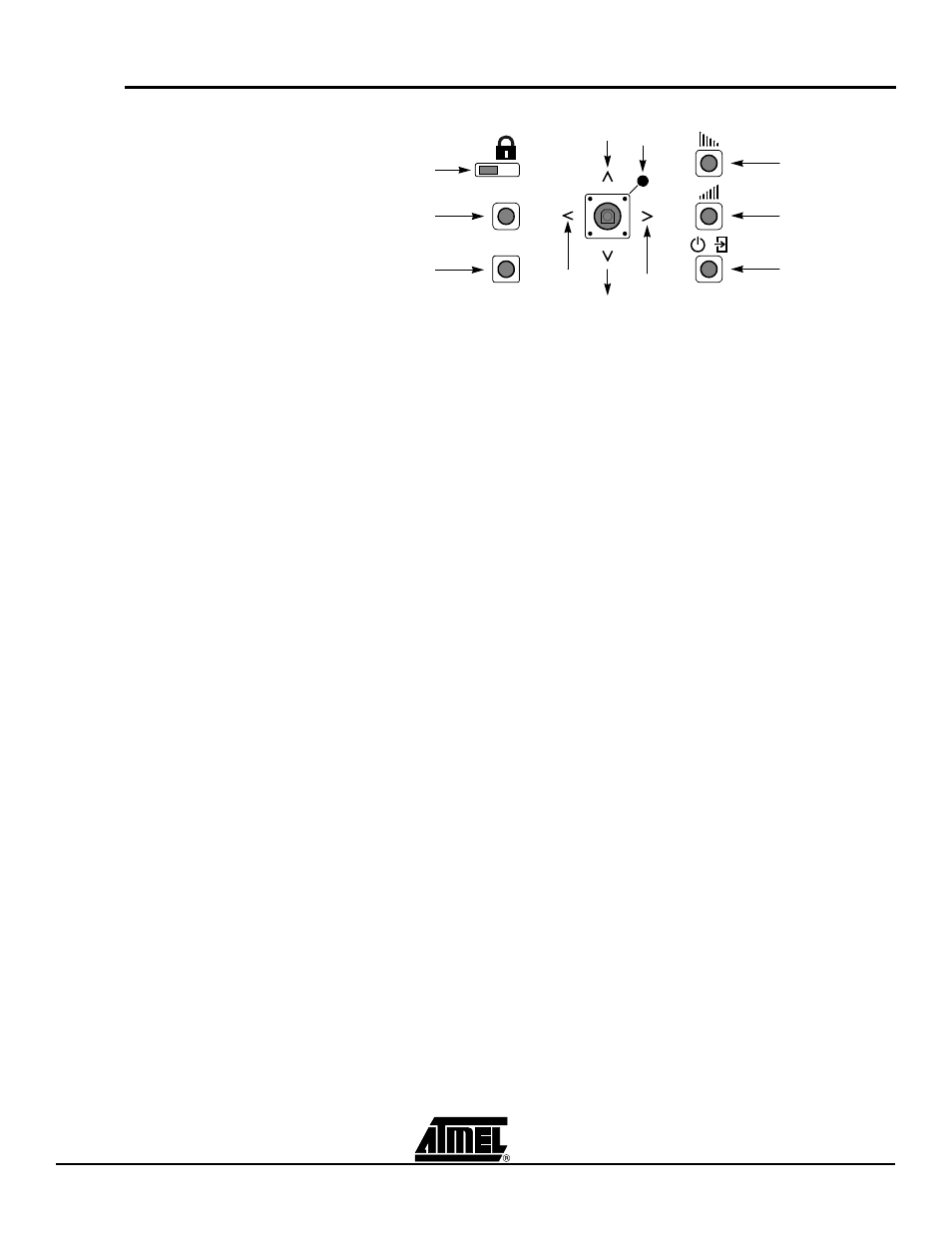

Description The following figure shows the basic key functions.
• Lock: this switch is the keypad hold function: push right to lock, left to unlock.
• F1: this is special key whose function depends on the operating modes.
• Vol Up: press to increase the sound volume.
• Vol Down: press to decrease the sound volume.
• Menu: this key displays a contextual graphical menu. The icons displayed in this
menu vary depending on the operating mode. Refer to the Section 3 for further
information.
• Power On: this key is used to power-up the system when a battery is inserted in its
socket.
• Joystick: this mini joystick has 5 functions: Up, Down, Right, Left, Select which vary
depending on the operating mode. Select corresponds to the joystick center
pressing.
F1
F2
Right
Power On
Vol Up
Vol Down
Menu
Lock
Function F1
Left
Down
Up Select
