Chapter 1. General

24

T1 CSU ACE User Manual

61203022L1-1B

ALARMS

The T1 CSU ACE provides five LED alarms on the front of the unit to
help troubleshoot the communication channel. See Figure 4.
The alarm descriptions are as follows:

The

POWER

LED shows that the unit is receiving power.

The

SYNC

LED indicates signal is present on both the Network

and the Equipment interface.

NET LOS

indicates loss of signal (LOS) from the network.

NET MAN LB

indicates a network loopback has been activated

manually from the rear panel.

NET RMT LB

indicates a network loopback has been activated

over the network.

EQ LOS

is illuminated when there is a loss of signal on the equip-

ment side.

EQ MAN LB

indicates a loopback on the equipment side has been

activated manually from the rear panel.

EQ RMT LB

indicates a loopback sequence has been detected

from the equipment side.

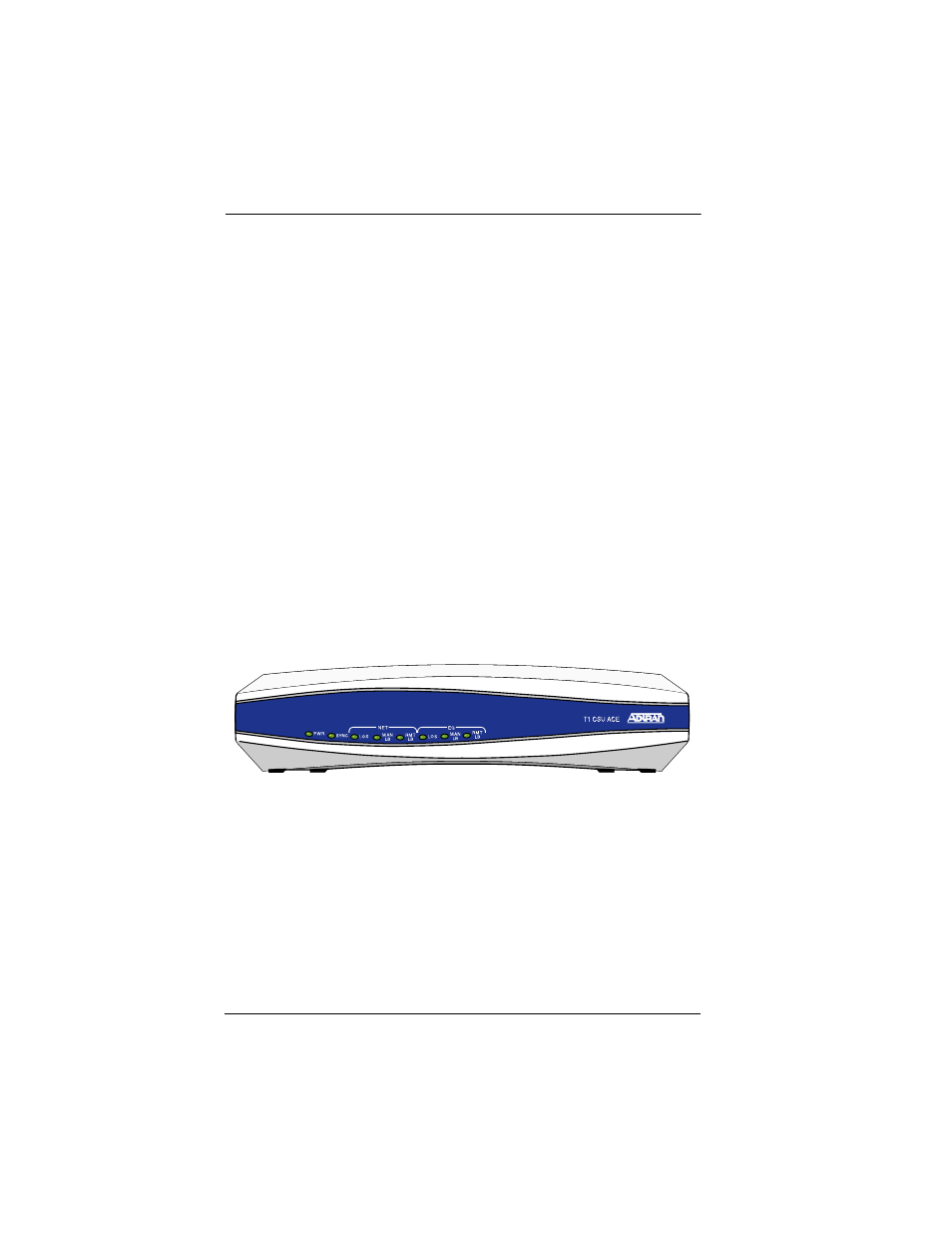

Figure 4. T1 CSU ACE LED Alarms
