THESE INSTRUCTION SHEETS ARE INTENDED AS REPRESENTATIONS ONLY. JESEL IS IN NO EVENT LIABLE FOR CONSEQUENTIAL DAMAGE,
INSTALLATION COST OR OTHER COST OF ANY NATURE. NO REPRESENTATIVE IS AUTHORIZED TO ASSUME FOR JESEL ANY OTHER LIABILITY
IN CONNECTION WITH ANY JESEL PRODUCT. NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS.
BEL-30960 20mm 61 HTD
BEL-30970 20mm 69 HTD
BEL-30990 25mm 61 HTD
BEL-31010 25mm 69 HTD
BEL-31032 25mm 61 HTD II
BEL-31045 25mm 63 HTD II
BEL-31052 27mm 68 HTD II
BEL-31060 25mm 71 HTD
BEL-31070 27mm 72 HTD II
BEL-31072 27mm 74 HTD II
BEL-31075 25mm 74 HTD II
BEL-31100 25mm 65 HTD

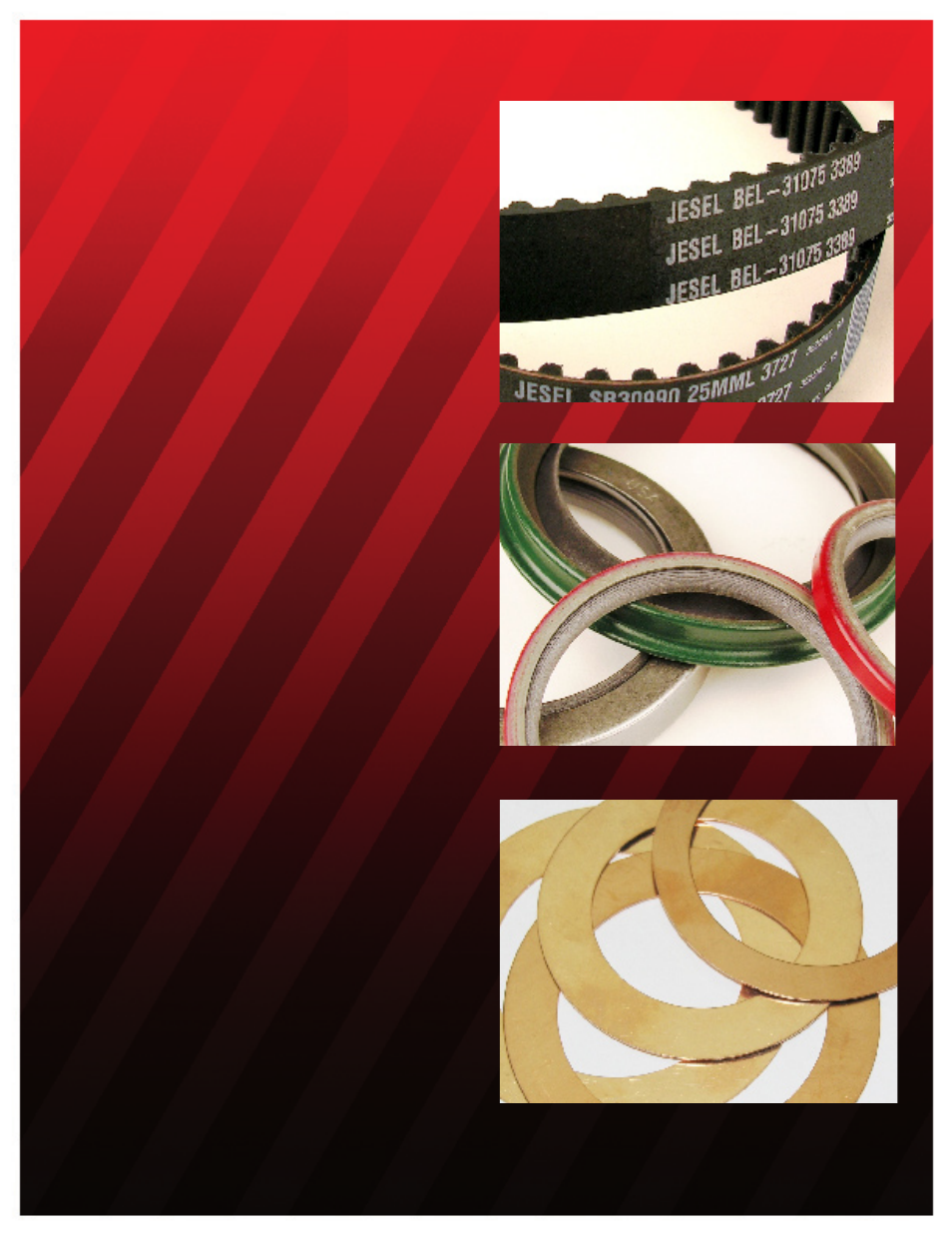

SERVICE PARTS
PART BELT TOOTH
NUMBER WIDTH TEETH DESIGN
SEL-37100 3.255” .375” RUBBER
SEL-37200 2.500” .215” TEFLON®
SEL-37250 3.253” .400” TEFLON®
SEL-37300 3.195” .320” TEFLON®
SEL-37700 2.750” .375” RUBBER
SEL-38000 2.632” .250” TEFLON®
SEL-38100 3.005” .310” TEFLON®
NOTE: FOR PROPER BREAK-IN, KEEP ALL
TEFLON® SEALS DRY DURING INSTALLATION.
DO NOT USE ANY TYPE OF LUBRICATION ON
SEAL SURFACES.
PART SEAL
NUMBER O.D. WIDTH MATERIAL
WSH-39600 2.950” 1.875” .031”
WSH-39610 2.950” 1.960” .031”
WSH-39620 2.950” 2.010” .031”
WSH-39624 3.313” 1.645” .031”
WSH-39625 3.325” 2.365” .031”
WSH-39630 2.950” 1.575” .031”
WSH-39660 2.950” 2.260” .031”
WSH-39665 3.325” 2.260” .031”
PART
NUMBER O.D. I.D. THICKNESS
TIMING BELTS
SEALS
BRONZE THRUST WASHERS
