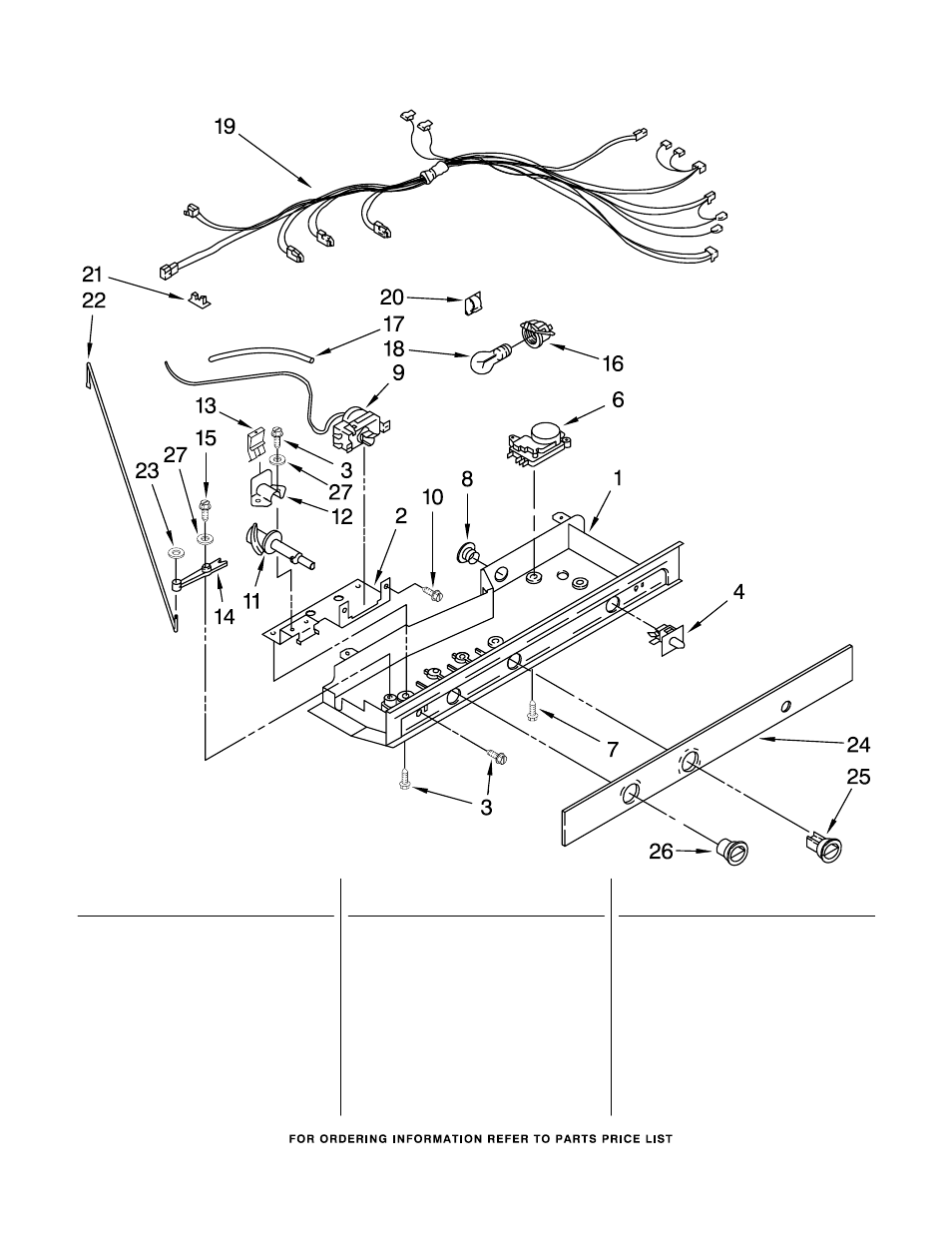

CONTROL PARTS
18
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
W10182979
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
2200137 Control Box
2
1110629 Mounting Bracket
3
3196537 Screw (4)
4
2149705 Light Switch
6
2188375 Defrost Timer
7
489398 Screw (2)
8
940014 Hole Plug
9
2198202 Thermostat
Assembly
10
487869 Screw
11
2182195 Cam Assembly
12
1110560 Bearing Body
13
2196062 Clip, Damper
Control
14
1110559 Pivot Arm
15
627068 Screw
16
2162085 Light Socket
17
2196001 Thermostat,
Barrier
18
527949 Light Bulb
19
2206512 Control Box
Harness
20
1115374 Clip, Wiring
21
1115375 Clip, Wiring
22
1123960 Connecting Rod
23
489285 Fastener, Push−On
24 W10127380 Escutcheon,
Control Box
25
2182111 Thermostat knob
26
2197871 Knob, Air Control
27
489203 Spring Washer
