Amana ASD2522VRS00 - Manual (Page 17)

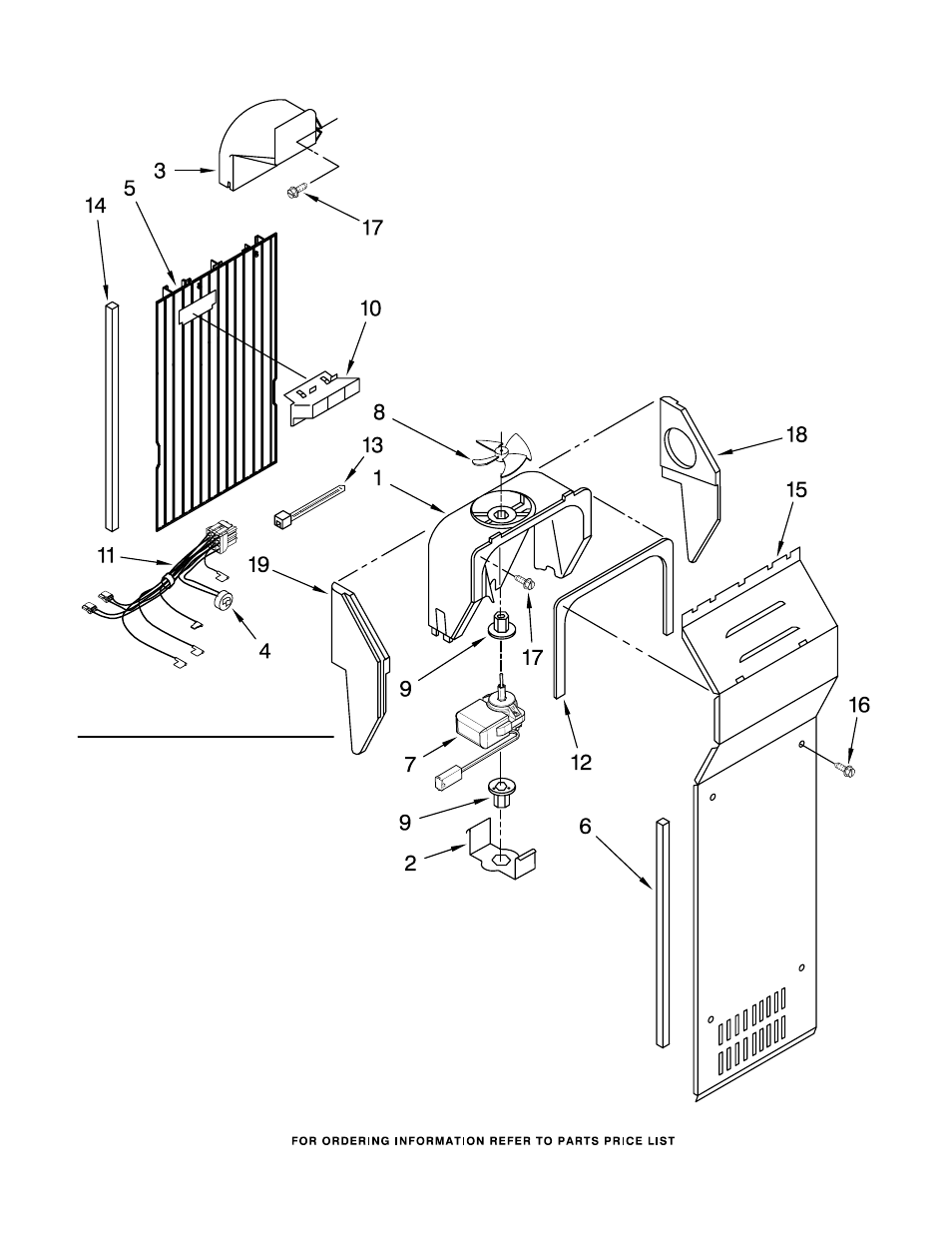

AIR FLOW PARTS
17
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
W10182979
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2161231 Air Scoop
4 2321799 Bi−Metal, Defrost
5 2203593 Air Duct Freezer
6 2304241 Gasket
7 W10131845 Fan Motor
8
2169142 Fan Blade
9 2176759 Fan Grommet (2)
10 2182146 Duct, Icemaker
11 W10129821 Harness, Fan
Evaporator
(Includes #4)
12 2155789 Gasket Cover
13 2172840 Wire Tie
14 2203876 Gasket
15 2203841 Cover, Evaporator
16 8281159 Screw
17 489478 Screw
18 2203595 Support, R.S
19 2203596 Support, L.S
