26 | PIM 21 User’s Manual
Addendum - Data Acquisition Software
2 Installation
2.1 USB Flash Drive
1) Insert the flash drive containing the installation software into the USB port on the comput-
er. The “Boonton Software” popup dialog box should appear. (Figure 1 – Boonton software)
Select the item: “Install Boonton PIMT Software using the program provided on the device”.
Click “OK”. If this dialog fails to appear, proceed to Manual start from USB Flash Drive

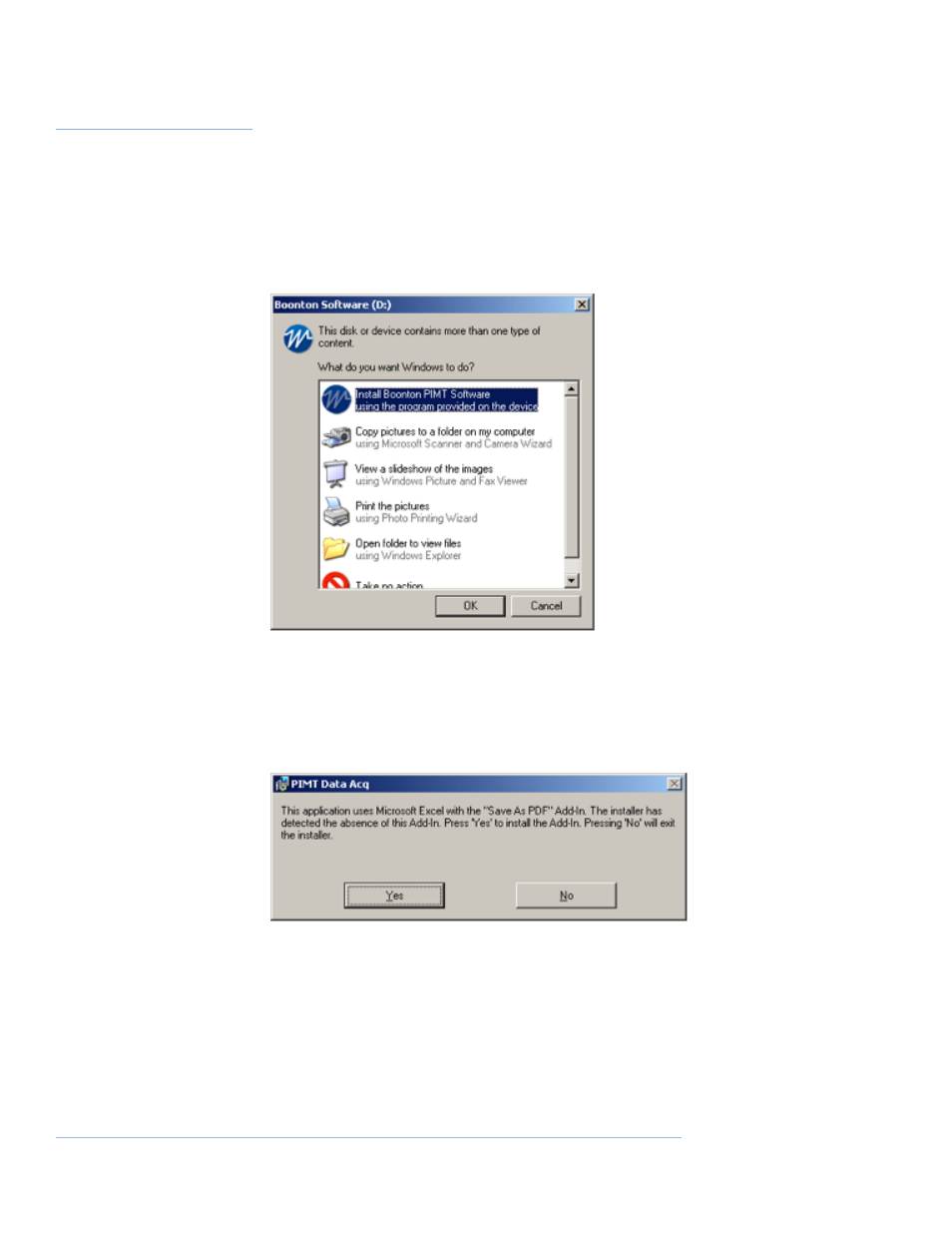

Figure 1 - Boonton Software
The Windows installer will start. (Figure 2 – ‘Welcome’ dialog box) Click ‘Next’ to proceed with
the installation. If the Add-In dialog box appears (Figure 3 - PIMT Data Acq.), proceed to step
Installing the prerequisite Add-In.
Figure 2 - PIMT Data Acq.
