Ashland I-130TS2 User Manual
Page 19
9
3
4
2
COUNTER BALANCE
SEQUENCE
IMPORTANT: This Hyd. Manifold has been re-
placed by A125070 on Nov 2003. To confirm which
valve you have, confirm with earlier valve I.D. page

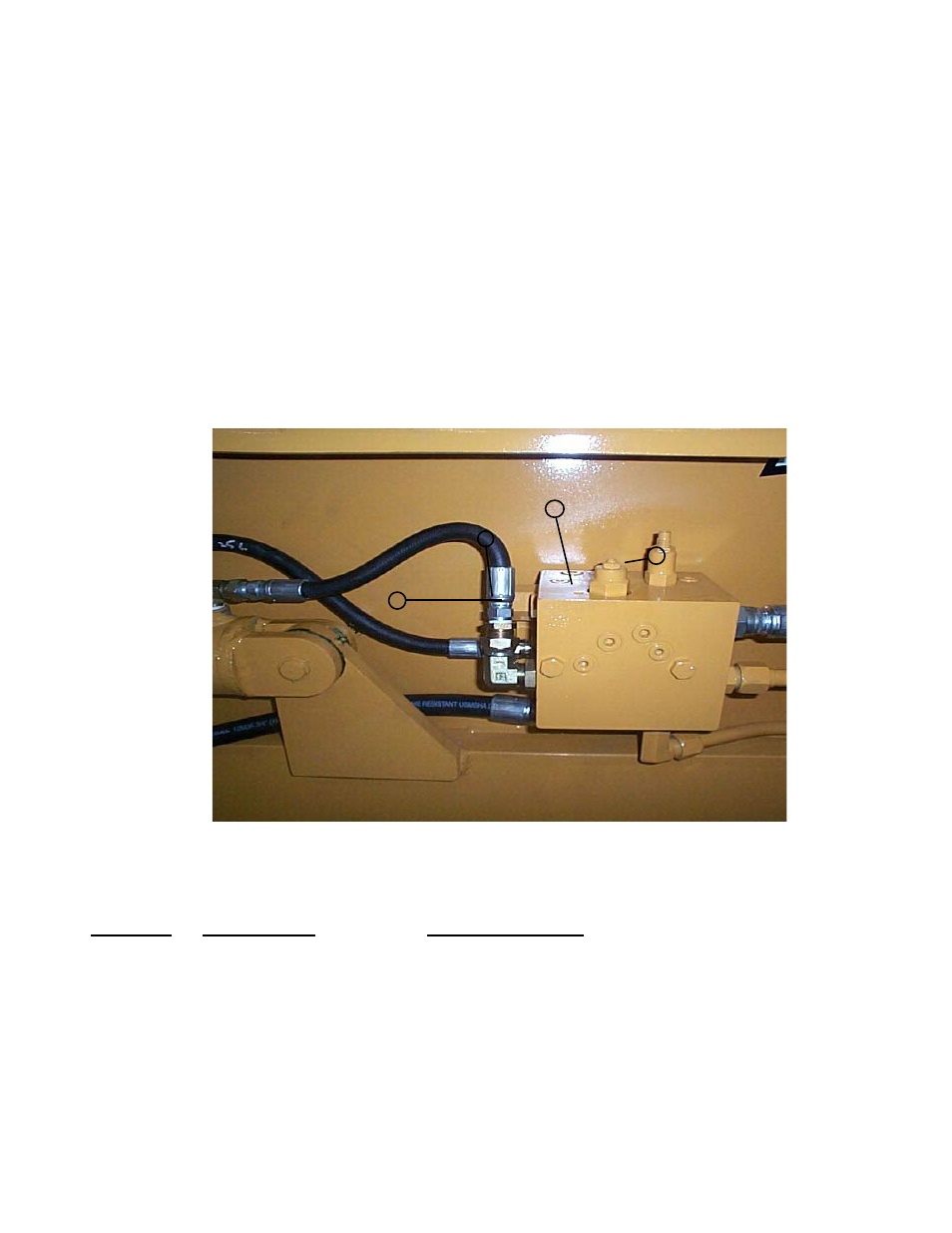

HYDRAULIC MANIFOLD ASSEMBLY
A125055
S.N. 20750 to 20853
ITEM # PART NO.
DESCRIPTION
1
A125055-01
DIRECTIONAL CONTROL VALVE
2
A125055-02
COUNTER BALANCE CARTRIDGE
3
A125055-03
SEQUENCE CARTRIDGE
4
A125055-04
CHECK VALVE
5
A125055
COMPLETE ASSEMBLY WITH ALL VALVES
