If you have 3 capscrew headcap refer to the next page.
APRON CYLINDER 4”x13”
Part #A125050
s.n. 20750 and above effective 06/03
1* OLD STYLE
The older apron cylinder can
be identified by 3/8” NPT ports
& 3 bolts on the headcap of the
gland.
2* NEW STYLE
The new style, effective 6/25/03,
has 7/8” o-ring base ports & the
gland is threaded into I.D. of the
barrel. Identified by the 2 holes on
the end of the cylinder.

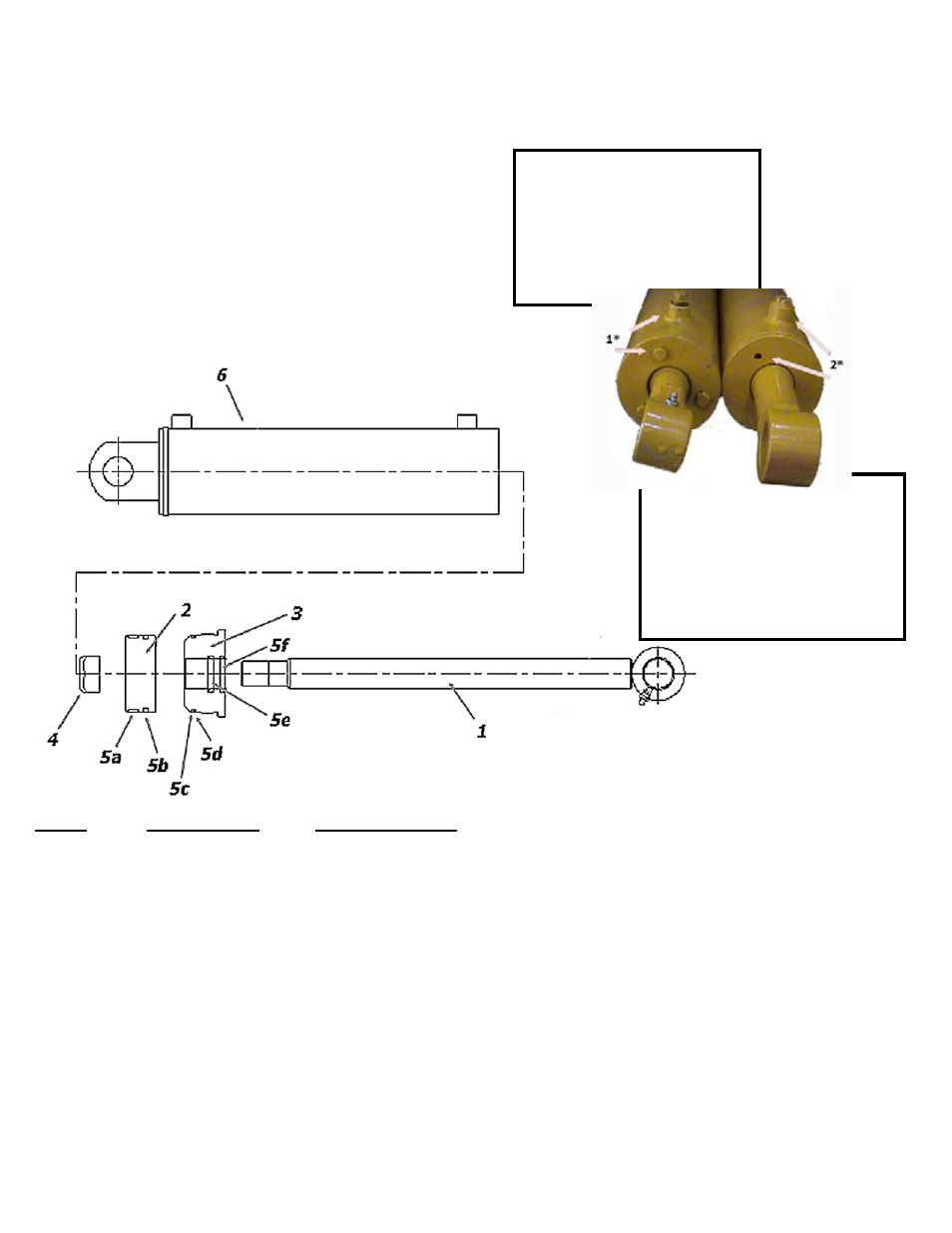

ITEM PART ITEM DESCRIPTION
1 A125050-01 Rod 1-3/4” with welded eye
2 A125050-02 Piston
3 A125050-03 Gland, Threaded
4 A125050-04 Lock Nut, 1-1/8” NF
5 A125050-05 Seal Kit, a-f
A125050-05a Nylon Wear Ring
A125050-05b FSP Seal
A125050-05c O-Ring
A125050-05d Backup Washer
A125050-05e Hallite Rod Seal
A125050-05f Snap-in Rod Wiper
